Connect to a TripSaver II Recloser
STEP 4. A Transceiver ID unique to each TripSaver II
recloser is needed to establish communications
between the computer and the recloser. The ID
consists of a 32-digit character string in the
format of:
"0019C900.00020000._ _ _ _ _ _ _ _ . _ _
_ _ _ _ _ _".
The TripSaver II Service Center Configuration
Software v1.10 will auto-detect the Transceiver
ID of TripSaver II reclosers with firmware
version 1.8 or 1.9. If connection difficulties are
encountered, or when connecting to a TripSaver
II recloser with firmware version 1.7 or earlier,
enter the Transceiver ID manually. The first 16
digits of the ID are pre-typed; only the last 16
digits must be entered.
The Transceiver ID for the TripSaver II
r e clo s er c a n b e obt a i ne d t h r ou g h t he
following methods:
Method 1: The Transceiver ID is embedded
in the QR code laser-etched onto the lower
housing of each TripSaver II recloser. See
Figure 11. Download a free QR scanner app to
a smart phone and scan the QR code to obtain
the Transceiver ID.
Method 2: Rotate the MODE-SELECTOR
lever to initiate the Display screens after the
TripSaver II recloser is powered up. The LCD
screen will begin to scroll. The first screen
displayed contains the Transceiver ID. See
Figure 12.
Note: This screen does not appear when
communication is disabled or when no screens
are added to the Display screen sequence.
Method 3: The Transceiver ID is also printed
on the back of the yellow "DO NOT DROP—
HANDLE WITH CARE" tag attached to each
TripSaver II recloser when it leaves S&C Electric
Company. See Figure 13.
12 12 S&C Instruction Sheet 461-508LD S&C Instruction Sheet 461-508LD

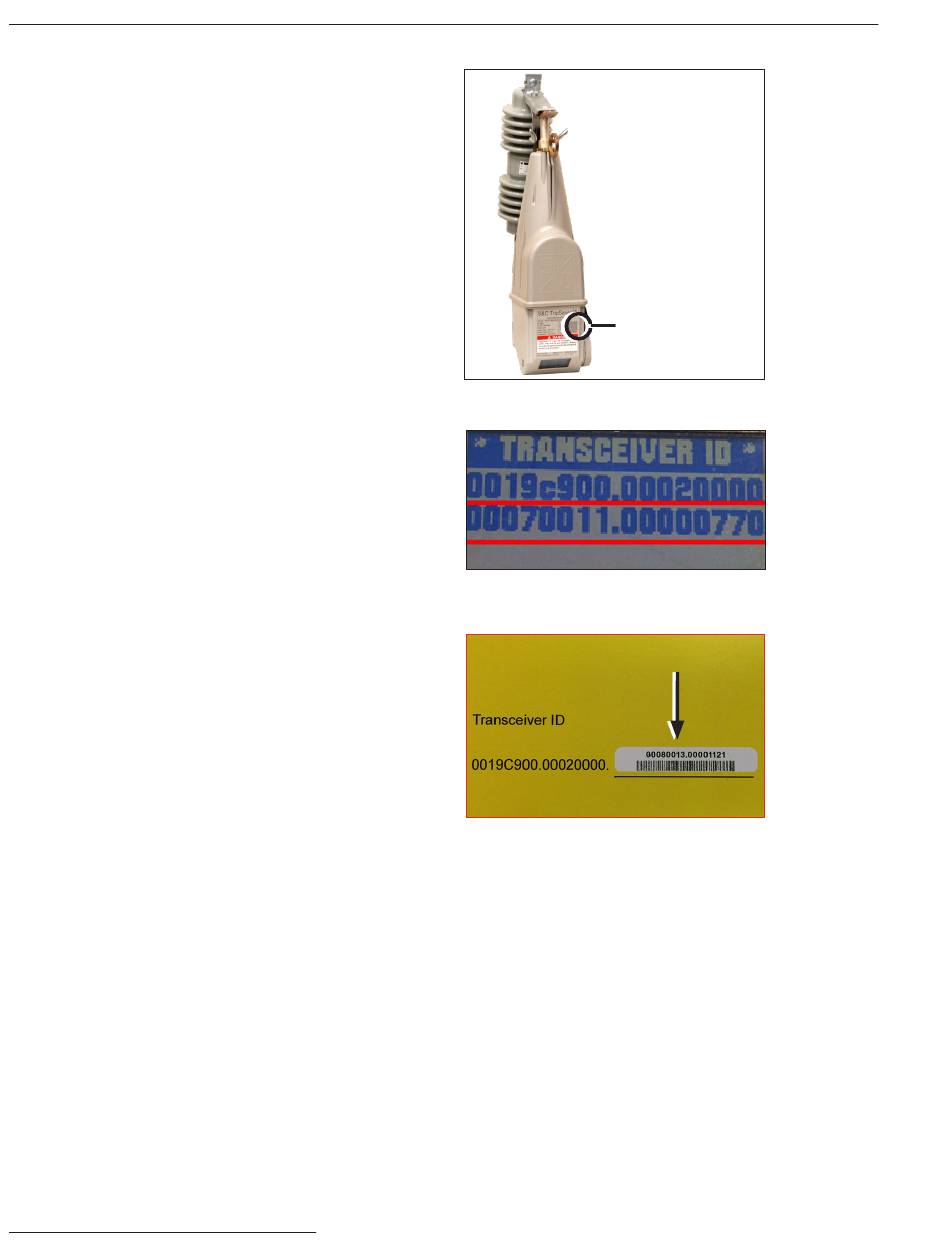

QR code
Figure 11. The location of the QR code.
Figure 12. Transceiver ID on the TripSaver
II recloser LCD screen.
Last 16 digits here
Figure 13. Transceiver ID on yellow
tag.
