Industrial Electronic Devices
PROFIBUS:

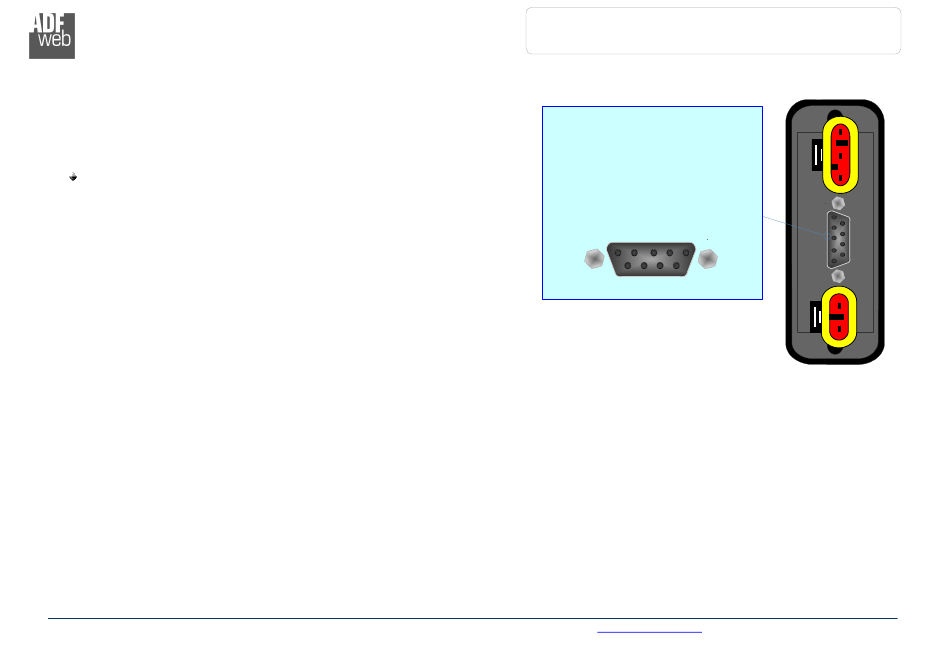

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined
like in the right figure.
Here some codes of cables:
Belden:
p/n
183079A
PROFIBUS Cable;
ADFweb.com Srl – IT31010 – Mareno – Treviso
-
Continuous
Armor
DataBus®
User Manual J1939 / PROFIBUS Slave
Document code: MN67437_ENG
Connector2:
PROFIBUS
(Isolated Port)
PIN3 = wire A
ISA/SP-50
PIN5 = GND (to Isolated Ground)
PIN6 = Positive wire
PIN8 = wire B
5 4 3 2 1
9 8 7 6
INFO:
www.adfweb.com
Revision 1.001
Page 9 of 27
Phone +39.0438.30.91.31
