2.3.30

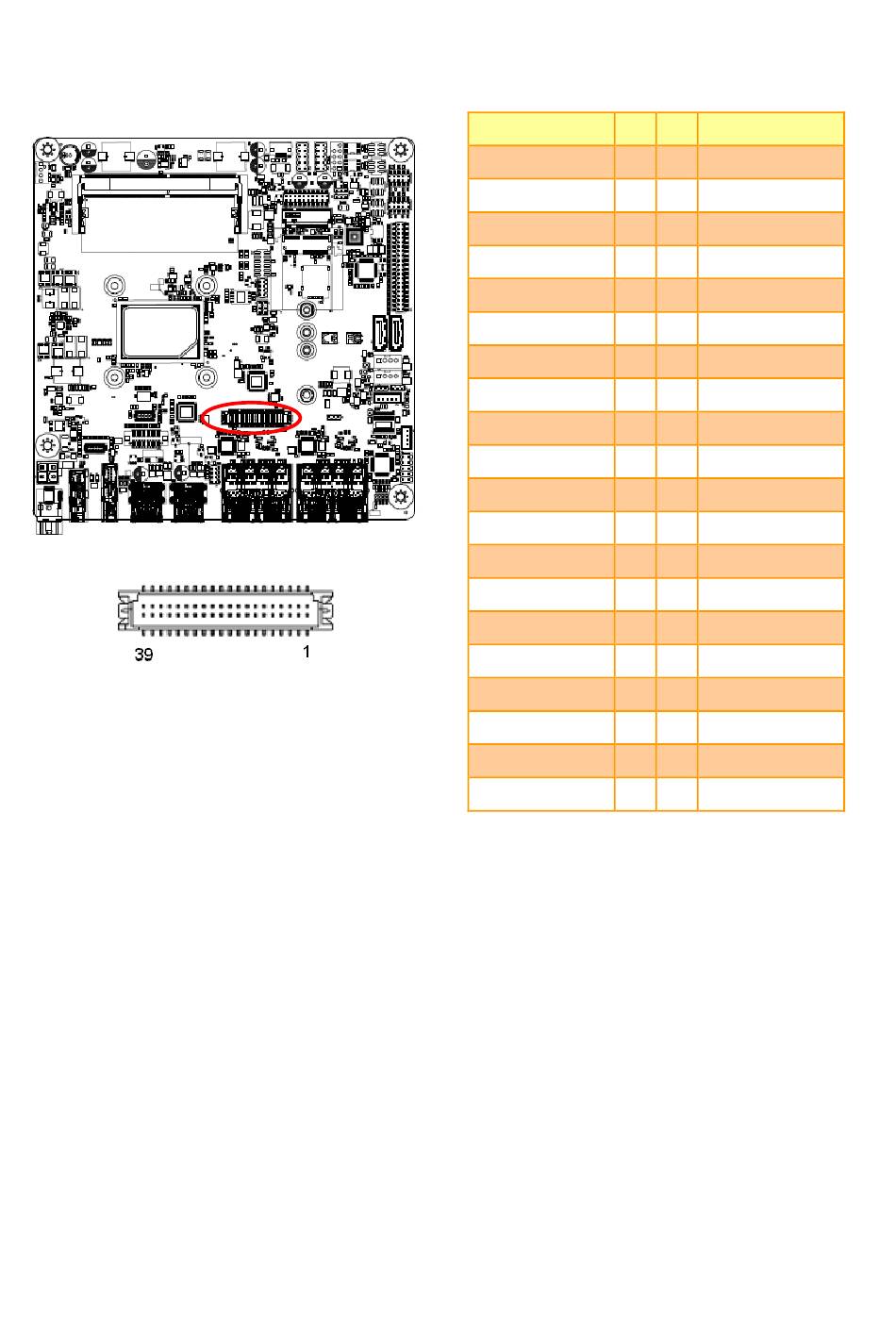

JLVDS connector (JLVDS1)

Signal PIN PIN
+V5_LVDS 2
+V5_LVDS 4
+V5_LVDS 6
GND 8
LVDS_DATA0_P 10
LVDS_DATA0_N 12
GND 14
LVDS_DATA2_P 16
LVDS_DATA2_N 18
GND 20
LVDS_DATA4_P 22
LVDS_DATA4_N 24
GND 26
LVDS_DATA6_P 28
LVDS_DATA6_N 30
GND 32
LVDS_CLK1_P 34
LVDS_ CLK1_N 36
GND 38
+V12_LVDS 40
EMX-EHLP User's Manual 35
User's Manual
Signal
1 + V3.3_LVDS
3 + V3.3_LVDS
5 GND
7 GND
9 LVDS_DATA1_P
11 LVDS_DATA1_N
13 GND
15 LVDS_DATA3_P
17 LVDS_DATA3_N
19 GND
21 LVDS_DATA5_P
23 LVDS_DATA5_N
25 GND
27 LVDS_DATA7_P
29 LVDS_DATA7_N
31 GND
33 LVDS_CLK2_P
35 LVDS_ CLK2_N
37 GND
39 +V12S_LVDS
