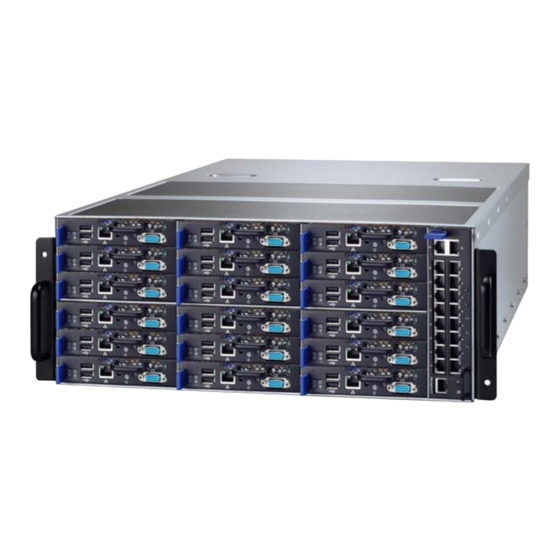

TYAN MicroServer FM65-B5531 Service Engineer's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

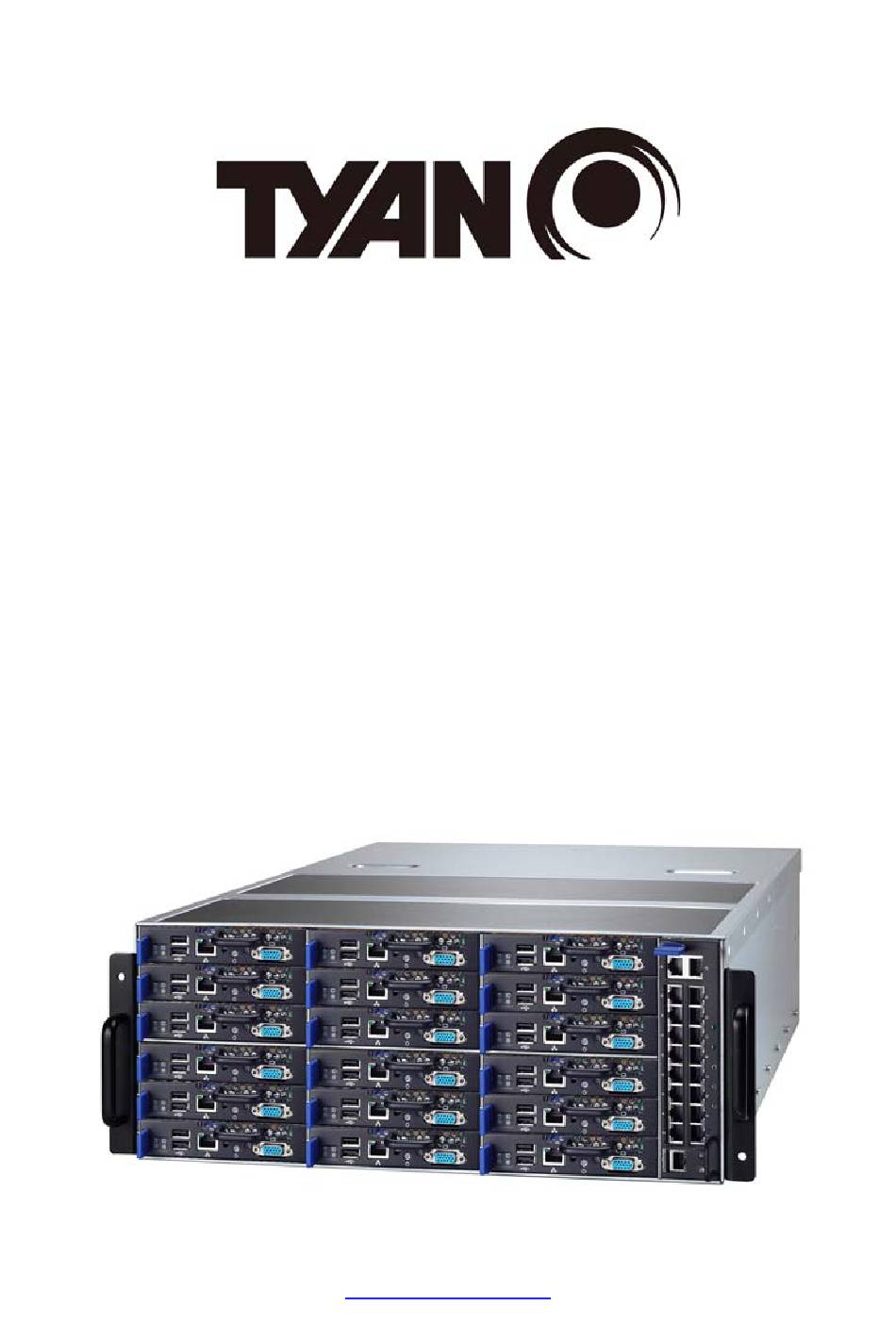

FM65-B5531
MicroServer Series
Service Engineer's Manual
1
http://www.tyan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MicroServer FM65-B5531 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN MicroServer FM65-B5531

Summary of Contents for TYAN MicroServer FM65-B5531

  • Page 1 FM65-B5531 MicroServer Series Service Engineer’s Manual http://www.tyan.com...
  • Page 2 http://www.tyan.com...
  • Page 3 Neither this manual, nor any material contained herein, may be reproduced without written consent of manufacturer. ® Copyright 2014 MiTAC International Corporation. All rights reserved. TYAN a registered trademark of MiTAC International Corporation. Version 1.0 Disclaimer Information contained in this document is furnished by MiTAC International Corporation and has been reviewed for accuracy and reliability prior to printing.
  • Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...
  • Page 5 About this Manual This manual is intended for experienced users and integrators with hardware knowledge of personal computers. It is aimed to provide you with instructions on installing your TYAN FM65-B5531. How this guide is organized This guide contains the following parts:...
  • Page 6 Safety and Compliance Information Before installing and using TYAN FM65-B5531, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.
  • Page 7 You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 8 · Make sure racks are coupled together if it is a multiple-rack installation. · Make sure the rack is level and stable before installing an appliance in the rack. · Make sure the leveling jacks are extended to the floor. http://www.tyan.com...
  • Page 9 If you do not ground the Green/Yellow tab, it can cause an electrical shock due to high leakage currents. · Do not place objects on AC power cords or cables. Arrange them so that no http://www.tyan.com...
  • Page 10 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – Liquid has been spilled on the product or an object has fallen into the product. – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...
  • Page 12 http://www.tyan.com...

  • Page 13: Table Of Contents

    Table of Contents Chapter 1: Overview............... 17     About the TYAN FM65-B5531 ..........17   Product Models ............... 17   Features .................. 18   Standard Parts List ..............22     1.4.1 Box Contents..............22   1.4.2 Accessories ..............22  ...
  • Page 14 Watchdog Timer Configuration ........110   Boot ..................111   5.4.1 CSM16 Parameters ............113   5.4.2 CSM Parameters ............114   5.4.3 Delete Boot Option ............116   Security ................. 117   5.6.1 Secure Boot Menu ............118 http://www.tyan.com...
  • Page 15 Chapter 6: Diagnostics ..............127     Flash Utility ................127   AMIBIOS Post Code (Aptio) ..........128 Appendix I: Cable Connection Tables ........135   Appendix II: FRU Parts Table ............137   Appendix III: Technical Support ..........139   http://www.tyan.com...
  • Page 16 NOTE http://www.tyan.com...

  • Page 17: Chapter 1: Overview

    FM65-B5531 in a version that can support up to thirty-six 2.5” fixed hard drives. The FM65-B5531 uses TYAN’s latest chassis featuring a robust structure and a solid mechanical enclosure. All of this provides FM65-B5531 the power and flexibility to meet the needs of nowadays server application.

  • Page 18: Features

    Features TYAN FM65B5531 (B5531F65X18-160PV2R) Form Factor 4U Rackmount Frame w/ 18x Blades Gross Weight 55 kg Chassis Model FM65 System Dimension (D x W x 25.6" x 17.32" x 6.93" (651.2 x 440 x 176.3mm) Motherboard S5531GM2N Buttons (1) PWR...
  • Page 19 RoHS 6/6 Compliant Yes Barebone (1) FM65-B5531 Barebone Manual (1) User's manual / (1) Quick Installation Guide Package Contains Installation CD (1) TYAN installation CD Cable Power Cord (3) US type power cord / (3) EU type power cord http://www.tyan.com...
  • Page 20 TYAN FM65B5531 (B5531F65X18-160PV2R-HE) Form Factor 4U Rackmount Frame w/ 18x Blades Gross Weight 55 kg Chassis Model FM65 System Dimension (D x W x 25.6" x 17.32" x 6.93" (651.2 x 440 x 176.3mm) Motherboard S5531GP2NR-HE Buttons (1) PWR Front Panel (per...
  • Page 21 RoHS 6/6 Compliant Yes Barebone (1) FM65-B5531 Barebone Manual (1) User's manual / (1) Quick Installation Guide Package Contains Installation CD (1) TYAN installation CD Cable Power Cord (3) US type power cord / (3) EU type power cord http://www.tyan.com...

  • Page 22: Standard Parts List

    If any items are missing or appear damaged, contact your retailer or browse to TYAN’s website for service: http://www.tyan.com The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. Accessory Kit (3) US Power Cord ...

  • Page 23: About The Product

    About the Product The following views show you the product. 1.5.1 System Front View Description 1 ~ 18 Compute Blades 18-port networking pass-through module for data uplink http://www.tyan.com...

  • Page 24: System Rear View

    1.5.2 System Rear View Description 1 ~ 8 System Fan Module P1/P2/P3 Power Supply Module http://www.tyan.com...

  • Page 25: About The Blade

    Red for System Health 3. System Health Red / Blue Alert: Red solid on / ID LED Normal: Off ID/Alert active at same time: Blue/Red switch blinking Power on / Green solid on 7. Power LED Green Power off / off http://www.tyan.com...

  • Page 26: Blade Top View

    1.6.2 Blade Top View Compute Blade Top View Description Memory Slots CPU Socket SATA Connector for 2.5” SATA3.0/SATA2.0 HDD NOTE: The compute blade is pre-installed with S5531 mainboard. http://www.tyan.com...

  • Page 27: Pass-Through Module Top View

    1.6.3 Pass-through Module Top View Description RJ45 1G Base-T LAN Ports (x18) PCI-E x16 gold finger to Mid-Plane LED Cable NOTE: The pass-through module is pre-installed with M1902F65-CMMPT Board. http://www.tyan.com...

  • Page 28: Blade Block Diagram

    1.6.4 Blade Block Diagram Compute Blade Block Diagram NOTE: The M1247F65-BP is also known as Mid-Plane. http://www.tyan.com...

  • Page 29: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 30: Precautions

    Metallic parts or metal flakes can cause electrical shorts. CAUTION: Please note that the following illustrations may not look exactly like the rackmount server you purchased. Therefore, the illustrations should be held for your reference only. http://www.tyan.com...

  • Page 31: Installing Motherboard Components

    Follow these instructions to install (2) two 2.5” hard drives for a single compute blade. Warning!!! Always install the hard disk drive to the chassis after the chassis is secured on the rack. Push the latch to pull the compute blade out. http://www.tyan.com...
  • Page 32 Unscrew to take out the HDD cage. http://www.tyan.com...
  • Page 33 Place a 2.5" hard drive into the HDD tray and secure the HDD with 4 HDD screws. Install the HDD back into the compute blade. Push the latch to reinsert the HDD tray into the chassis. http://www.tyan.com...

  • Page 34: Installing The Cpu And Heatsink

    Follow the steps below on installing CPUs and CPU heatsinks. Locate the CPU socket. Pull the lever slightly away from the socket and then push it to a fully open position. Push the CPU socket cover to a fully open position. http://www.tyan.com...
  • Page 35 Place the CPU into the socket and make sure that the gold arrow is located in the right direction. Take out the protection cap after installing the CPU. Close the CPU socket cover and press the lever down to secure the CPU. http://www.tyan.com...
  • Page 36 Position the heatsink on top of the CPU and secure it with 4 screws. Repeat the procedures mentioned earlier to install the CPU and heatsink for other compute blades. http://www.tyan.com...

  • Page 37: Installing The Memory

    Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. Follow the recommended memory population table to install the other memory modules. http://www.tyan.com...
  • Page 38 1. √ indicates a populated DIMM slot. 2. Use paired memory installation for max performance. 3. Populate the same DIMM type in each channel, specifically - Use the same DIMM size - Use the same # of ranks per DIMM http://www.tyan.com...

  • Page 39: Rack Mounting

    Sliding rails Screw Pack 2.2.1 Installing the Server in a Rack Follow these instructions to mount the TYAN FM65-B5531 into an industry standard 19” rack. NOTE: Before mounting the TYAN FM65-B5531 in a rack, ensure that all internal components have been installed and that the unit has been fully tested.

  • Page 40: Installing The Inner Rails To The Chassis

    2.2.2 Installing the inner Rails to the Chassis Draw out the inner rails from the rail assembly. Attach the inner rails to both sides of the chassis. Push the rails forwards to lock the rails in place. http://www.tyan.com...

  • Page 41: Installing The Outer Rails To The Rack

    Secure the outer rail to the rack using 4 M5 screws and 4 washers (2 sets front / 2 sets rear) for each side. Secure the rails to the rack as shown. Repeat Step 2 if you want to install more chassis to the rack. http://www.tyan.com...

  • Page 42: Rack Mounting The Server

    To make the installation easier, we suggest that you remove all blades before you insert the chassis to the rack. Lift the chassis and then insert the inner slide rails into the outside rails. Push the chassis into the rack. Screw the chassis to the rack. http://www.tyan.com...
  • Page 43 Insert the blades into the chassis. http://www.tyan.com...
  • Page 44 Press the locking tabs on both sides of the chassis to pull the chassis out. Note: To avoid injury, it is strongly recommended that two people lift the TYAN FM65-B5531 into the place while a third person screws it to the rack. http://www.tyan.com...

  • Page 45: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the S5531 Motherboard, M1247F65-BP HDD Backplane Board, M1258F65-BP6-4 Backplane Board, M1902F65-CMMPT Pass-through Blade Board, M1608F65-D-PDB Power Distribution Board, System Fan and Power Supply Unit etc. 3.0.2 Disassembly Flowchart The following flowchart outlines the disassembly procedures. http://www.tyan.com...

  • Page 46: Removing The Cover

    Removing the Cover Follow these instructions to remove the FM65-B5531 chassis cover. Unscrew the top cover. Slide the top cover off. Remove the top cover from the chassis. http://www.tyan.com...

  • Page 47: Replacing The Hdd Backplane Board

    Replacing the HDD Backplane Board Follow these instructions to replace the M1247F65-BP SATA/SAS HDD Backplane Board. Unscrew the HDD BP Board. http://www.tyan.com...
  • Page 48 Pull the blades slightly away from the HDD BP Board. Disconnect all cables attached to the HDD BP Board. http://www.tyan.com...
  • Page 49 Take out the HDD BP Board. Unscrew to replace a new HDD BP Board. Reinstall the HDD BP Board into the chassis following the steps in reverse. http://www.tyan.com...

  • Page 50: Hdd Bp Board Features

    Front view: Rear view: Form Factor W435 x L165 (mm), 12-layer PCB (2) PCI-E x16 Slot for Pass-through Module (18) PCI-E x8 Slot for compute blade Specifications (1) 2x15-pin FAN Connector (1) 2x5-pin PDB Signal Connector (4) 2x6-pin Power Connector http://www.tyan.com...

  • Page 51: Connector Pin Definitions

    J39: 2x5-pin PDB Signal Connector Definition Definition BMC_PSMI_DATA BMC_PSMI_CLK BMC_GPIOB3_PSU_OK BMC_GPIOB2_SMBALERT_N BMC_GPIOB4_PMBUS_EN J40: 2x15-pin FAN Connector Definition Definition FAN1_VCC FAN1_VCC FAN1_VCC FAN1_VCC FAN1_VCC FAN1_VCC FAN1_VCC FAN1_VCC FAN7_PWM FAN7_TACH FAN8_PWM FAN8_TACH FAN1_PWM FAN1_TACH FAN2_PWM FAN2_TACH FAN3_PWM FAN3_TACH FAN4_PWM FAN4_TACH FAN5_PWM FAN5_TACH FAN6_PWM FAN6_TACH http://www.tyan.com...

  • Page 52: Replacing The Power Distribution Board

    Replacing the Power Distribution Board Follow these instructions to replace the M1608F65-D-PDB Power Distribution Board. Remove the power supply modules and unscrew the Power Supply Cage. Disconnect all power cables. http://www.tyan.com...
  • Page 53 Push the Power Supply Cage backwards. Unscrew the Power Supply Cage. Left Right Take out the front cover. http://www.tyan.com...
  • Page 54 Unscrew the power distribution board to replace a new one. Follow the steps described earlier in reverse order to reinstall the power distribution board into the chassis. http://www.tyan.com...

  • Page 55: Power Distribution Board Features

    3.3.1 Power Distribution Board Features Front View Rear View Form Factor W176.5 x L150 (mm), 4-layer PCB (3) 50-pin PSU Power Connector (4) 2x6-pin Power Connector Connectors (2) 2x4-pin Power Connector (1) 2x5-pin Backplane Connector http://www.tyan.com...

  • Page 56: Pin Definitions

    +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V PWOK +12VSB LPO_N ACFAIL PSOFF PSKILL SMBALERT W_PROT RETURN_S 12LS 12VS PRESENT_N J1: 2×5-Pin Backplane Connector Definition Definition BMC_PSMI_DATA BMC_PSMI_CLK PSU_OK PMBUS_SMBALERT# PMBUS_EN PMBUS_3V http://www.tyan.com...
  • Page 57 BP_PWR1/BP_PWR2/BP_PWR3/BP_PWR4: 2×6-Pin Power Connector Definition Definition P12V P12V P12V P12V P12V P12V PW1/PW2: 2×4-Pin Power Connector Definition Definition P12V P12V P12V P12V http://www.tyan.com...

  • Page 58: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace the system fan. Push the latch in the direction as the arrow shows to pull out the failed fan. http://www.tyan.com...
  • Page 59 Unscrew the fan cage and release the snap rivets. Remove the fan module from the fan cage. http://www.tyan.com...
  • Page 60 Use a screw driver to gently press the locking latch and push the tab in the direction as the arrow shows to release. Prepare a new fan to replace. Follow the steps described earlier in reverse order to reinstall the fan module into the fan cage. http://www.tyan.com...

  • Page 61: Replacing The Blade Boards

    Follow these instructions to replace the blade boards. Push the latch to pull out the blade. Remove all components on the compute blade, including the processor, heat-sink, hard drive and hard drive cage. Unscrew the board and replace with a new one. http://www.tyan.com...
  • Page 62 Follow the procedures described earlier in reverse order to reinsert the blade back into the chassis. http://www.tyan.com...

  • Page 63: Blade Board Features

    3.5.1 Blade Board Features M1902F65-CMMPT for Pass-through Module Form Factor W161.5 x L364.5 (mm), 6-layer PCB (18) RJ45 10G Base-T LAN Ports Connectors (1) PCI-E x16 Golden Finger to Mid-Plane http://www.tyan.com...
  • Page 64 S5531 for Compute Blade Form Factor W118.38 x L363.6 (mm), 8-layer PCB (2) SATA Connector (1) Clear CMOS Jumper Connectors (1) SATA Redriver IC Enable/Disable Jumper NOTE: Please refer to Chapter 4 for details on the S5531. http://www.tyan.com...

  • Page 65: Replacing The Power Supply

    Press the latch to pull the power supply out. After replacing a new power supply, press the latch to push the power supply back into the chassis. http://www.tyan.com...
  • Page 66 NOTE http://www.tyan.com...

  • Page 67: Chapter 4: Mainboard Information

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 68: Board Image

    Board Image S5531 This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 69: Block Diagram

    Block Diagram S5531 Block Diagram http://www.tyan.com...

  • Page 70: Mainboard Mechanical Drawing

    Mainboard Mechanical Drawing http://www.tyan.com...

  • Page 71: Board Parts, Jumpers And Connectors

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. Jumpers & Connectors Jumper/Connector...
  • Page 72 http://www.tyan.com...
  • Page 73 J3: ME FW Update Mode Jumper Pin 1-2 Closed: Normal Mode (Default) Pin 2-3 Closed: ME in Force Update Mode J10: Flash Descriptor Security Override Header PU: Security Measures Defined By BIOS Are Over-Written PD: Security Measures Defined Are Set (Default) http://www.tyan.com...

  • Page 74: Thermal Interface Material

    CPU lid (applying too much will actually reduce the cooling). NOTE: Always check with the manufacturer of the heat sink & processor to ensure that the thermal interface material is compatible with the processor and meets the manufacturer’s warranty requirements. http://www.tyan.com...

  • Page 75: Tips On Installing Motherboard In Chassis

    Be especially careful to look for extra stand-offs. If there are any stand-offs present that are not aligned with a mounting hole on the motherboard, it will likely short components on the back of the motherboard when installed. This will cause malfunction and/or damage to your motherboard. http://www.tyan.com...
  • Page 76 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MiTAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...

  • Page 77: Installing The Memory

    Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard. The following pictures show common types of DDR3 memory modules.

  • Page 78: Finishing Up

    In the rare circumstance that you have experienced difficulty, you can find help by asking your vendor for assistance. If they are not available for assistance, please find setup information and documentation online at our website or by calling your vendor’s support line. http://www.tyan.com...

  • Page 79: Chapter 5: Bios Setup

    The table below shows how to navigate in the setup program using the keyboard. Function Left/Right Arrow Keys Change from one menu to the next Up/Down Arrow Keys Move between selections Enter Open highlighted section PgUp/PgDn Keys Change pages Change options Exit http://www.tyan.com...

  • Page 80: Getting Help

    The following pages provide the details of BIOS menu. Please be noticed that the BIOS menu are continually changing due to the BIOS updating. The BIOS menu provided are the most updated ones when this manual is written. Please visit TYAN’s website at http://www.tyan.com for the information of BIOS updating.

  • Page 81: Main Menu

    It displays BIOS related information. Memory Information This displays the memory related information. System Date Adjust the system date. MM (Months): DD (Days): YYYY (Years) System Time Adjust the system clock. HH (24 hours format): MM (Minutes): SS (Seconds) Access Level Read only. http://www.tyan.com...

  • Page 82: Advanced Menu

    PCI, PCI-X and PCI Express Settings. ACPI Settings System ACPI Parameters. S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm. CPU Configuration CPU Configuration Parameters. SATA Configuration SATA Devices Configuration. USB Configuration USB Configuration Parameters. http://www.tyan.com...
  • Page 83 Hardware Health Configuration Hardware Health Configuration Parameters. Super IO Configuration System Super IO Chip Parameters. Serial Port Console Redirection Serial Port Console Redirection. Network Stack Configuration Network Stack Settings. Onboard Device Configuration Onboard Device Configuration. http://www.tyan.com...

  • Page 84: Pci Subsystem Settings

    5.3.1 PCI Subsystem Settings Single Root I/O Virtualization Enable or disable Single Root I/O Virtualization. Enabled / Disabled http://www.tyan.com...

  • Page 85: Acpi Settings

    Enable or disable System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some OS. Enabled / Disabled ACPI Sleep State Select ACPI sleep state the system will enter when the SUSPEND button is pressed. S3 only (Suspend to RAM) / Suspend Disabled http://www.tyan.com...

  • Page 86: S5 Rtc Wake Settings

    Enable or disable System wake on alarm event. When enabled, System will wake on the hr:min:sec specified. Disabled / Enabled Wake System with Dynamic Time Enable or disable System wake on alarm event. When enabled, System will wake on the current time + Increased minute(s). Disabled / Enabled http://www.tyan.com...

  • Page 87: Cpu Configuration

    When disabled only one thread per enabled core is enabled. Enabled / Disabled Active Processor Cores Number of cores to enable in each processor package. All / 1 / 2 / 3 Limit CPUID Maximum Disabled for Windows XP. Disabled / Enabled http://www.tyan.com...
  • Page 88 Enable or disable CPU C states. Enabled / Disabled Enhanced C1 State Enhanced C1 state. Enabled / Disabled CPU C3 Report Enable/Disable CPU C3 Report to OS. Enabled / Disabled CPU C6 Report Enable/Disable CPU C6 Report to OS. Enabled / Disabled http://www.tyan.com...
  • Page 89 CPU C7 Report Enable/Disable CPU C7 Report to OS. CPU C7s / CPU C7 / Disabled Package C State Limit Select Package C State Limit. Auto / C0/C1 / C2 / C3 / C6 / C7 / C7s http://www.tyan.com...

  • Page 90: Sata Configuration

    Identify the SATA Port is connected to Solid State Drive or Hard Disk Drive. Hard Disk Drive / Solid State Drive Spin Up Device On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device. Disabled / Enabled http://www.tyan.com...

  • Page 91: Usb Configuration

    USB Mass Storage Driver Support Enable/disable USB Mass Storage Driver Support. Enabled / Disabled Port 60/64 Emulation Enable I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. Enabled / Disabled http://www.tyan.com...
  • Page 92 Maximum time the device will take before it properly reports itself to the Host Controller. AUTO uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Auto / Manual http://www.tyan.com...

  • Page 93: Hardware Health Configuration

    5.3.7 Hardware Health Configuration 5.3.7.1 Sensor Data Register Monitoring When you enter the Sensor Data Register Monitoring submenu, you will see the following dialog window pop out. Please wait 8~10 seconds. http://www.tyan.com...
  • Page 94 NOTE: SDR can not be modified. Read only. http://www.tyan.com...

  • Page 95: Super Io Configuration

    5.3.8 Super IO Configuration Super IO Chip Read only. http://www.tyan.com...
  • Page 96 / IO=3F8h, IRQ=3, 4, 5, 6, 7, 10, 11, 12; / IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; / IO=3E8h, IRQ=3, 4, 5, 6, 7, 10, 11, 12; / IO=2E8h, IRQ=3, 4, 5, 6, 7, 10, 11, 12; http://www.tyan.com...

  • Page 97: Serial Port Console Redirection

    Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Console redirection enable or disable. Disabled / Enabled Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. http://www.tyan.com...
  • Page 98 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 99 Redirection after BIOS POST The settings specify if BootLoader is selected than Legacy console redirection is disabled before booting to Legacy OS. Default value is Always Enable which means Legacy Console Redirection is enabled for Legacy OS. Always Enable / BootLoader http://www.tyan.com...
  • Page 100 115200 / 9600 / 19200 / 57600 Flow Control Flow Control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the http://www.tyan.com...
  • Page 101 ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. None / Hardware RTS/CTS / Software Xon/Xoff Data Bits / Parity / Stop Bits Read only. http://www.tyan.com...

  • Page 102: Network Stack Configuration

    5.3.10 Network Stack Configuration Network Stack Read only. NOTE: If you want to support UEFI PXE features including UEFI Network Stack and UNDI Driver, please select PXE OpROM Policy to “UEFI Only”. http://www.tyan.com...

  • Page 103: Onboard Device Configuration

    Enable or disable Intel LAN (I350). Enabled / Disabled LAN1 OPROM Intel LAN OPROM (B2:D0:F0) – Backplane Connection. Disabled / PXE / iSCSI NOTE: The iSCSI function is only supported in LAN1. LAN2 OPROM Intel LAN OPROM (B2:D0:F1). Disabled / PXE http://www.tyan.com...

  • Page 104: Chipset Menu

    Chipset Menu PCH-IO Configuration PCH Parameters. System Agent (SA) Configuration System Agent (SA) Parameters. Watchdog Timer Configuration Watchdog Timer Configuration. http://www.tyan.com...

  • Page 105: Pch-Io Configuration

    5.4.1 PCH-IO Configuration SLP_S4 Assertion Width Select a minimum assertion width of the SLP_S4# signal. 4-5 Seconds / Disabled / 1-2 Seconds / 2-3 Seconds / 3-4 Seconds http://www.tyan.com...
  • Page 106 5.4.1.1 USB Configuration EHCI1 Control the USB EHCI (USB2.0) functions. One EHCI controller must always be enabled. Enabled / Disabled http://www.tyan.com...

  • Page 107: System Agent (Sa) Configuration

    5.4.2 System Agent (SA) Configuration VT-d Check to enable VT-d function on MCH. Enabled / Disabled http://www.tyan.com...
  • Page 108 Aperture Size Select the Aperture Size 256MB / 128 MB / 512 MB DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. 32M / 64M / 128M / 256M / 512M / 1024M http://www.tyan.com...
  • Page 109 Maximum value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. Dynamic / 1GB / 1.25GB / 1.5GB / 1.75GB / 2GB / 2.25GB / 2.5GB / 2.75GB / 3GB / 3.25GB http://www.tyan.com...

  • Page 110: Watchdog Timer Configuration

    Disabled / Post / OS / Power On NOTE: Watchdog Timer will not appear when Watchdog Mode is set to [Disabled]. Watchdog Timer Watchdog Timer Help. 2 MINS / 4 MINS / 6 MINS / 8 MINS / 10 MINS http://www.tyan.com...

  • Page 111: Boot

    Quiet Boot Enable or disable Quiet Boot option. Disabled / Enabled Endless Boot Enable or disable Endless Boot. Disabled / Enabled Wait For 'ESC' If Error Wait for 'ESC' key to be pressed if error occurs. Enabled / Disabled http://www.tyan.com...
  • Page 112 Boot Option #1 Select the first boot device. Device Name / Disabled http://www.tyan.com...

  • Page 113: Csm16 Parameters

    Set display mode for Option ROM. Force BIOS / Keep Current INT19 Trap Response BIOS reaction on INT19 trapping by Option ROM: Immediate --- execute the trap right away; Postponed --- execute the trap during the legacy boot. Immediate / Postponed http://www.tyan.com...

  • Page 114: Csm Parameters

    Legacy only / UEFI only Launch Storage OpROM Policy Control the execution of UEFI and Legacy Storage OpROM. Legacy only / UEFI only Launch Video OpROM Policy Control the execution of UEFI and Legacy Video OpROM. Legacy only / UEFI only http://www.tyan.com...
  • Page 115 Other PCI device ROM priority For PCI devices other than Network, Mass storage or Video defines which OpROM to launch. Legacy OpROM / UEFI OpROM http://www.tyan.com...

  • Page 116: Delete Boot Option

    5.4.3 Delete Boot Option Delete Boot Option Remove an EFI boot option from the boot order. Select one to Delete / Device Name http://www.tyan.com...

  • Page 117: Security

    Confirm New Password window will pop out to ask for confirmation. User Password Set user password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation. http://www.tyan.com...

  • Page 118: Secure Boot Menu

    1. System running in User Mode with enrolled Platform Key (PK) 2. CSM function is disabled Disabled / Enabled Secure Boot Mode Secure Boot mode selector. “Custom” Mode enables users to change Image Execution policy and manage Secure Boot Keys. Custom / Standard http://www.tyan.com...
  • Page 119 EFI_SIGNATURE_LIST) to a file with matching name on selected file system’s root folder. Platform Key (PK) / Key Exchange Key (KEK) / Authorized Signatures / Authorized TimeStamps / Forbidden Signatures Read only. Delete PK (KEK/DB/DBT/DBX) Delete the Variable from NVRAM. Removing PK will reset System to Setup Mode. http://www.tyan.com...
  • Page 120 2. EFI Time-Based Authenticated Variable Append KEK (DB/DBT/DBX) Insert Factory Default Keys or load from a file formatted as: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST, b) EFI_CERT_X509 (DER encoded), c) EFI_CERT_RSA2048 (bin), d) EFI_CERT_SHA256 (bin) 2. EFI Time-Based Authenticated Variable http://www.tyan.com...

  • Page 121: Server Management

    Server Management Press <Enter> to change the SEL event log configuration. Enable/Disable interfaces to communicate with BMC. http://www.tyan.com...

  • Page 122: System Event Log

    Choose options for reactions to a full SEL. Do Nothing / Erase Immediately Log EFI Status Codes Disable the logging of EFI Status Codes or log only error code or only progress code or both. Both / Disabled / Error Code / Progress Code http://www.tyan.com...

  • Page 123: Bmc Network Configuration

    BMC). Current setting option will not modify any BMC network parameters during BIOS phase. Current Setting / Static / DHCP IP Address Source / Station IP Address / Subnet Mask / Station MAC Address / Router IP Address / Router MAC Address Read only. http://www.tyan.com...

  • Page 124: Save & Exit

    Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Save Options Read only. Save Changes Save changes done so far to any of the setup options. http://www.tyan.com...
  • Page 125 Restore Defaults Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Boot Override Read only. http://www.tyan.com...
  • Page 126 NOTE http://www.tyan.com...

  • Page 127: Chapter 6: Diagnostics

    BIOS flash failure, you must contact your dealer for a replacement BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.

  • Page 128: Amibios Post Code (Aptio)

    South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading 0x06 Microcode loading 0x07 AP initialization after microcode loading 0x08 North Bridge initialization after microcode loading 0x09 South Bridge initialization after microcode loading 0x0A OEM initialization after microcode loading 0x0B Cache initialization http://www.tyan.com...
  • Page 129 Reserved for ASL (see ASL Status Codes section below) 0x31 Memory Installed 0x32 CPU post-memory initialization is started 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection http://www.tyan.com...
  • Page 130 OS S3 wake vector call 0xE4 – 0xE7 Reserved for future AMI progress codes S3 Resume Error Codes 0xE8 S3 Resume Failed 0xE9 S3 Resume PPI not Found 0xEA S3 Resume Boot Script Error 0xEB S3 OS Wake Error http://www.tyan.com...
  • Page 131 North Bridge DXE initialization (North Bridge module specific) 0x6D North Bridge DXE initialization (North Bridge module specific) 0x6E North Bridge DXE initialization (North Bridge module specific) 0x6F North Bridge DXE initialization (North Bridge module specific) 0x70 South Bridge DXE initialization is started http://www.tyan.com...
  • Page 132 Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started 0xA5 SCSI Reset 0xA6 SCSI Detect 0xA7 SCSI Enable 0xA8 Setup Verifying Password 0xA9 Start of Setup http://www.tyan.com...
  • Page 133 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available DXE Beep Codes None ACPI/ASL Checkpoints Status Code Description 0x01 System is entering S1 sleep state http://www.tyan.com...
  • Page 134 System is waking up from the S3 sleep state 0x40 System is waking up from the S4 sleep state 0xAC System has transitioned into ACPI mode. Interrupt controller is in PIC mode. 0xAA System has transitioned into ACPI mode. Interrupt controller is in APIC mode. http://www.tyan.com...

  • Page 135: Appendix I: Cable Connection Tables

    → 2.PDB Control Cable M1247F65-BP Backplane to M1608F65-D PDB Board M1247 Connect to M1608 PDB Signal → connector(J39) 3. Power Cables M1247F65-BP Backplane to M1608F65-D PDB Board M1247 Connect to M1608 → BP_PW1 → BP_PW2 → BP_PW3 → BP_PW4 http://www.tyan.com...
  • Page 136 4. LED Cable M1902F65-CMMPT to LED LED Cable Connect to M1902F65-CMMPT → http://www.tyan.com...

  • Page 137: Appendix Ii: Fru Parts Table

    A/C Power Cord, L=1830mm, EU type CCBL-0300 332810000281 Power Supply CPSU-0590 471100000061 DELTA, DPS-800NB B TF-FAN; 12V, 9GV0812P1G041, 2BALL, 3.8A, 10200RPM, 65dBA, 80X80X38mm, WIRE LENGTH FRU-TS-0030 336252012400 28MM, 4PIN(HEADER 2*2) AL/CU, Heatsink 1155-CPU-1U-SPECIAL-PASSIVE-HEATSINK, FRU-TH-0040 343T46700001 98X73.1X15MM, SCREW Rack Mounting CRAL-0170 340786900010 Slide Rail Kit http://www.tyan.com...
  • Page 138 NOTE http://www.tyan.com...

  • Page 139: Appendix Iii: Technical Support

    By offering plenty of options for users, MiTAC serves multiple market segments with the industry’s most competitive services to support them. Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the POST codes section of this manual.
  • Page 140 (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. TYAN® FM65-B5531 Service Engineer’s Manual V1.0 Document No.: D2266-100 http://www.tyan.com...
