MAESTRO-812DSP-DSD

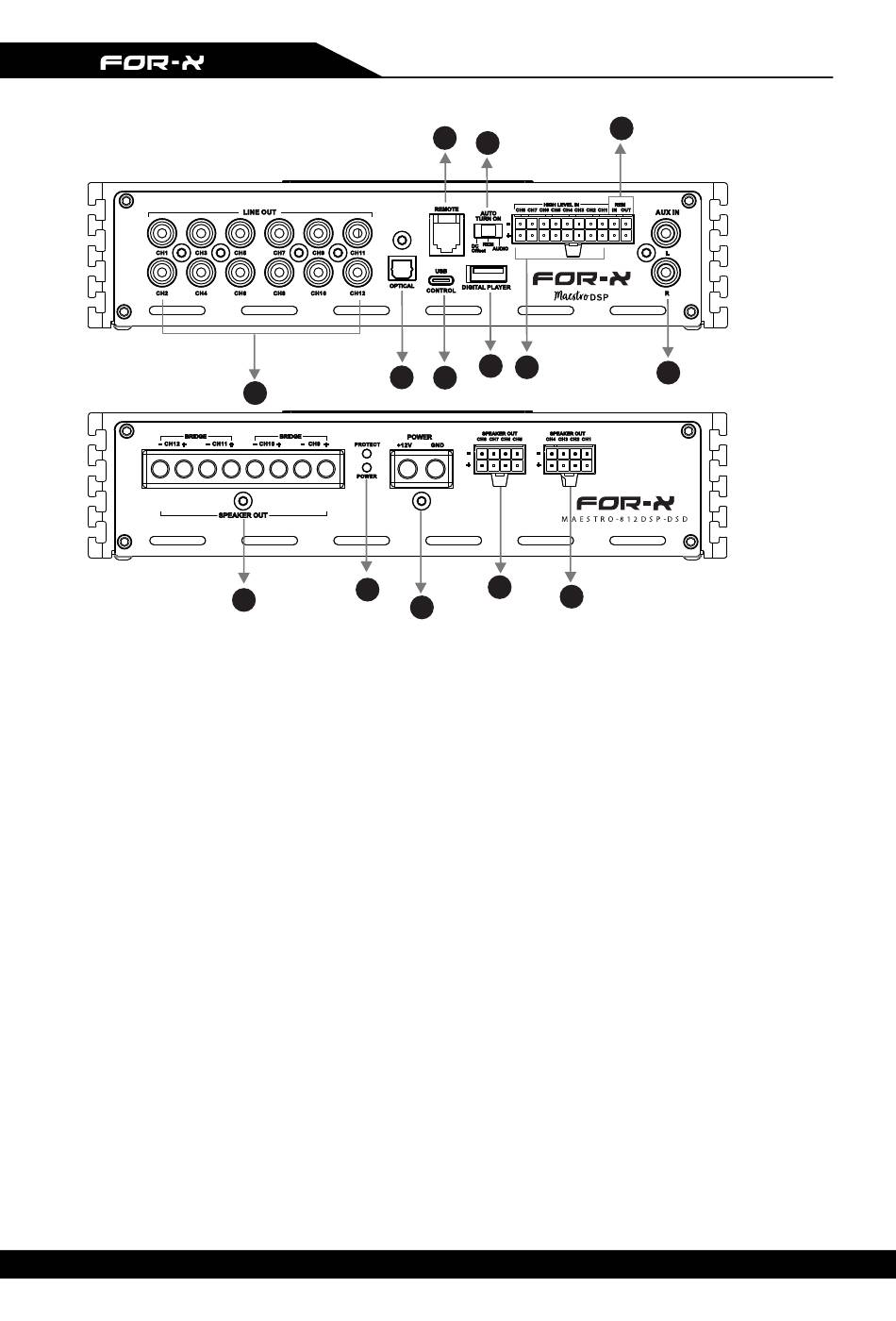

1.Low level signal output terminal.
MAESTRO-812DSP-DSD features low level output function to connect with external
amplifier.
2.Optical Stereo Digital Signal Input port.
Switching processor audio source to optical input can play stereo digital signal output
from vehicle CD or external sound source. Optical sampling rate supports 24 Bit/96
kHz.
3.USB External Computer Control.
Using the standard accessory of Type-C data cable, MAESTRO-812DSP-DSD can be
connected to PC for DSP setup by special PC software. The interface conforms to the
standard interface of USB3.0 and backwards compatible.
4.DIGITAL PLAYER INPUT.
MAESTRO-812DSP-DSD support dedicated MAESTRO-DSD input for lossless
music playing and DSP remote control.
5.External Wired Controller Port.
MAESTRO-812DSP-DSD supports control of wired controller DWC-03 (optional).
6.Auto Turn on/off control model options.
For auto turn on/off mode, it offers three options: DC OFFSET/REM/AUDIO.
REM: When switched to Rem, the remote control output terminal of the OEM source
unit is connected to the REM terminal of the processor, which is the preferred starting
method.
