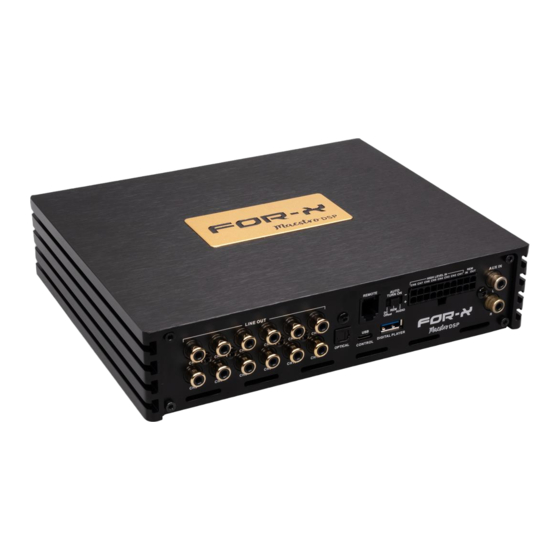

Summary of Contents for For-x MAESTRO-812DSP-DSD

  • Page 1 MAESTRO-812DSP-DSD...
  • Page 2 FEATURES Global Hi-Fi level components:ADAU1452 as main DSP chip and high grade AD,DA chip. Built in high definition Bluetooth module, support digital signal direct transmission; Support 24bit192KHz,Bluetooth 5.0 and downward compatible to 2.0; No external antenna design, long-distance stable transmission. Built-in 12Channel high power amplifier - Class AB 4chx20Wrms + Class D 8chx100Wrms.

  • Page 3: Main Features

    PLEASE READ BEFORE USING THIS EQUIPMENT 1、 Before using the product, please read all safety matters. After finishing reading, please keep this manual for future reference. 2、 To reduce the risk of injury, please keep the product under strict regulation when there are children nearby.
  • Page 4 CD or external sound source. Optical sampling rate supports 24 Bit/96 kHz. 3.USB External Computer Control. Using the standard accessory of Type-C data cable, MAESTRO-812DSP-DSD can be connected to PC for DSP setup by special PC software. The interface conforms to the standard interface of USB3.0 and backwards compatible.
  • Page 5 If the volume of the source unit is too low, the processor may fail to turn on. 7.High Level Signal Input Terminal. MAESTRO-812DSP-DSD features 8 high level signal inputs to connect amplified signal cables coming from the main analog source.
  • Page 6 FOR-X...
  • Page 7 MAESTRO-812DSP-DSD Connection Diagram MAESTRO-DSD Stereo optical input The REM of the external amplifiers must be controlled by the REM output of the MAESTRO-812DSP-DSD Bridge mode Minimum Load:4ohm Minimum Load:2ohm CH1/2/3/4 CH5/6/7/8 Minimum Load:4ohm Minimum Load:4ohm...
  • Page 8 PC software first. Software Interface Introductions Open FOR-X DSP TOOL PC software to enter into the software operation interface. As shown in the picture below, the main functions of the software interface include channel filter selection, sound source selection, EQ, delay, phase, input configuration (mixing), EQ...
  • Page 9 Power source Working voltage DC 8.2 -16V Idling current 1.45A Standby current 5.8mA 8.2 - 16V REM input voltage DC12V (0.5A) REM output voltage Signal Processing THD @1kHz, 1V Rated power output 0.02% Band width @-3dB 2 0 - 20KHz S/N Ratio @ 1W(AMP) 75dB (A-weighted) S/N Ratio @100W(AMP)/20W(AMP)
