For-x MAESTRO-8DSP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

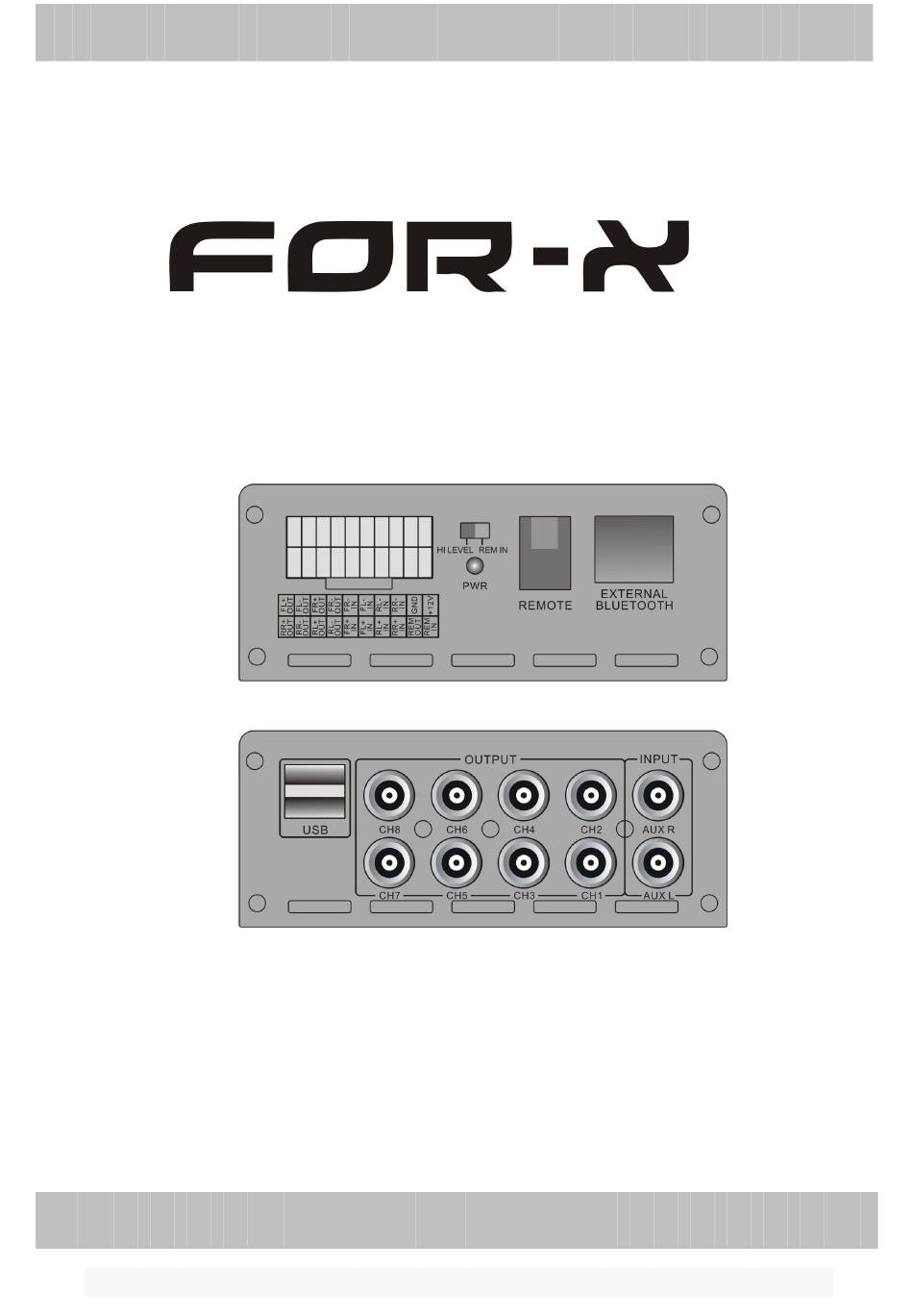

User Manual
MAESTRO-8DSP
SPECIAL DSP AMPLIFIER
Please read this manual carefully before using this product and keep it for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAESTRO-8DSP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for For-x MAESTRO-8DSP

Summary of Contents for For-x MAESTRO-8DSP

  • Page 1 User Manual MAESTRO-8DSP SPECIAL DSP AMPLIFIER Please read this manual carefully before using this product and keep it for future reference...
  • Page 2 Please contact with professional engineer for checking to avoid accident happen. Packing List For every package including below items, please noticed retailer and Factory if shortage: MAESTRO-8DSP unit User Manual Warranty Card Head Unit Cable 1PC (Option)

  • Page 3: Table Of Contents

    Contents User Manual Mobile Application Instructions....................1 1. Features 1.1 Audio specification、main audio signal process diagram…………..5 1.2 Input and output side panel………..…………………………………....…...6 1.3 Software Introduction……………………………….………….........6 1.4 Function Introduction…………………………………………........7 2. Installation 2.1 System classic connecting reference………..……...…..………………...8 2.2 Unit connection.……………….………….……..…….…...........9 Low level RCA input/output………………………………………......9 USB2.0 Port……………….…..………………….………........…10 The remote control function is introduced ..........10 3.

  • Page 4: Mobile Application Instructions

    Android mobile scan Qr-code on gift box to download the application to install ● The main volume can be adjusted by Maestro-8DSP app. Turn on the unit and plug in pressing the main volume scale clockwise or counterclockwise by hand.
  • Page 5 Equalization settings Click【EQ】to enter EQ interface 1、Click 【 Reset EQ 】 to restore the parameters of the 31-band equalizer to the original. pass-through mode (the equalizer frequency, Q value and gain are restored to their initial values). Maestro-8DSP Special DSP Amplifier...
  • Page 6 Slide the corresponding direction of the dot to In Phase or Out Phase（0 ゜/180 ゜） the left and right to set the delay. for the CH1 to CH8 speakers. Default Value: [MS], can switch to [CM] Maestro-8DSP Special DSP Amplifier...
  • Page 7 Mixer settings Click [Mixer] to enter Mixer interface, It can Perform 8 Output Channel adjustment. USB-L, USB-R, digital left and digital right, Bluetooth left and Bluetooth right mix selection and adjustment. APP password: 888888 Maestro-8DSP Special DSP Amplifier...

  • Page 8: Audio Specification、Main Audio Signal Process Diagram

    Low level Low level Low level Low level Low level Low level Low level Low level Output 1 Output 3 Output 4 Output 5 Output 6 Output 7 Output 8 Output 2 MAESTRO-8DSP Special DSP Amplifier...

  • Page 9: Input And Output Side Panel

    Low level RCA output RCA input 1.3 Software Introduction MAESTRO-8DSP PC software control: (please check 3. Software Operation detail ) 1) Automatically detect whatever the hardware is connecting with USB cable, if ready and will connect with head unit automatically.

  • Page 10: Function Introduction

    Each output channel can be adjusted for phase and time Output phase and delay, parameter range time delay Phase: 0 ゜/180 ゜ Time delay: 0.000-20.00ms，0.00-692.0cm，0.00-273 inch Scene operations Unit can keep 8-style of music scenes by preset. MAESTRO-8DSP Special DSP Amplifier...

  • Page 11: System Classic Connecting Reference

    Figure 2.1 this connecting method is for two units input, please refer below: 1. Please use Plug & Play cable to connect original car unit and MAESTRO-8DSP for upgrade audio system effects. Please use OUT5 and OUT6 RCA output when Install bass amplifier or subwoofer 2.

  • Page 12: Unit Connection

    CH8 is null, while the default output type of CH5 and CH6 is ultra-low left and ultra-low right, usually external bass amplifier, as bass strengthened. Of course, users can configure their own initiative RCA low level output to complete more high-end divided by two or three-way system. MAESTRO-8DSP Special DSP Amplifier...

  • Page 13: Usb2.0 Port

    U disk music playback interface: Rotate the knob to switch the next song to the left and the previous song to the right. Press the knob to pause playing. Press and hold the knob for 3 seconds to return to volume mode. MAESTRO-8DSP Special DSP Amplifier...

  • Page 14: Software Operation

    MAESTRO-8DSPprovides only wired USB PC software connection. Wired USB connection: Ensure that MAESTRO-8DSP power state, with a USB cable to connect to a computer through the USB interface, the computer will find the new device and automatically install the update equipment, after a few seconds the installation is complete.

  • Page 15: Software Interface

    User Manual 3.3 Software interface Figure 3.2.2 Software interface MAESTRO-8DSP unit divided into the following functional: 1．as shown in figure 3.2.2, "1", input signal selection: high level, Bluetooth, AUX and USB. 2．as shown in figure 3.2.2 "2", shows the main menu and connection status.

  • Page 16: Output Switch

    Select delay units, which are in milliseconds, centimetres, and inches. The range of milliseconds: 0.000~20; Range of mm: 0~692; Range of inches: 0 to 273; MAESTRO-8DSP processor output signal path can be any type of configuration freedom to any sound field point and the speaker type. The system defaults to full-range passive mode.
  • Page 17 The first step: Click on the right side of the "Reset Output Configuration" button in the dialog box, select the "Default" button, return to the main interface, all channels are reset to "empty" (no connection to any speaker, there is no output of), as shown below 3.3.4: Figure 3.3.4 MAESTRO-8DSP Special DSP Amplifier...

  • Page 18: Output Signal Equalizer And Crossover Operation

    Figure 3.3.6 3.3.4 Output signal equalizer and crossover operation Output channel equalizer and crossover editor mainly in the following areas of regulation, as shown in 3.3.7: Figure 3.3.7 MAESTRO-8DSP Special DSP Amplifier...
  • Page 19 Note: This operation will change the equalizer gain. Reset balanced: the button shown in Figure 3.3.4, click this button to make all current channel equalizer parameters return to the initial state: uniform distribution of frequency, Q value is 1.2, a gain of 0dB. MAESTRO-8DSP Special DSP Amplifier...

  • Page 20: Output Signal Function Operation

    20Hz ~ 20KHz. Slope settings:6dB/Oct,12dB/Oct,18dB/Oct,24dB/Oct,30dB/Oct,36dB/Oct,42dB/Oct, 48dB/Off/Oct ,9 options. Note: In 6dB / Oct, there is no type of algorithm, but a common type (displayed as NULL). 3.3.5 Output signal equalizer and crossover operation figure 3.3.10 MAESTRO-8DSP Special DSP Amplifier...
  • Page 21 Link output Configure button: Click this button, a pop-up dialog box, select the synchronous mode (option to "copy MAESTRO-8DSP Special DSP Amplifier...

  • Page 22: Setting Introduce

    3.3.14 3.4 Setting introduce Figure 3.4.1 As shown in Figure 3.4.1 MAESTRO-8DSP software of the scene in three major types of actions: the machine stored scene data, computer data stored scene and the whole scene data manipulation. 1．The machine data stored scene operation: refers to the scene data is now running...

  • Page 23: Original Setting Change

    Step1: Click on the main interface to the top menu " Memory " button will pop up all the scenes action item (see Figure 3.4.1). Step2: Click "Save as machine preset scenarios " item will pop up after the Save As dialog window machine preset (Figure 3.4.2). Figure 3.4.2 MAESTRO-8DSP Special DSP Amplifier...
  • Page 24 Figure 3.4.3 Figure 3.4.4 2. Loading machine preset scenarios This feature is to preset scene previously saved machine data (saved as a machine preset) out of tune as the machine is currently running scene. MAESTRO-8DSP Special DSP Amplifier...

  • Page 25: Load And Save To Store Scene File On The Computer

    3.4.2 Load and Save to store scene files on your computer 1. Save as a scene file on the computer This function is to save the current machine working scene data to a computer in order to prepare the late call. MAESTRO-8DSP Special DSP Amplifier...
  • Page 26 Step2: Click "Load PC preset File" after entry window will pop open file dialog box (Figure 3.4.13). Figure 3.4.12 Step 3: open the pop-up window, select the file name of the user you want to call, point to open it. MAESTRO-8DSP Special DSP Amplifier...

  • Page 27: Load And Save The Whole Store A Scene

    3.5 Options Introduction After click on the main interface to the top menu "Options" button in Figure 3.5.1, it will pop up "option" of each menu item, you can choose: Noise Gate /Reset/Input Vol/About Setting. Figure 3.5.1 MAESTRO-8DSP Special DSP Amplifier...

  • Page 28: Noise Gate

    In the options menu, click the " Encrypt " option with the mouse, and a message dialog box will pop up, in which you can set the password for encryption. Password:123456, shown in Figure 3.5.4. Figure 3.5.4 MAESTRO-8DSP Special DSP Amplifier...

  • Page 29: Common Trouble Shouting

    1. please check if turn on mute style No voice 2. please check if input channel is correct? 1. please check if USB cable is setting correct Cannot link USB 2. please check if find name as “HID-compiling device”in the computer MAESTRO-8DSP Special DSP Amplifier...
