- Page 1 X-9102A USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS Produc�on features ----------------------------------------------------- Accessory list ------------------------------------------------------------- Introduc�on of touch key --------------------------------------------- Func�onal applica�on ------------------------------------------------- Home menu -------------------------------------------------------------- Zlink ------------------------------------------------------------------------ Radio ----------------------------------------------------------------------- Music ---------------------------------------------------------------------- DSP ------------------------------------------------------------------------- Bluetooth ----------------------------------------------------------------- Car se�ngs --------------------------------------------------------------- Se�ngs -------------------------------------------------------------------- Wire connec�on -------------------------------------------------------- Technical parameters -------------------------------------------------- Common troubleshoo�ng guidelines ------------------------------... -
Page 3: Produc�On Features

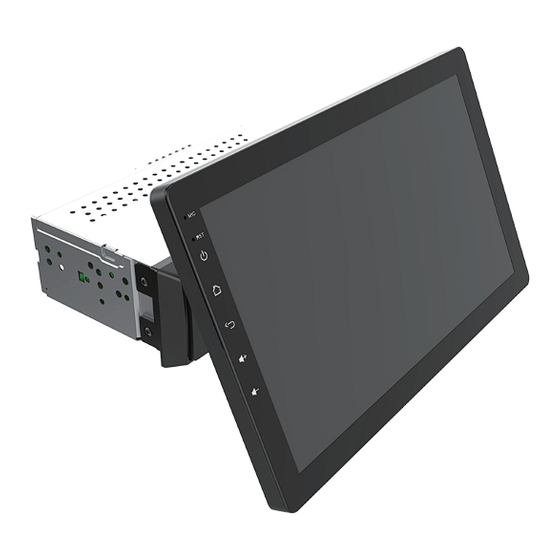

PRODUCT FEATURES One DIN 10.1” indash LCD IPS 1280X720 Android 13 Processor Quad-core Coretex-A53 4* 1.3GHZ Opera�ng memory: 2GB, Storage Memory: 32GB Display: Capaci�ve screen, Mul�-Touch Video Input/Output(The video output func�on of converter box can be purchased separately for this product. Please refer to the distributor for details.) More UI freedom to switch Mirror link apple carplay, Android Auto... -
Page 4: Accessory List
ACCESSORY LIST Power Cable x1 Rear View Interface Wire x1 20P-RCA Wire x1 GPS Antenna ×1 4P-USB Wire x1 Installation Screw(PB3*8MM) x6 6P-USB Wire x1 User Manual x1... -
Page 5: Introduc�On Of Touch Key
INTRODUCTION OF TOUCH KEY 1.Power key:While unit is powered on, short press mutes the unit, while long press turns the unit off. 2.Home menu: Press to enter the main menu 3.Return key: Press to return to the previous page 4.Volume +: Press to increase volume, long press increases volume con�nuously. -
Page 6: Func�Onal Applica�On
FUNCTIONAL APPLICATION HOME MENU Some func�ons or se�ng items may different due to different machine versions. :Click to enter Google map interface :Click to enter radio interface Click to enter bluetooth interface :Click to view all applications :Click to enter music interface :Click to enter video interface :Click to enter setting interface Descrip�on of status bar icons... -
Page 7: Zlink
FUNCTIONAL APPLICATION Zlink 1.Press to enter Zlink, the mobile phone can be connected to the in-vehicle infotainment device automa�cally through Android USB and iphone Wi-Fi. 2.Wireless Zlink: Iphone connects the car naviga�on through Bluetooth, click zlink to enter the pop-up dialog box, and click use zlink. Zlink:(Connec�on instruc�ons for some iOS mobile phones) 1.Turn on the bluetooth of the mobile phone to connect the Bluetooth of the head unit. -
Page 8: Radio
FUNCTIONAL APPLICATION Touch “Radio” in home menu to enter radio interface. Touch to switch band FM/AM. Touch to search for sta�ons automa�cally. Touch to enter the automa�cally searching sta�on and reserving status, the found sta�on will be automa�cally reserved in the preset sta�on list, “press”... -
Page 9: Music
FUNCTIONAL APPLICATION MUSIC Press to enter music main list. Press to play local music. Press to play USB disk music. Press to play SD-card music. Press to enter music folder. Press to enter the sound effect se�ngs. Press to switch to previous song. Press to play or pause music. -
Page 10: Dsp
Dial Phone BLUETOOTH A�er connec�ng your mobile phone to your unit using Bluetooth, you will be able to make phone calls and play music. Press the bluetooth icon to enter the Phone book Bluetooth interface. Cal log Bluetooth name is X-9102A-BT. -
Page 11: Car Se�Ngs
FUNCTIONAL APPLICATION CAR SETTINGS Click op�ond can Click op�ons can Click op�ons can choose se�ngs choose se�ngs choose se�ngs about about display screen volume, and sound. & brightness etc. SETTINGS Touch "Se�ngs icon from home menu to enter below picture. 1.Network &... -
Page 12: Wire Connec�On
WIRE CONNECTION A--Power D--4P USB B--AV E--6P USB F--Camera C--Can bus A:Power B:AV Ground Wire Black Yellow Video Input AV IN VIDEO Battery Wire BATT+ Yellow White Left Audio Input AV IN L Lgnition Wire Right Audio Input AV IN R Lamp Control Wire ILLUMI Orange... -
Page 13: Technical Parameters
11EN... -
Page 14: Common Troubleshoo�Ng Guidelines
12EN...
