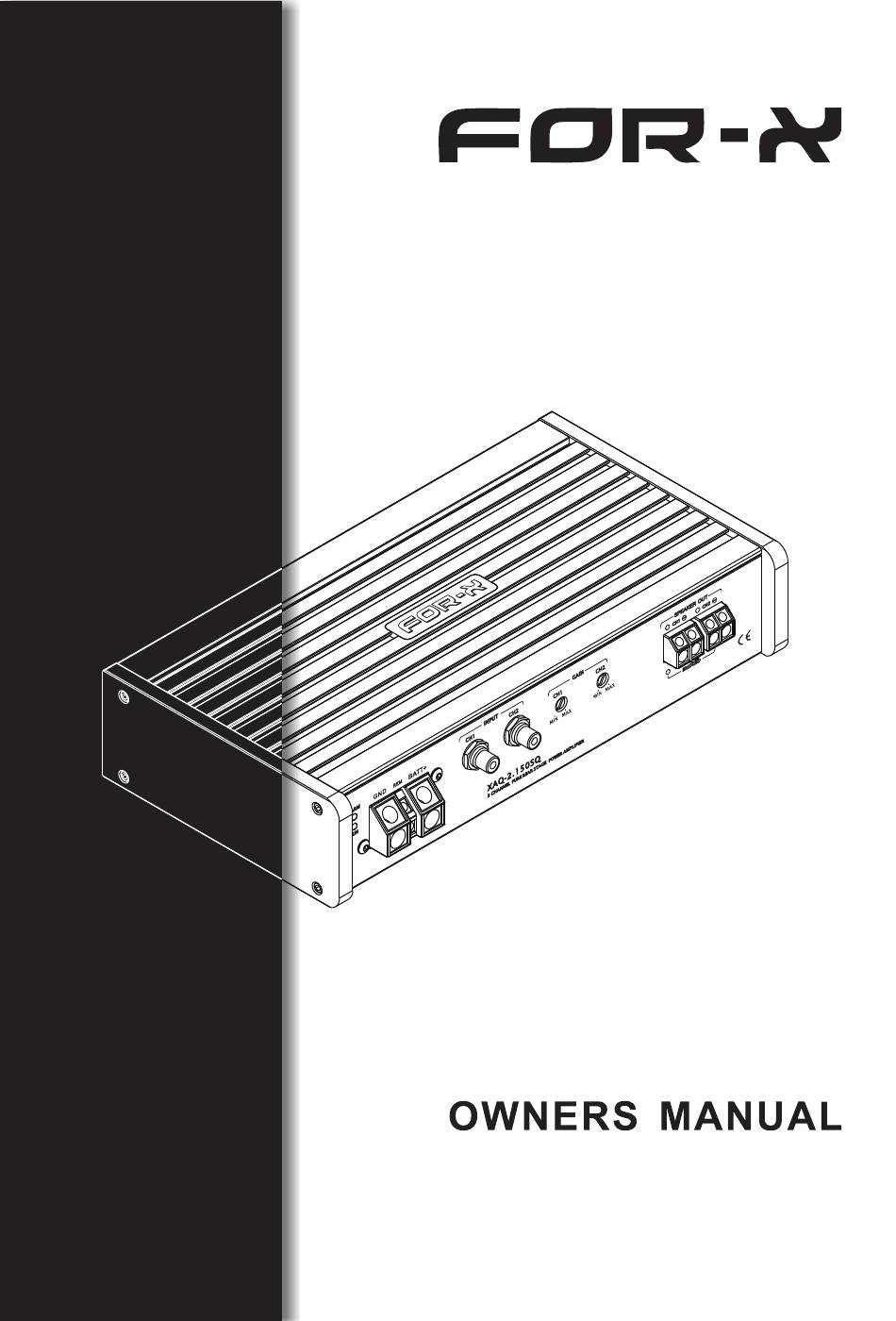

- Page 1 XAQ-4.80SQ XAQ-2.150SQ Pure Rear Stage Power Amplifier...
- Page 2 CONGRATULATIONS Thank you for purchasing FOR-X Class AB Full Range amplifier for your car audio system. Now you own an amplifier of uncompromising design and engineering. Incorporating the latest advanced circuit technology. You will discover soon the amplifier displays optimum sound with high quality and reliable performance. All are proven the high quality of FOR-X products.
- Page 3 3.Use four black screws from the standard accessories to fix the amplifier to the installation position. （ ） Fig. 1 installation 2 installation 2 installation 1 installation 1 CONNECTING THE AMPLIFIER FOR-X The 12 volt power cable must be connected with a fuse in near 45cm(18")of Battery + terminal.
- Page 4 5.4:GAIN Adjustable Input level control knob XAQ-2.150SQ / XAQ-4.80SQ input level adjustable between 0.5V ~ 5V When installing and tuning, it is necessary to adjust the GAIN knob to match the input level of the amplifier with the output level of the sound source equipment.
- Page 5 AMPLIFIER INSTALLATION WIRING DIAGRAM XAQ-2.150SQ wiring diagram (stereo connection mode) Minimum impedance 2 ohms XAQ-4.80SQ Connection Diagram (4 Channel/ 2-Way Active Connection Mode) FRONT / TWEETER Minimum impedance 2 ohms REAR WOOFER REAR WOOFER Minimum impedance 2 ohms...
- Page 6 TROUBLE SHOOTING FOR-X...
- Page 7 SPECIFICATION XAQ-2.150SQ XAQ-4.80SQ RMS Power 4 Ohm Load 2 x 150W 4 x 80W 2 Ohm Load 2 x 200W 4 x 105W Bridged 4Ohm Load 1 x 380W 2 x 240W Frequency Response 10~50KHz(-3dB) 10~50KHz(-3dB) <0.15% <0.15% Input sensitivity 0.5-5V...
