HC-1621IR/1621IR-Pro/1621P/1621P-Pro
Infotainment Terminal
User Manual
HC-1621IR/1621IR-Pro
Package Contents
HC-1621 series terminal.............................................x1
Power adaptor............................................................................x1
Power cord.............................................................x1
I/O cable cover.........................................................x1
User manual...............................................................................x1
Recovery DVD.........................................................x1
Views of the HC-1621 Series

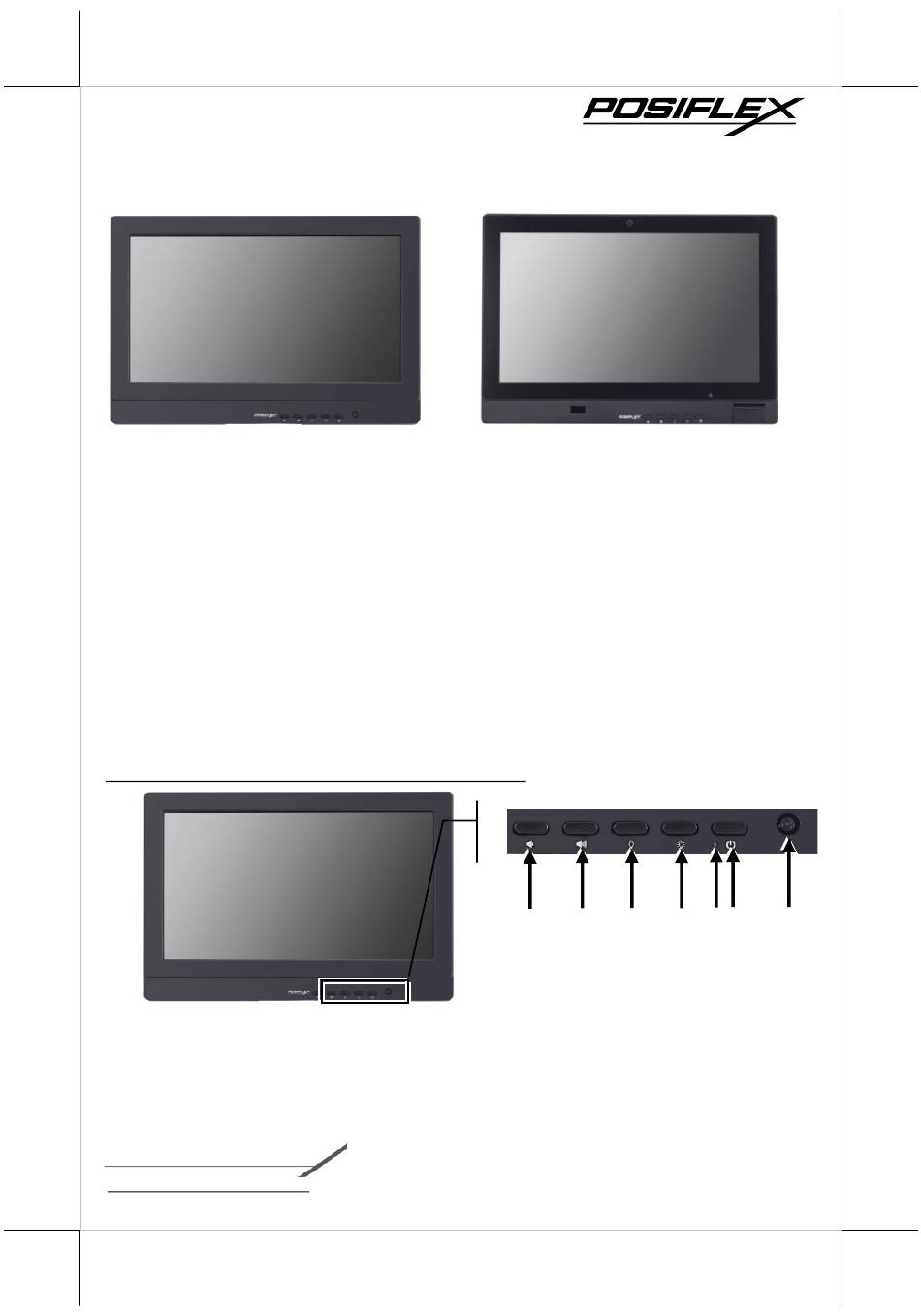

Front View of HC-1621IR/1621IR-Pro
15631900010 Ver. A0
http://www.posiflex.com
HC-1621P/1621P-Pro
1
2
1.
Volume down
2.
Volume up
3.
Backlight brightness down
4.
Backlight brightness up
5.
Power LED
6.
Power button
7.
Light sensor
1
3
4 5 6
7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX HC-1621IR
Summary of Contents for POSIFLEX HC-1621IR
- Page 1 HC-1621 series terminal………………………………………x1 Power adaptor................x1 Power cord…………………………………………………….x1 I/O cable cover……………………..………………………….x1 User manual................x1 Recovery DVD………………………………………………...x1 Views of the HC-1621 Series Front View of HC-1621IR/1621IR-Pro 4 5 6 Volume down Volume up Backlight brightness down Backlight brightness up Power LED Power button Light sensor 15631900010 Ver.
- Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
- Page 3 警告使用者 這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾， 在這種情況下，使用者會被要求採取某些適當的對策。 BATTERY CAUTION NOTES Dispose of used batteries according to the instructions. Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types) Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery that can result in an explosion.
- Page 4 Front View of HC-1621P/1621P-Pro Front facing camera 4 5 6 Volume down Volume up Backlight brightness down Backlight brightness up IR receiver Power LED Light sensor Power button 2D image scanner (optional) Rear View of HC-1621 Series Screws holes for VESA mount (100 x 100 mm) Heat dissipation holes Speaker Speaker...
- Page 5 Bottom View of HC-1621 Series Internal MIC Audio combo jack USB2.0 port Rear Bottom View of I/O Ports 12VDC-IN power jack HDMI port Serial (DB9) port USB3.0 port (COM1 ~ COM4) USB2.0 port RJ45 LAN port VGA port RJ45 LAN port...
- Page 6 Connecting Power Adapter and I/O Cables To have the terminal ready for operation, please connect the connector of power adapter and all of the connectors of required I/O cables respectively to the 12VDC-IN power jack and appropriate I/O ports. Please make sure that each of the cables is fully connected to each of the correct ports.
- Page 7 BIOS Setting Jumper Setting Installing Optional Peripheral Devices Posiflex HC-1621 series can work with multiple optional peripheral devices, such as MSR, headset and the like. Before installing an optional peripheral device, make sure that the system is powered off and the external power source is removed...
- Page 8 Mounting the HC-1621 Series on the Wall (Optional) If you are a user of HC-1621IR/1621IR-Pro provided with a scanner, you can mount the terminal on the wall by using the optional wall mount kit, SK-300, while if you are a user of HC-...
- Page 9 Press once the Backlight Brightness Up and Backlight Brightness Down buttons at the same time. After the Backlight Brightness Up and Backlight Brightness Down buttons are pressed once at the same time, the HC-1621 series will adjust its backlight automatically by detecting the ambient light.
-
Page 10: Power Led Indicator
down accidently, you can make the system stay “always ON” by locking the power button. To lock the power button, refer to the following instruction. Press the Volume Down, Volume Up, and Backlight Brightness Up buttons sequentially and then hold for 3 seconds. -
Page 11: Specifications
Operating System Recovery For the HC-1621 series main terminal preloaded with an operating system on HDD or SSD, Posiflex provides a recovery DVD shipped with the main terminal for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered. - Page 12 Integrated module for option terminal (via WB5000 and SK- 300) ※ The product information and specifications are subject to change without prior notice. To get the detailed information on HC-1621 series, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
