HC-1521IR/1521IR-Pro/1521P/1521P-Pro
Infotainment Terminal
User Manual
HC-1521IR/1521IR-Pro
Package Contents
HC-1521 series terminal.............................................x1
Power adaptor............................................................................x1
Power cord.............................................................x1
I/O cable cover (including 2 screws)...............................x1
User manual...............................................................................x1
Recovery DVD.........................................................x1

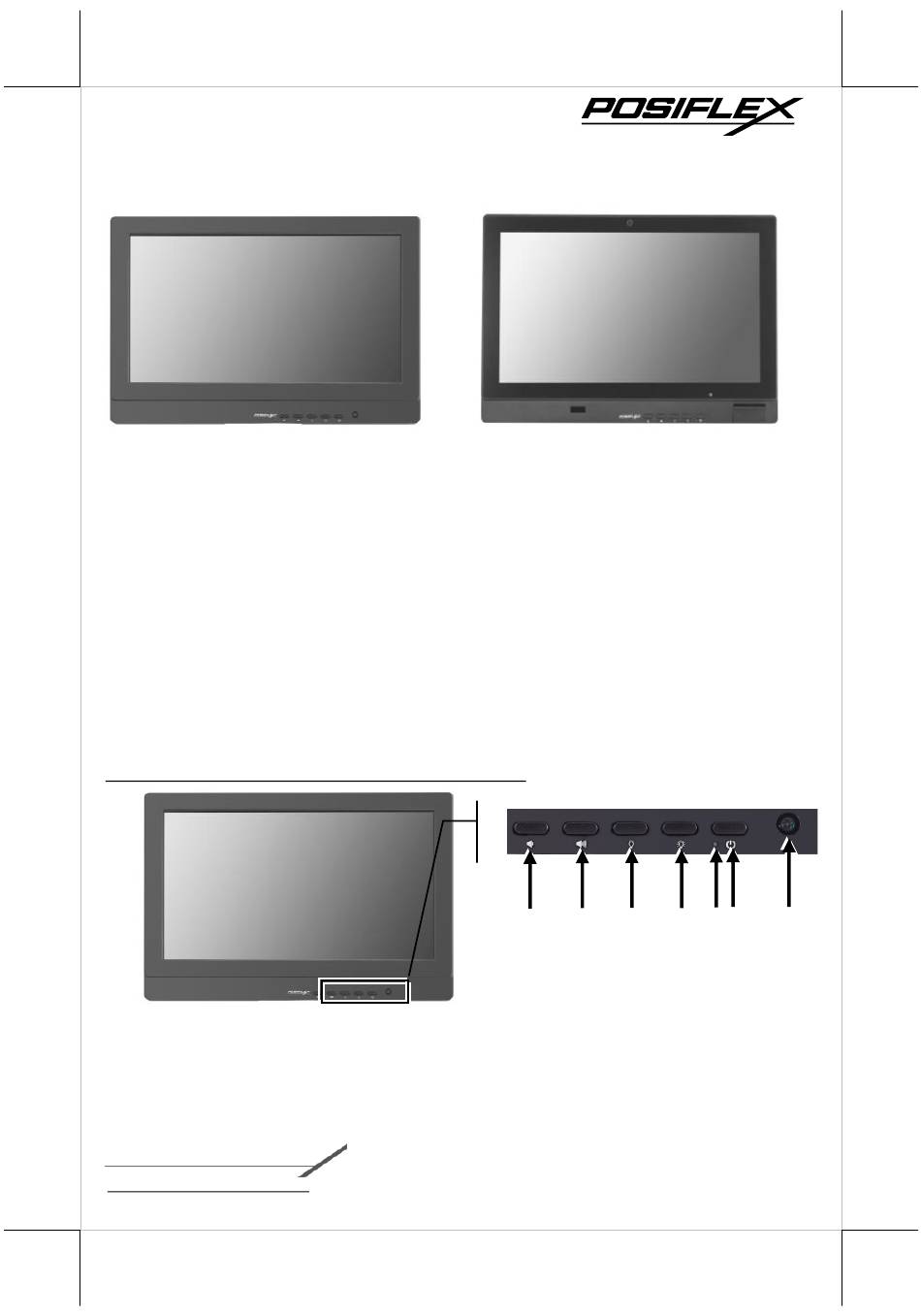

Views of the HC-1521 Series
Front View of HC-1521IR/1521IR-Pro
15630900020 Ver. A0
http://www.posiflex.com
HC-1521P/1521P-Pro
1
2
1.
Volume down
2.
Volume up
3.
Backlight brightness down
4.
Backlight brightness up
5.
Power LED
6.
Power button
7.
Light sensor
1
3
4 5 6
7
Advertisement
Related Manuals for POSIFLEX HC-1521 Series
Summary of Contents for POSIFLEX HC-1521 Series
- Page 1 Package Contents HC-1521 series terminal………………………………………x1 Power adaptor................x1 Power cord…………………………………………………….x1 I/O cable cover (including 2 screws)………………………….x1 User manual................x1 Recovery DVD………………………………………………...x1 Views of the HC-1521 Series Front View of HC-1521IR/1521IR-Pro 4 5 6 Volume down Volume up Backlight brightness down Backlight brightness up...
- Page 2 10. Backlight brightness down 11. Backlight brightness up IR receiver 12. Power LED Light sensor 13. Power button 2D image scanner (optional) Rear View of HC-1521 Series Screws holes for VESA mount (100 x 100 mm) Heat dissipation holes Speaker Speaker Cover Cover...
- Page 3 Bottom View of HC-1521 Series Microphone Audio combo jack USB2.0 port Note: 1. The microphone is provided for HC-1521P/1521P-Pro ONLY. Rear Bottom View of I/O Ports 12VDC-IN power jack HDMI port Serial (DB9) port USB3.0 port (COM1 ~ COM4) USB2.0 port...
- Page 4 Note: The COM ports of HC-1521 series do not supply power by default. To make the COM ports supply power, you can set up the COM ports through the dedicated settings listed in the table below.
- Page 5 Installing Optional Peripheral Devices Posiflex HC-1521 series can work with multiple optional peripheral devices, such as MSR, headset and the like. Before installing an optional peripheral device, make sure that the system is powered off and the external power source is removed...
- Page 6 Make the connector of coaxial cable extended from the terminal connect to the coaxial cable connect of the cable TV tuner dongle. Squeeze the coaxial cable connected to the cable Squeezed into the compartment TV tuner dongle into the cable TV tuner dongle compartment of the terminal.
- Page 7 Squeeze the USB cable Squeezed into the compartment connected to the cable TV tuner dongle into the cable TV tuner dongle compartment of the terminal. Determine that the cable TV tuner dongle is well mounted to the cable TV tuner dongle compartment of the terminal.
- Page 8 I/O cables to the cable arrangement area, as indicated by the arrow. Mounting the HC-1521 Series on the Wall (Optional) If you are a user of HC-1521IR/1521IR-Pro provided with a scanner, you can mount the terminal on the wall by using the...
- Page 9 For detailed installation description, please refer to the installation guide of wall mount kit you purchase. Powering ON the HC-1521 Series To power on the HC-1521 series, just press the power button; to power it off, press and hold the button for 3 seconds. Enabling/Disabling the Buttons...
- Page 10 Setting the Power Button to “ON ONLY” In the default condition, the power button is for you to easily power on or off the HC-1521 series. In order to avoid users from pressing the power button by mistake to make the system shut down accidently, you can make the system stay “always ON”...
-
Page 11: Power Led Indicator
We suggest that you contact your dealer for OS installation. Operating System Recovery For the HC-1521 series main terminal preloaded with an operating system on HDD or SSD, Posiflex provides a recovery DVD shipped with the main terminal for the preloaded operating system. - Page 12 If you plan to recover your operating system, we do NOT encourage you to recover any operating system by yourself. Please contact your service center for operating system recovery. Operation Environment This terminal must NOT be operated in an environment with restricted ventilation.
-
Page 13: Specifications
Specifications HC-1521IR/1521IR-Pro 1521P/1521P-Pro System Configuration Intel Haswell platform, Processor default Core i3 w/H81 chipset, Core i5 w/Q87 chipset (vPro support) Memory 2 x DDR3 SO-DIMM sockets (1333/1600 FSB) Storage 1 x SATA / 1 x mSATA (SATA for 2.5" HDD or SSD) Power Supply 12V/130W or 12V/150W POSReady 7 (32bit/64bit) / WIN 7 (32bit/64bit) /... - Page 14 300) Cable TV Tuner USB dongle & remote control Handset ※ The product information and specifications are subject to change without prior notice. To get the detailed information on HC-1521 series, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
- Page 15 < MEMO >...
- Page 16 < MEMO >...
