HC-1021IR/1021P
Infotainment Terminal
User Manual
HC-1021IR
Package Contents
HC-1021 series terminal.............................................x1
Power adaptor............................................................................x1
Power cord.............................................................x1
I/O cable cover (including 2 screws)...............................x1
User manual...............................................................................x1
Recovery DVD.........................................................x1

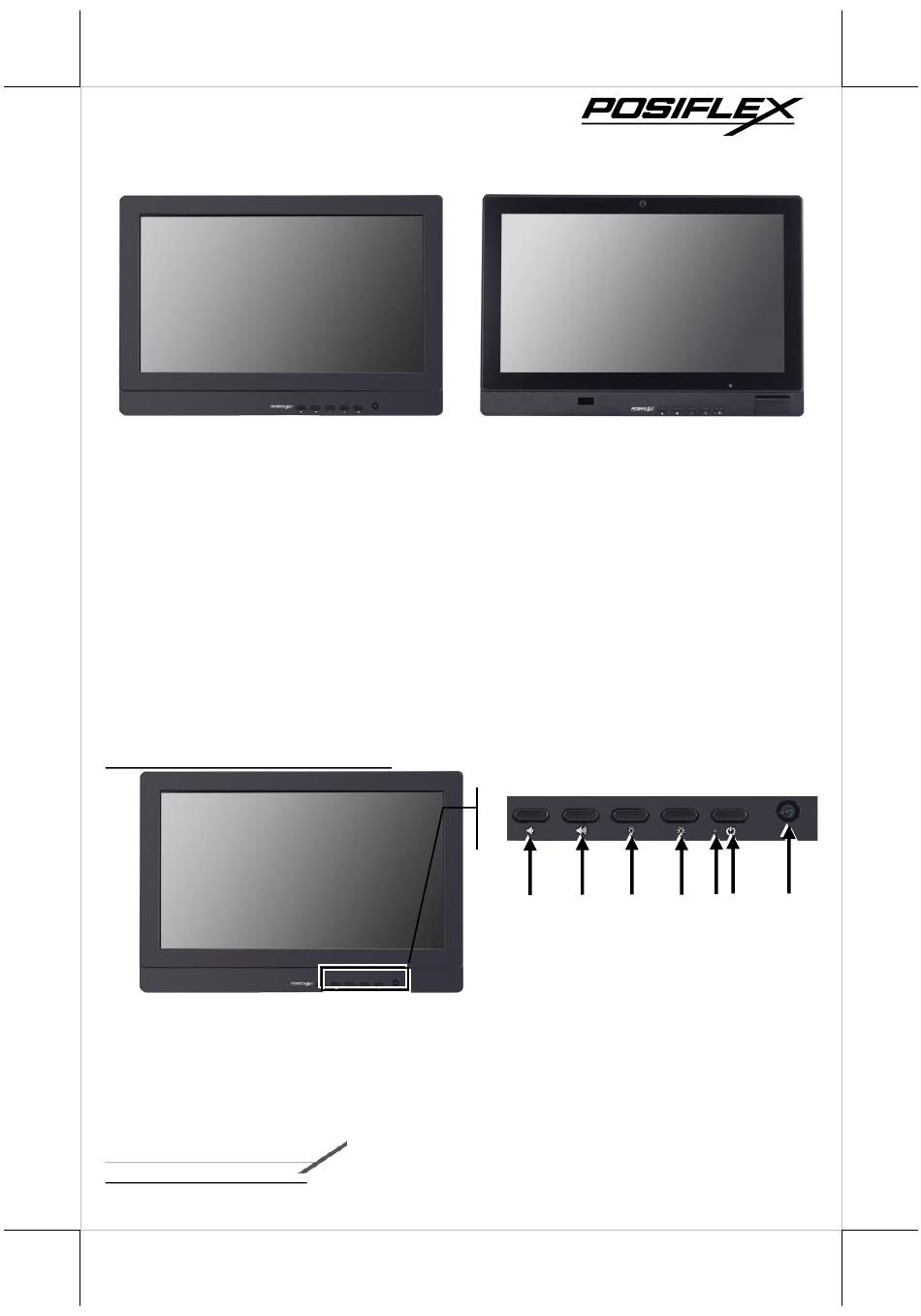

Views of the HC-1021 Series
Front View of HC-1021IR
15620900020 Ver. B0
http://www.posiflex.com
HC-1021P
1
2
1.
Volume down
2.
Volume up
3.
Backlight brightness down
4.
Backlight brightness up
5.
Power LED
6.
Power button
7.
Light sensor
1
3
4 5 6
7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX HC-1021IR
Summary of Contents for POSIFLEX HC-1021IR
- Page 1 HC-1021 series terminal………………………………………x1 Power adaptor................x1 Power cord…………………………………………………….x1 I/O cable cover (including 2 screws)………………………….x1 User manual................x1 Recovery DVD………………………………………………...x1 Views of the HC-1021 Series Front View of HC-1021IR 4 5 6 Volume down Volume up Backlight brightness down Backlight brightness up Power LED...
- Page 2 Front View of HC-1021P Front facing camera 4 5 6 Volume down Volume up 10. Backlight brightness down 11. Backlight brightness up IR receiver 12. Power LED Light sensor 13. Power button 2D image scanner (optional) Rear View of HC-1021 Series Screws holes for VESA mount (100 x 100 mm) Heat dissipation holes...
- Page 3 Bottom View of HC-1021 Series USB2.0 port Audio combo jack I/O Ports on the I/O Plate Coaxial connector Serial (DB9) port for cable TV tuner (optional) (COM1 ~ COM4) RJ45 LAN port microSD card slot USB2.0 port HDMI port VGA port 12VDC-IN power jack Note: The coaxial connector is provided for HC-1021P ONLY.
- Page 4 Connecting Power Adapter and I/O Cables To have the terminal ready for operation, please connect the connector of power adapter and all of the connectors of required I/O cables respectively to the 12VDC-IN power jack and appropriate I/O ports. Please make sure that each of the cables is fully connected to each of the correct ports.
- Page 5 Installing Optional Peripheral Devices Posiflex HC-1021 series can work with multiple optional peripheral devices, such as MSR, headset and the like. Before installing an optional peripheral device, make sure that the system is powered off and the external power source is removed...
- Page 6 Make the connector of coaxial cable extended from the terminal connect to the coaxial cable connect of the cable TV tuner dongle. Squeeze the coaxial cable connected to the cable Squeezed into the compartment TV tuner dongle into the cable TV tuner dongle compartment of the terminal.
- Page 7 Squeeze the USB cable Squeezed into the compartment connected to the cable TV tuner dongle into the cable TV tuner dongle compartment of the terminal. Determine that the cable TV tuner dongle is well mounted to the cable TV tuner dongle compartment of the terminal.
- Page 8 Mounting the HC-1021 Series on the Wall (Optional) If you are a user of HC-1021IR provided with a scanner, you can mount the terminal on the wall by using the optional wall mount kit, SK-300, while if you are a user of HC-1021IR without any scanner, you can mount the terminal on the wall by using the optional wall mount bracket, WB5000.
- Page 9 Powering ON the HC-1021 Series To power on the HC-1021 series, just press the power button; to power it off, press and hold the button for 3 seconds. Enabling/Disabling the Buttons By enabling and/or disabling the buttons, you can use the functions of Auto Backlight Adjustment, Control Button Locking, and Power Button Locking.
- Page 10 Locking the 4 Control Buttons In the default condition, the 4 control buttons -- Volume Down, Volume Up, Backlight Brightness Up, and Backlight Brightness Down -- are for users to control. To lock the 4 control buttons, refer to the following instruction. Press the Volume Up and Backlight Brightness Up buttons sequentially and then hold for 3 seconds.
-
Page 11: Power Led Indicator
Operating System Recovery For the HC-1021 series main terminal preloaded with an operating system on HDD or SSD, Posiflex provides a recovery DVD shipped with the main terminal for the preloaded operating system. The system integrator shall take care of software... - Page 12 If you plan to recover your operating system, we do NOT encourage you to recover any operating system by yourself. Please contact your service center for operating system recovery. Operation Environment This terminal must NOT be operated in an environment with restricted ventilation.
-
Page 13: Specifications
Specifications HC-1021IR HC-1021P System Configuration Intel Braswell Platform, supporting N3160 (Celeron) / N3710 (Pentium)processors (SoC) Memory DDR3L SO-DIMM x 2 (up to 16 GB) Storage 2.5" SATA HDD or SSD / microSD card Power Supply 12V/80W OS Support WIN 8.1 Industry (64bit) / WIN 10 IoT (32bit / 64bit) Display &... - Page 14 Storage -20°C - 70°C, 10%RH - 90%RH Condition Certification CE/FCC ※ The product information and specifications are subject to change without prior notice. To get the detailed information on HC-1021 series, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
- Page 15 <MEMO>...
- Page 16 <MEMO>...
