Summary of Contents for Connect Tech SSD/104 SATA

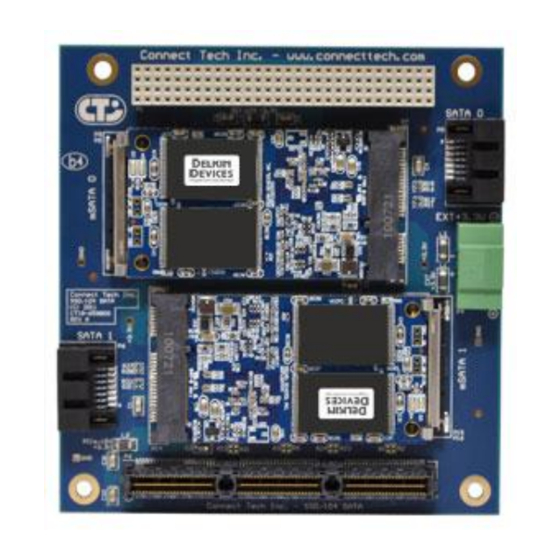

- Page 1 SSD/104 SATA User Manual Connect Tech Inc. 42 Arrow Road Guelph, Ontario N1K 1S6 Tel: 519-836-1291 Toll Free: 800-426-8979 (North America only) Fax: 519-836-4878 Email: sales@connecttech.com support@connecttech.com Web: www.connecttech.com CTIM-00146 Revision 0.00...
-
Page 2: Limited Lifetime Warranty
Connect Tech Inc.’s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non Connect Tech Inc. -
Page 3: Table Of Contents
Connect Tech SSD/104 SATA User Manual Table of Contents Limited Lifetime Warranty ............................... 2 Copyright Notice................................2 Trademark Acknowledgment ............................2 Table of Contents ................................3 Revision History ................................3 Customer Support Overview ............................. 4 Contact Information ................................4 Introduction..................................5 Product Features ................................ -
Page 4: Customer Support Overview
Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech Inc. reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. -
Page 5: Introduction
SATA signals directly over the bus connector. The SSD/104 SATA can purchased from Connect Tech as a complete storage solution with the mSATA modules already installed or the product can also be purchased as a mSATA carrier in which case the user can source and install their own mSATA SSD modules. -
Page 6: Product Features
Connect Tech SSD/104 SATA User Manual Product Features Specification Details SSD Slots 2 x mSATA SSD slots (JEDEC MO-300B compatible) Storage Capacities 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB (per mSATA slot) Options ** Or larger as new mSATA modules come to market... -
Page 7: Board Diagram
Connect Tech SSD/104 SATA User Manual Board Diagram Revision 0.00... -
Page 8: Block Diagram
Connect Tech SSD/104 SATA User Manual Block Diagram Revision 0.00... -
Page 9: Part Number Information
Connect Tech SSD/104 SATA User Manual Part Number Information Part Number Features Full Build – Both PCIe./104 and PCI-104 Connectors are installed SDG001 PCIe/104 Build – Only PCIe/104 Connector is installed SDG002 PCI-104 Build – Only PCI-104 Connector is installed SDG003 No bus connectors installed, external power must be used. -
Page 10: Power Sourcing Explaination
5) Power ON your SBC mSATA SSD Module Information Connect Tech’s SSD/104 SATA Carrier board allows for the installation of 2 mSATA SSD Modules. mSATA modules should be JEDEC MO-300B compatible pinout and size. mSATA SSD modules are not only small in size and rugged but extremely and can drastically reduce boot time. -
Page 11: Using Sata Port From The Pcie/104 Type 2 Bus
TOP or BOTTOM side signals from the PCIe/104 bus. If you would like to order an SSD/104 SATA product from Connect Tech pre-configured to use PCIe/104 Type 2, please contact support@connecttech.com . Otherwise the follow procedures can be performed by the end-user at their own risk. -
Page 12: Msata Slot Connector Pinout
Connect Tech SSD/104 SATA User Manual mSATA Slot Connector Pinout Pin Number Description +3.3V (SATA TX+ To Host System) +3.3V (SATA TX- To Host System) (SATA RX- From Host System) (SATA RX+ From Host System) +3.3V +3.3V +3.3V Revision 0.00...
