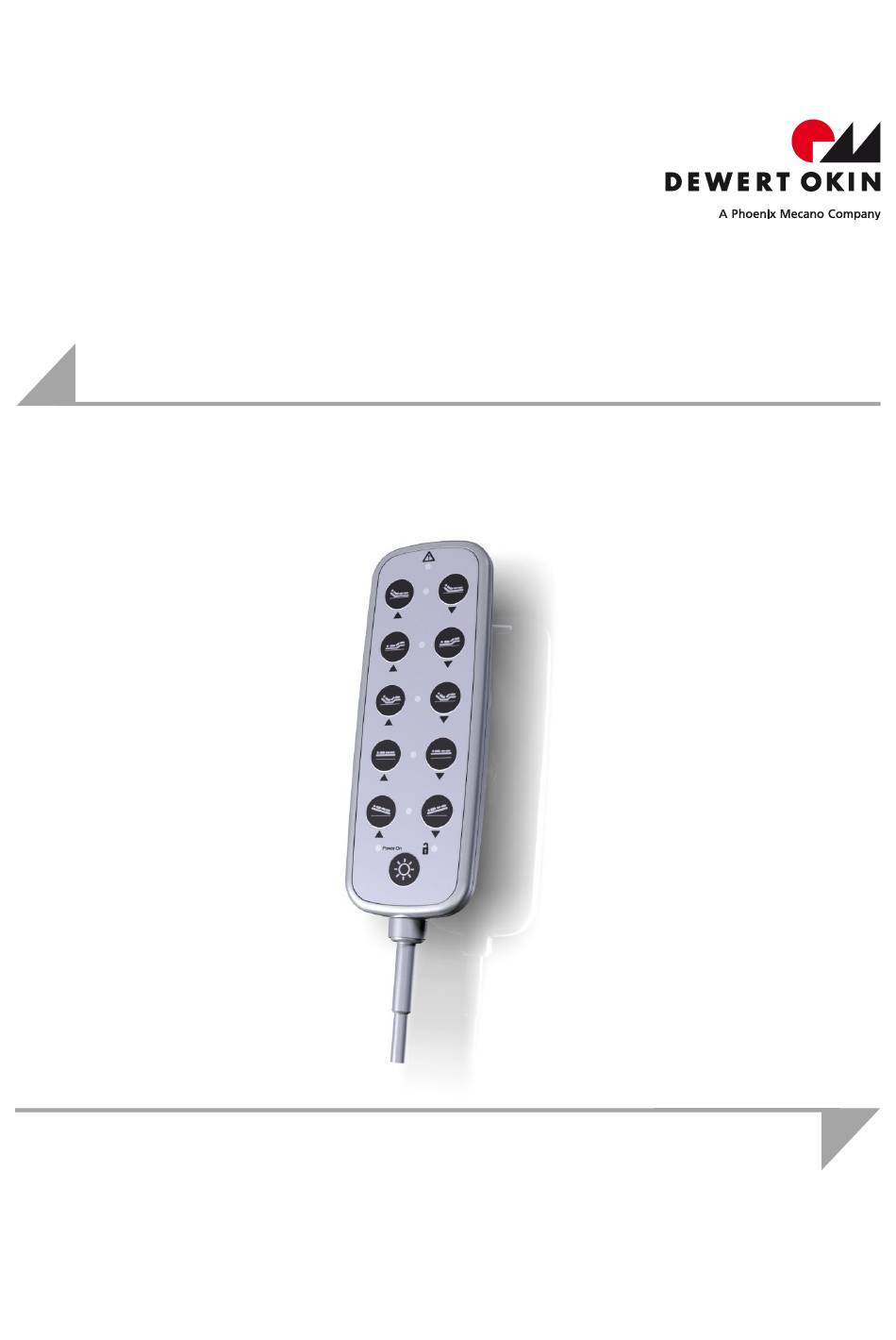

  • Page 1 System Instructions IPROXX 2...

  • Page 3: Document Revision History

    IPROXX 2 Document revision history Version Date Modification, change 11/12 First release 03/14 Ratings plate 04/15 Technical specifications 06/17 Optional: Bluetooth (iOS) ® 03/18 FCC Warning and IC Warning 12/19 Optional: Bluetooth (Android) ® Disclaimer and exclusion of liability DewertOkin is not responsible for damage resulting from: ...

  • Page 4: Table Of Contents

    IPROXX 2 Document revision history ..........................3 Disclaimer and exclusion of liability ....................... 3 Manufacturer's address ........................... 3 General Information ....................5 About these system instructions......................5 Conventions used ..........................5 Safety notices ......................6 Proper and intended usage ......................... 6 Handset description ....................

  • Page 5: General Information

    IPROXX 2 General Information General Information About these system instructions These instructions are intended specifically for the IPROXX 2 handset. These instructions are not operating instructions for the end product. They should be used only in conjunction with the installa- tion instructions for the DewertOkin double drive or DewertOkin control unit to which the handset is connected.

  • Page 6: Safety Notices

    Safety notices IPROXX 2 Safety notices Proper and intended usage The IPROXX 2 handset is used to operate DewertOkin drive systems. It is also used to lock and un- lock the adjustment functions on beds used to care for sick people. It can be used for care purposes (CARE).
  • Page 7 IPROXX 2 Safety notices  You should only use spare parts which have been manufactured or approved by DewertOkin. On- ly these parts will guarantee a sufficient level of safety. Product labelling  The rating plates shown are only an example. The specifications for your handset may differ from this illustration.
  • Page 8 Safety notices IPROXX 2 Use in dry rooms only! Conformity mark Follow all special disposal instructions! Always follow the instructions in the manual! 74829 6.0...

  • Page 9: Handset Description

    IPROXX 2 Handset description Handset description The IPROXX 2 handset is used to control and adjust the end product. Adjustments are made using the keypad and the adjustment functionality can be locked or unlocked on the handset. IPROXX 2 handset The variants of the IPROXX 2 handset differ in the number of adjustment function keys (movement keys), the lock function, and the optional mounting clip.
  • Page 10 Handset description IPROXX 2 ® IPROXX 2/SMP/Bluetooth handset IPROXX 2/SMP/Bluetooth handset ® A Function and movement keys B Function/CARE LED C Mounting clip (optional) D Status LED E Power-ON LED ® F Bluetooth G Connection cable for the handset H Status LED for Bluetooth ®...
  • Page 11 IPROXX 2 Handset description Rear of the handset, with turnkey lock Turnkey lock on the rear of the handset (for the IPROXX 2/SM, SM + and SMP models) A Socket key B Mounting clip (optional) C Turnkey lock with 2-stage locking function D Turnkey lock with 3-stage locking function (for the IPROXX 2/SM model) (for the IPROXX 2/SM+ model)

  • Page 12: Technical Specifications

    Handset description IPROXX 2 Technical specifications Connection voltage 24 – 29 V DC Protection degree IPX6 Protection class Radio frequency (Option: Bluetooth 2.4 GHz ® Length x width x height 170 mm x 60 mm x 51 mm (with mounting clip) Weight with cable Approx.

  • Page 13: Operation

    IPROXX 2 Operation Operation  When this document refers to the model IPROXX 2/SMP, this also includes the model IPROXX 2/SMP/Bluetooth ® General information Ensuring single-fault protection (for the IPROXX 2/SM, SM + and SMP models) For ensuring single-fault safety, drive motions can be disabled using the integrated lock function. This function makes use of an electro-mechanical switch to break the motor circuit.

  • Page 14: Key Functions For The Iproxx 2 Handset (An Example)

    Operation IPROXX 2 Key functions for the IPROXX 2 handset (an example) IPROXX 2 handset with 11 keys A Function and movement keys B Function/CARE LED D Status LEDs (only with the IPROXX 2/SMP E Optional: Status LED (only for the model) IPROXX 2/SM, SM + and SMP models) F Lamp key...

  • Page 15: Key Functions For The Iproxx 2/Smp/Bluetooth

    IPROXX 2 Operation ® Key functions for the IPROXX 2/SMP/Bluetooth handset Keypad of the IPROXX 2 handset, with 8 movement keys and Bluetooth ® A Function and movement keys B Function/CARE LED D Status LEDs E Power-ON LED G Connection cable for the handset ®...
  • Page 16 Operation IPROXX 2 Function Adjusting motion Adjustments to back section Upward Downward Adjustments to leg section Upward Downward Reset of back and leg sections Upward Downward Adjustment to stroke Upward Downward Anti-Trendelenburg Head upward / foot downward Trendelenburg Head downward / foot upward Turns lamp on and off Switch Bluetooth on and off...

  • Page 17: Enabling And Disabling The Key Functions Mechanically

    IPROXX 2 Operation Enabling and disabling the key functions mechanically Using the lock function The keys can be enabled or locked by using the key to rotate the turnkey lock located on the rear of the IPROXX 2. The positions of the turnkey lock are marked by icons. Icons on the rear of the handset.
  • Page 18 Operation IPROXX 2 Variants of the locking function The handset model IPROXX 2/SM has a 2-stage locking function. The models IPROXX 2/SM+ and IPROXX 2/SMP have a 3-stage locking function (SMP = programming mode for nursing staff). Functionality of the handset model IPROXX 2/SM Rear of handset IPROXX 2/SM A Socket key B Handset keys are unlocked...
  • Page 19 IPROXX 2 Operation Functionality of the handset model IPROXX 2/SM+ Rear of handset IPROXX 2/SM+ A Socket key B Handset keys are unlocked C Functions enabled for the patient D Handset keys are locked 74829 6.0...
  • Page 20 Operation IPROXX 2 ® Functions of the handset model IPROXX 2/SMP (Bluetooth Rear of handset IPROXX 2/SMP (Bluetooth ® A Socket key B Handset keys are unlocked C Functions enabled for the patient D Handset keys are locked E Programming mode for nursing staff 74829 6.0...

  • Page 21: Key Functions

    IPROXX 2 Operation Key functions 4.7.1 Locking the keys Rotate the turnkey on the back side of the handset in order to lock the key functions. 1 Insert the socket key in the turnkey lock. 2 Turn the key until the arrow on the turnkey lock is pointing towards (as shown in the illustra- tions on pages 17, 18 and 19).

  • Page 22: Display Functions

    Operation IPROXX 2 ® 4.7.4 Enabling the programming function for nursing staff (for the IPROXX 2/SMP(Bluetooth When using the handset model IPROXX 2/SMP(Bluetooth ), the key lock function can be pro- ® grammed by the nursing staff. 1 Insert the socket key in the turnkey lock. 2 Turn the key until the arrow on the turnkey lock is pointing towards (as shown in the illustra- tion on page 19).

  • Page 23: Ios Smartphone / Tablet

    IPROXX 2 Operation iOS smartphone / tablet 4.9.1 Installing the app on your smartphone / tablet Open the app store   Download the "Dewert smart remote" app from the app store 4.9.2 Discovering new devices on your iOS smartphone / tablet The IPROXX 2/SMP/Bluetooth model can be discovered on your smartphone so that you can use ®...
  • Page 24 Operation IPROXX 2 b) Discovery for more smartphones / tablets 1 Insert the key into the turnkey lock (on the IPROXX 2/SMP/Bluetooth ® 2 Turn the key until the arrow on the turnkey lock is set to "Changing mode" ( ).
  • Page 25 IPROXX 2 Operation 4.9.3 Setting the range threshold 1 Insert the socket key in the turnkey lock. 2 Turn the key until the arrow on the turnkey lock is pointing towards (as shown in the illustra- tion on page 19). 3 Depending on the desired range (refer to the figure below): Press and hold the corresponding lev- el key.
  • Page 26 Operation IPROXX 2 4.9.4 Deleting a connection between the smartphone and the IPROXX 2 handset 1 Go the "Settings" on the smartphone / tablet and select Bluetooth ® 2 Press the icon next to the entry IPROXX ..3 Select "Forget This Device". 4 Select "Forget This Device"...
  • Page 27 IPROXX 2 Operation 4.9.6 Unlocking the Auto Lock feature on the smartphone / tablet The Auto Lock is automatically switched on after the specified time of 10 - 30 seconds; this is shown using the lock icon. 1 Press the lock icon until the app has been unlocked.

  • Page 28: 4.10 Android Smartphone / Tablet

    Operation IPROXX 2 4.10 Android smartphone / tablet 4.10.1 Installing the app on your smartphone / tablet  Open the play store  Download the "Dewert remote for beds" app from the play store 4.10.2 Discovering new devices on your Android smartphone / tablet The IPROXX 2/SMP/Bluetooth model can be discovered on your smartphone so that you can use ®...
  • Page 29 IPROXX 2 Operation b) Discovery for more smartphones / tablets 1 Insert the key into the turnkey lock (on the IPROXX 2/SMP/Bluetooth ® 2 Turn the key until the arrow on the turnkey lock is set to "Changing mode" ( ).
  • Page 30 Operation IPROXX 2 4.10.3 Setting the range threshold 1 Insert the socket key in the turnkey lock. 2 Turn the key until the arrow on the turnkey lock is pointing towards (as shown in the illustra- tion on page 19). 3 Depending on the desired range (refer to the figure below): Press and hold the corresponding lev- el key.
  • Page 31 IPROXX 2 Operation 4.10.4 Deleting a connection between the smartphone and the IPROXX 2 handset 1 Go the "Settings" on the smartphone / tablet and select Bluetooth. 2 Press the icon next to the entry IPROXX ..3 Select "Disconnect". ...
  • Page 32 Operation IPROXX 2 4.10.8 Time until the device locks The safety lock is automatically switched on after the specified time (5 - 30 seconds); this is shown using the lock icon. 4.10.9 Unlocking the safety lock feature on the smartphone / tablet 1 Press the lock icon until the app has been unlocked.

  • Page 33: Troubleshooting

    IPROXX 2 Troubleshooting Troubleshooting LED signal/error Meaning Measure / Action No movements can be carried - The handset is locked. - Use the turnkey to ena- out on the end product. ble the handset. - The locking mechanism is - Check the locking malfunctioning.

  • Page 34: Maintenance

    Maintenance IPROXX 2 Maintenance Type of check Explanation Time interval Check the function and safe- A qualified electrician should car- Periodic inspections can ty of the electrical system. ry out this inspection. be carried out at intervals based on the risk as- sessment which you con- duct for your end product.

  • Page 35: Disposal

    IPROXX 2 Disposal Disposal Packaging material The packaging material should be sorted into recyclable components and then disposed of in ac- cordance with the appropriate national environmental regulations (in Germany according to the recy- cling law KrWG from 01.06.2012; internationally according to the EU Directive 2008/98/EC (Waste Framework Directive WFD as of 12.12.2008)).

  • Page 36: Eu Declaration Of Conformity

    EU Declaration of Conformity EG-Konformitätserklärung Nach Anhang IV der EMV-Richtlinie 2014/30/EU In compliance with Appendix IV of the EMC-Directive 2014/30/EU Nach Anhang IV der EU-Niederspannungsrichtlinie In compliance with Appendix IV of the LVD-Directive 2014/35/EU 2014/35/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS (inkl.

  • Page 37: Eu Declaration Of Conformity

    EG-Konformitätserklärung EU Declaration of Conformity (Ausführung 2,4GHz) (Version 2.4GHz) Nach Anhang VI der RED-Richtlinie 2014/53/EU In compliance with Appendix VI of the RED-Directive 2014/53/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS (inkl. Delegierte Richtlinie (EU) 2015/863) Directive 2011/65/EU (incl.

  • Page 38: Additional Information

    Additional information IPROXX 2 The following standards and norms were used in the versions with at least IPX4 and higher in according to EN 60601-1:2006 + A1:2013, IEC 60601-1:2005 + A1:2012 (short description: Edition 3.1), Med- ical electrical equipment. EN 60601-1-2:2015, IEC 60601-1-2:2014 (short description: Edition 4.0), EMC IEC/EN 60601-1, section 7.8.1 Colours of signal lights IEC/EN 60601-1, section 8.10...

  • Page 39: Fcc Warning

    FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation.
  • Page 40 DewertOkin GmbH Weststrasse 1 Kirchlengern 32278, Germany Tel: +49 (0)5223/979-0 Fax.: +49 (0)5223/75182 http://www.dewertokin.de Info@dewertokin.de ID No.: 74829...
