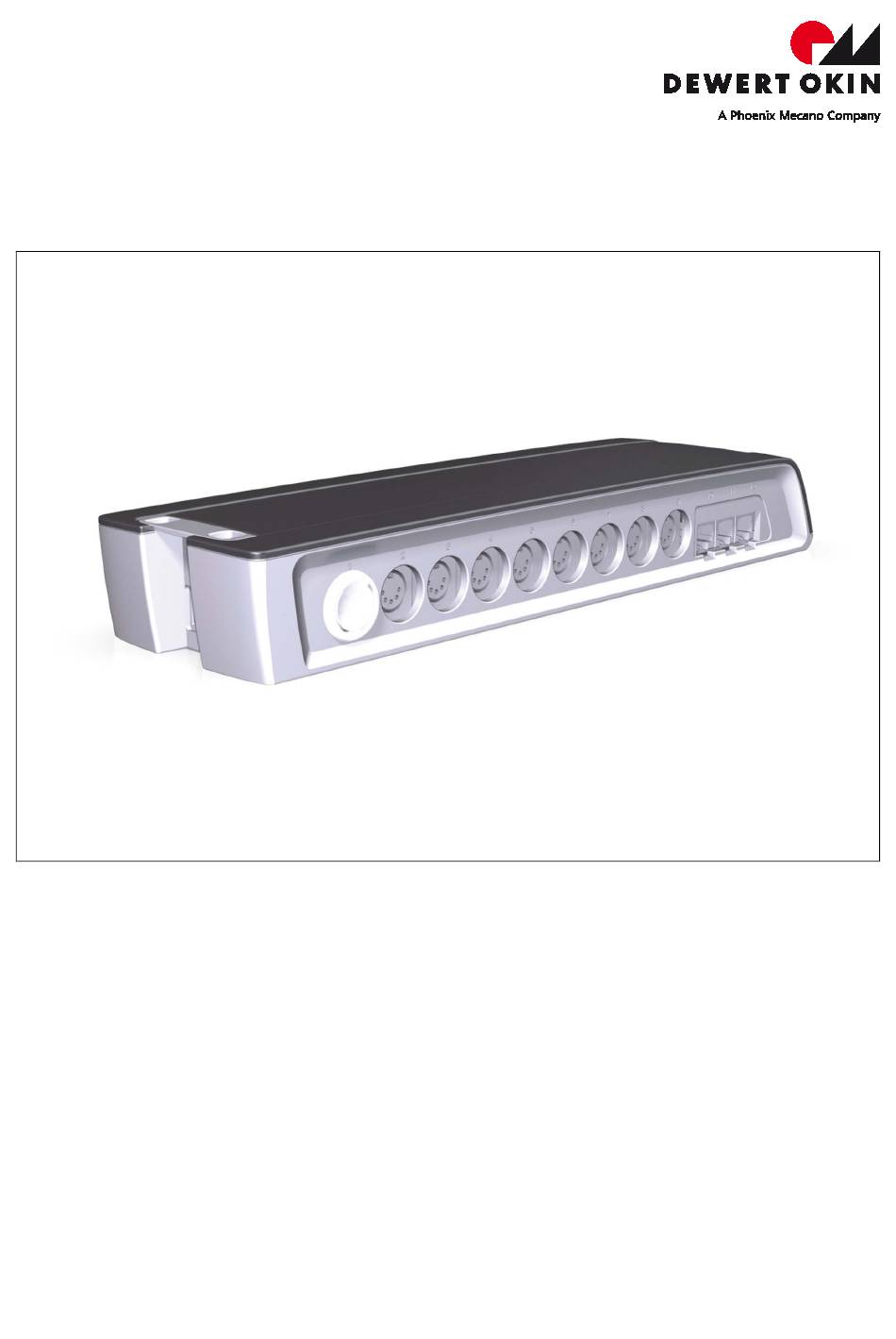

- Page 1 CONTROL UNIT HE-300 Installation Instructions (Translation of the original installation instructions)
-
Page 3: Foreword
CONTROL UNIT HE-300 Foreword Foreword Disclaimer and exclusion of liability DewertOkin is not responsible for damage resulting from: • failure to observe these instructions, • changes made to this product which have not been approved by DewertOkin, or • the use of replacement parts which have not been approved or manufactured by DewertOkin. ... -
Page 4: Table Of Contents
Table of contents CONTROL UNIT HE-300 Table of contents Foreword Disclaimer and exclusion of liability Creation of a complete operating instruction manual for the entire end product Usage in medical products General Information About these installation instructions Conventions used Safety notices Proper and intended usage Selection and qualification of personnel Ratings plate... -
Page 5: General Information
CONTROL UNIT HE-300 General Information General Information About these installation instructions In order to install the CONTROL UNIT HE-300 successfully and safely in the end product, these in- stallation instructions must be observed. These instructions are not an operating manual for the end product. -
Page 6: Safety Notices
Safety notices CONTROL UNIT HE-300 Safety notices Proper and intended usage The CONTROL UNIT HE-300 is intended for use: • as a control unit for suitable DewertOkin drive systems, • for HOME applications (in beds, reclining chairs, etc.), • with the HE-300 SMPS power supply. CAUTION Risk of accident This CONTROL UNIT HE-300 should only be used for the applications described above. -
Page 7: Selection And Qualification Of Personnel
CONTROL UNIT HE-300 Safety notices Selection and qualification of personnel This CONTROL UNIT HE-300 should only be installed into the end product by someone who has completed training in electronic motor assembly or has equivalent qualifications. You should only install the CONTROL UNIT HE-300 when you are qualified to do so. Otherwise, a properly qualified person should be found for this task. -
Page 8: Ratings Plate
Safety notices CONTROL UNIT HE-300 Ratings plate The ratings plate shown is an example; The specifications for your CONTROL UNIT HE-300 may differ from this illustration. Figure 1 Ratings plate for the CONTROL UNIT HE-300 (example) HE-300 Model name xxxxx Article number 24 - 29V... -
Page 9: Possible Combinations
CONTROL UNIT HE-300 Possible combinations Possible combinations The CONTROL UNIT HE-300 can be used together with multiple individual drives, massage mo- tors and accessories that have been approved by DewertOkin. A tailored system consists of the combination of control unit, single drive, massage motor, accesso- ries, and hand-held remote. -
Page 10: Description

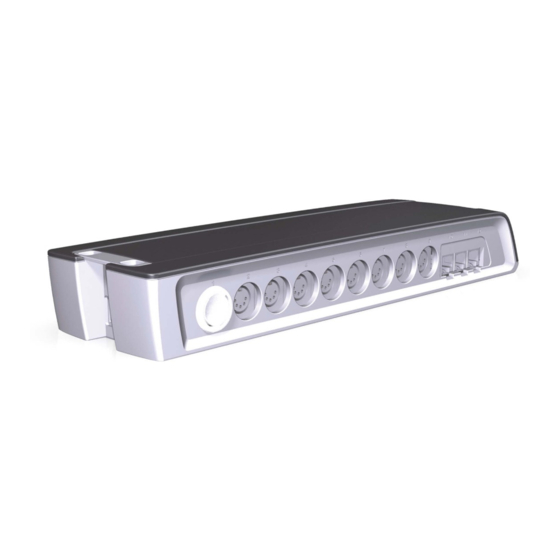

Description CONTROL UNIT HE-300 Description The CONTROL UNIT HE-300 is a control unit and power supply for one or more DewertOkin drives. An external DewertOkin power supply unit is used to connect the CONTROL UNIT HE-300 to the mains power. The CONTROL UNIT HE-300 is equipped with built-in radio receiver. Components The housing of the CONTROL UNIT HE-300 has a connection for an external DewertOkin power supply, as well as connections for single drives, massage motors and various accessories (refer to... -
Page 11: Technical Specifications
CONTROL UNIT HE-300 Technical specifications Technical specifications Input voltage 24 – 29 V Current consumption at nominal opera- Max. 5 A in intermittent duty, 2 min. ON / 18 min. tions Max. 1.5 A continuous duty (massage motors, Blue- ® tooth receiver, etc. - Page 12 Technical specifications CONTROL UNIT HE-300 Figure 3 Dimensions of the CONTROL UNIT HE-300, top view (in mm) Figure 4 Dimensions of the CONTROL UNIT HE-300, side view (in mm) 79822(-)
-
Page 13: Installation
CONTROL UNIT HE-300 Installation Installation Safety notices to observe during installation Basic safety rules must be followed in order to ensure that the end product can be continually op- erated in a safe manner. These rules must be observed while using the end product and while in- stalling the CONTROL UNIT HE-300 in the end product. - Page 14 Installation CONTROL UNIT HE-300 1 Mark the holes and drill the four screw points in the end product. 2 Tighten the screws so that they project slightly out of your end product. 3 Put the CONTROL UNIT HE-300 onto the four screws at the four mounting points. 4 Pull the CONTROL UNIT HE-300 gently in the direction shown by the arrow.
- Page 15 CONTROL UNIT HE-300 Installation 6.2.2 Electrical connection CAUTION Electric shock Electrical components should be connected or disconnected only when the power supply cord is unplugged. There is a delay after the supply voltage is applied before the device actually turns on. Wait at least 10 seconds before initial commissioning.
-
Page 16: Information About Creating Your Operating Manual
Information about creating your Operating Manual CONTROL UNIT HE-300 Information about creating your Operating Manual The factual information contained within may be used when you are creating the end-product man- ual. The installation instructions do not contain all information required for the safe operation of the end product. - Page 17 CONTROL UNIT HE-300 Information about creating your Operating Manual Power-on time / intermittent operations The CONTROL UNIT HE-300 has been designed for intermittent operations. Intermittent operation is an operational mode where the drive must pause after a specified maximum period of operation (power-on time).
-
Page 18: Troubleshooting
Troubleshooting CONTROL UNIT HE-300 Troubleshooting CONTROL UNIT HE-300 / DewertOkin POWER SUPPLY This chapter describes troubleshooting methods for fixing problems. If you experience an error that is not listed in this table, please contact your supplier. Only qualified specialists who have received electrician training should carry out troubleshooting and repairs. -
Page 19: Maintenance
CONTROL UNIT HE-300 Maintenance Maintenance You should only use spare parts which have been manufactured or approved by DewertOkin. Only these parts will guarantee a sufficient level of safety. Maintenance Type of check Explanation Time interval Check the function and safety A qualified electrician should carry Periodic inspections can of the electrical system. -
Page 20: 10. Disposal
Disposal CONTROL UNIT HE-300 10. Disposal 10.1 Packaging material The packaging material should be sorted into recyclable components and then disposed of in ac- cordance with the appropriate national environmental regulations (in Germany according to the re- cycling law KrWG from 01.06.2012; internationally according to the EU Directive 2008/98/EC (Waste Framework Directive WFD as of 12.12.2008)). -
Page 21: Eu Declaration Of Conformity
EG-Konformitätserklärung EU Declaration of Conformity In compliance with Appendix IV of the EMC-Directive Nach Anhang IV der EMV-Richtlinie 2014/30/EU 2014/30/EU In compliance with Appendix IV of the LVD-Directive Nach Anhang IV der EU-Niederspannungsrichtlinie 2014/35/EU 2014/35/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS (inkl. -
Page 22: Eu Declaration Of Conformity
EG-Konformitätserklärung EU Declaration of Conformity (Ausführung 2,4GHz) (Version 2.4GHz) In compliance with Appendix VI of the RED-Directive Nach Anhang VI der RED-Richtlinie 2014/53/EU 2014/53/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS Directive 2011/65/EU (inkl. - Page 23 DewertOkin GmbH Weststrasse 1 Kirchlengern 32278, Germany Tel: +49(0)5223/979-0 Fax.: +49 0 522375182 http://www.dewertokin.de Info@dewertokin.de ID No.: 79822...
