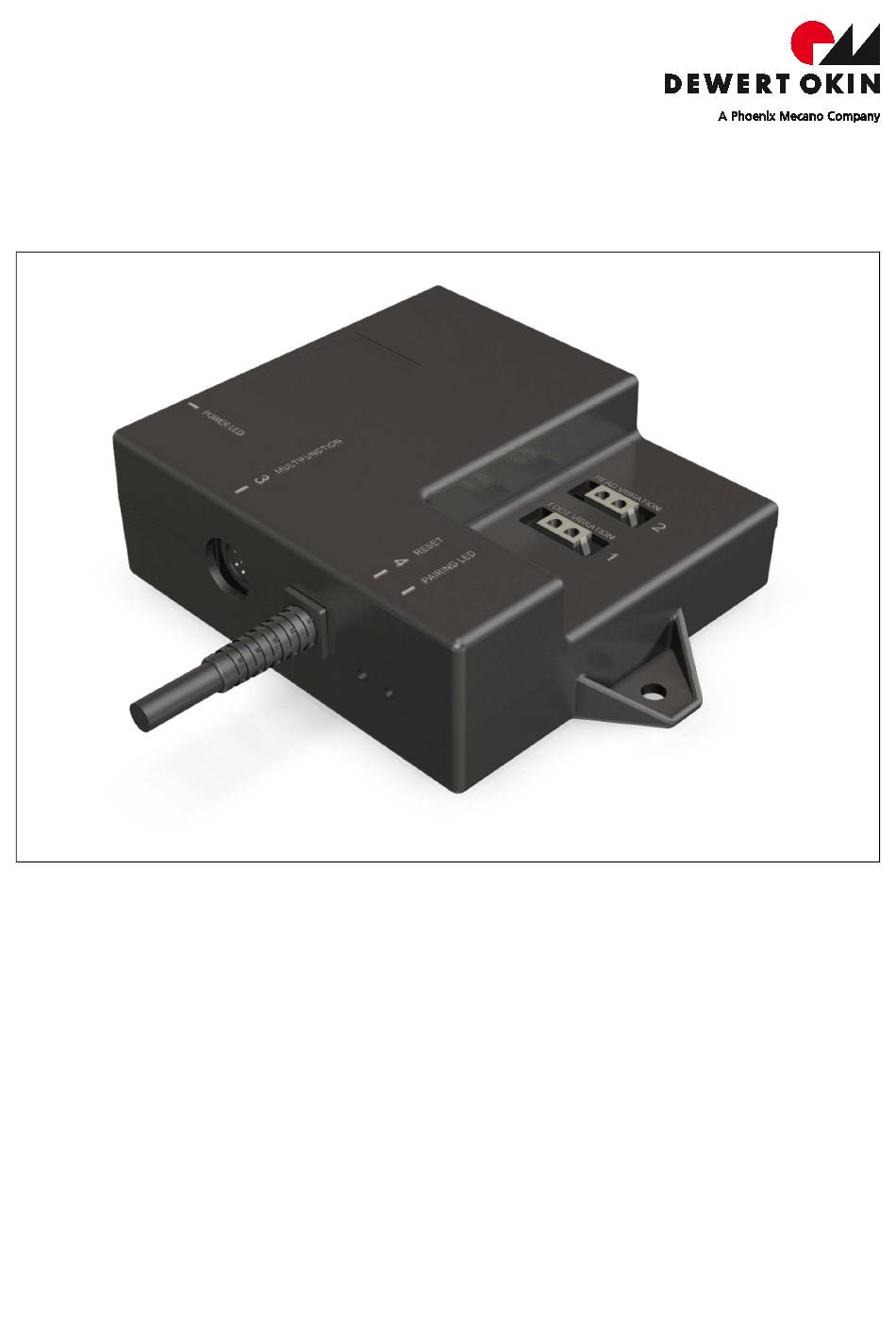

- Page 1 CONTROL UNIT HE200 Installation Instructions (Translation of the original installation instructions)
-
Page 3: Foreword
CONTROL UNIT HE200 Foreword Foreword Disclaimer and exclusion of liability DewertOkin is not responsible for damage resulting from: • failure to observe these instructions, • changes made to this product which have not been approved by DewertOkin, or • the use of replacement parts which have not been approved or manufactured by DewertOkin. ... -
Page 4: Table Of Contents
Table of contents CONTROL UNIT HE200 Table of contents Foreword Disclaimer and exclusion of liability Creation of a complete operating instruction manual for the entire end product Table of contents General Information About these installation instructions Conventions used Safety notices Proper and intended usage Selection and qualification of personnel Ratings plate... -
Page 5: General Information
CONTROL UNIT HE200 General Information General Information About these installation instructions In order to install the CONTROL UNIT HE200 successfully and safely in the end product, these in- stallation instructions must be observed. These instructions are not an operating manual for the end product. -
Page 6: Safety Notices
Safety notices CONTROL UNIT HE200 Safety notices Proper and intended usage The CONTROL UNIT HE200 is intended for use: • as a control unit for suitable DewertOkin drive systems, • for HOME applications (in beds, reclining chairs, etc.), CAUTION Risk of accident This CONTROL UNIT HE200 should only be used for the applications described above. -
Page 7: Selection And Qualification Of Personnel
CONTROL UNIT HE200 Safety notices Selection and qualification of personnel The installation of the CONTROL UNIT HE200 in the end product may only be performed by quali- fied personnel. 2.2.1 Electrical safety CAUTION Electric shock Be careful; there is a risk of electrical shock! Before installing, make sure that you disconnect the external DewertOkin power supply for the CONTROL UNIT HE200 from the power outlet! The CONTROL UNIT HE200 should not be used: You must properly dispose of malfunctioning or broken units. -
Page 8: Ratings Plate
Safety notices CONTROL UNIT HE200 Ratings plate The ratings plate shown is an example; The specifications for your CONTROL UNIT HE200 may differ from this illustration. Figure 1 Ratings plate for the CONTROL UNIT HE200 (example) HE200 Model name xxxxx Article number Input voltage... -
Page 9: Possible Combinations
CONTROL UNIT HE200 Possible combinations Possible combinations The CONTROL UNIT HE200 can be used together with multiple individual drives, massage motors and accessories that have been approved by DewertOkin. A tailored system consists of the combination of control unit, single drive, massage motor, accesso- ries, and hand-held remote. -
Page 10: Description

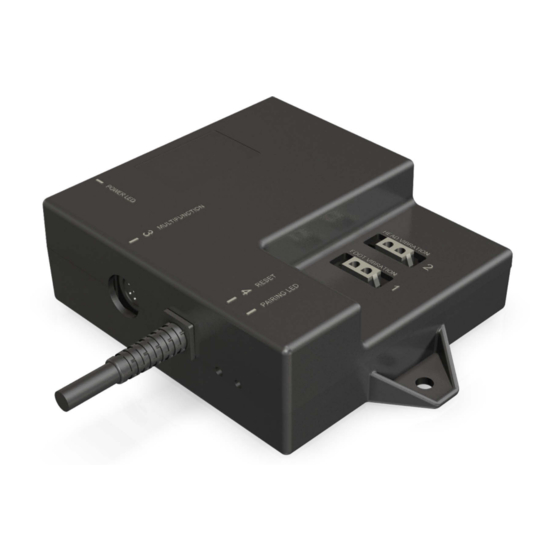

Description CONTROL UNIT HE200 Description The CONTROL UNIT HE200 is a control unit and for one or more DewertOkin massage motors. An external DewertOkin power supply unit is used to connect the CONTROL UNIT HE200 to the mains power. The CONTROL UNIT HE200 is equipped with built-in radio receiver. Components The housing of the CONTROL UNIT 258-4 has a connection for an external DewertOkin drive system, as well as connections for massage motors and various accessories. -
Page 11: Technical Specifications
CONTROL UNIT HE200 Technical specifications Technical specifications Input voltage 24 – 29 V Permissible total current consumption Max. 6 A in intermittent duty, 2 min. ON / 18 min. OFF under nominal operating conditions Current consumption from the massage Max. 1.0 A in continuous operations motor Operating mode 1) Intermittent duty 2 min./18 min. - Page 12 Technical specifications CONTROL UNIT HE200 Figure 3 Dimensions of the CONTROL UNIT HE200, top view (in mm) Figure 4 Dimensions of the CONTROL UNIT HE200, side view (in mm) 82687(-)
-
Page 13: Installation
CONTROL UNIT HE200 Installation Installation Safety notices to observe during installation Basic safety rules must be followed in order to ensure that the end product can be continually op- erated in a safe manner. These rules must be observed while using the end product and while in- stalling the CONTROL UNIT HE200 in the end product. - Page 14 Installation CONTROL UNIT HE200 CAUTION You should only connect and disconnect the cables when they are completely disconnected from any live current! Screw the control unit onto the end product (as shown in Figure 6 ). Use the mounting holes shown in Figure 5 located on the control unit.
- Page 15 CONTROL UNIT HE200 Installation 6.2.2 Electrical connection CAUTION Electric shock Electrical components should be connected or disconnected only when the power supply cord is unplugged. There is a delay after the supply voltage is applied before the device actually turns on. Wait at least 7 seconds before initial commissioning.
-
Page 16: Information About Creating Your Operating Manual
Information about creating your Operating Manual CONTROL UNIT HE200 Information about creating your Operating Manual The factual information contained within may be used when you are creating the end-product man- ual. The installation instructions do not contain all information required for the safe operation of the end product. - Page 17 CONTROL UNIT HE200 Information about creating your Operating Manual Shutting down the CONTROL UNIT HE200 in the event of an emergency In an emergency, disconnect the mains power plug from its socket in order to shut off the con- nected drive, the accessory, and the massage motors. The power plug must always be accessible during operations so that it is possible to shut down the CONTROL UNIT HE200.
-
Page 18: Troubleshooting
Troubleshooting CONTROL UNIT HE200 Troubleshooting This chapter describes troubleshooting methods for fixing problems. If you experience an error that is not listed in this table, please contact your supplier. Only qualified specialists who have received electrician training should carry out troubleshooting and repairs. -
Page 19: Maintenance
CONTROL UNIT HE200 Maintenance Maintenance The CONTROL UNIT HE200 requires no maintenance. Cleaning and care The CONTROL UNIT HE200 was designed so that it would be easy to clean. Its smooth surfaces simplify the cleaning process. Clean the CONTROL UNIT HE200 as needed using a dry cloth. NOTICE •... -
Page 20: 10. Disposal
Disposal CONTROL UNIT HE200 10. Disposal 10.1 Packaging material The packaging material should be sorted into recyclable components and then disposed of in ac- cordance with the appropriate national environmental regulations (in Germany according to the re- cycling law KrWG from 01.06.2012; internationally according to the EU Directive 2008/98/EC (Waste Framework Directive WFD as of 12.12.2008)). -
Page 21: Eu Declaration Of Conformity
EG-Konformitätserklärung EU Declaration of Conformity In compliance with Appendix IV of the EMC-Directive Nach Anhang IV der EMV-Richtlinie 2014/30/EU 2014/30/EU In compliance with Appendix IV of the LVD-Directive Nach Anhang IV der EU-Niederspannungsrichtlinie 2014/35/EU 2014/35/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS (inkl. - Page 22 EG-Konformitätserklärung EU Declaration of Conformity (Ausführung 2,4GHz) (Version 2.4GHz) In compliance with Appendix VI of the RED-Directive Nach Anhang VI der RED-Richtlinie 2014/53/EU 2014/53/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS Directive 2011/65/EU (inkl.
- Page 23 DewertOkin GmbH Weststrasse 1 Kirchlengern 32278, Germany Tel: +49(0)5223/979-0 Fax.: +49 0 522375182 http://www.dewertokin.de Info@dewertokin.de ID No.: 82687...
