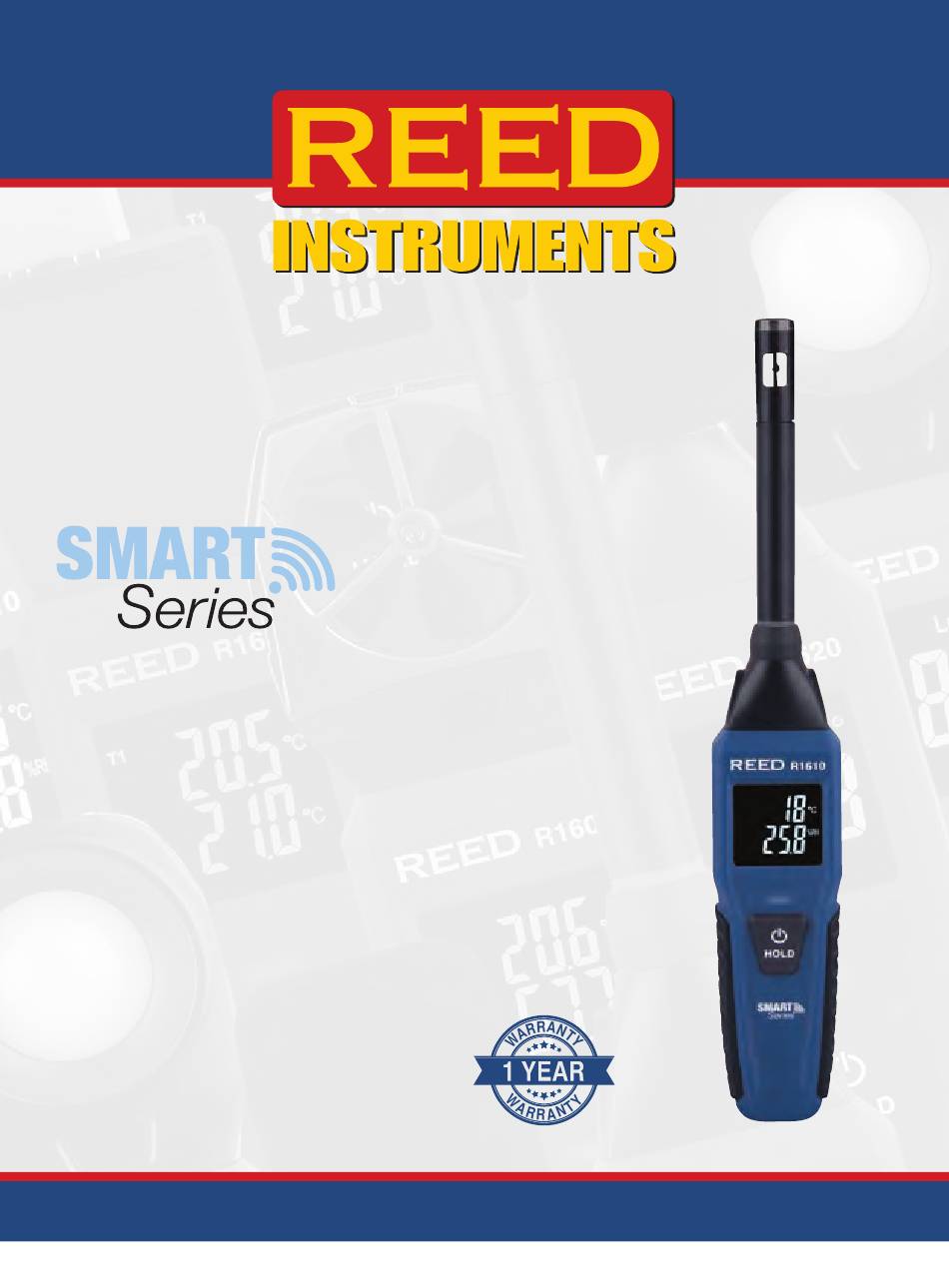

- Page 1 R1610 Thermo- Hygrometer White background 1 YEAR 1 AN Instruction Transparent background 1 AN Manual 1 YEAR White www.REEDInstruments.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 FCC Statement ................... 4 FCC RF Exposure Statement ..............4 IC statement ....................5 IC RF Exposure Statement ..............5 Features ...................... 6 Included ...................... 6 Specifications ..................7-8 Instrument Description ................ -
Page 3: Introduction
Introduction Thank you for purchasing your REED R1610 Thermo-Hygrometer, Bluetooth Smart Series. Please read the following instructions carefully ® before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Ic Statement
IC statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 6: Features
Features • Measures ambient temperature and humidity • Easy to operate, designed for one hand operation • Bendable probe shaft enables easy access to ducts • Integrated display provides flexibility for use without mobile device • Magnetic backing allows instrument to be mounted to metallic surfaces •... -
Page 7: Specifications
Specifications Temperature Measuring Range: -4 to 140°F (-20 to 60°C) Accuracy: -4 to 32°F (-20 to 0°C): ±1.6°F (0.8°C) 32 to 140°F (0 to 60°C): ±1°F (0.5°C) Resolution: 0.1°F/°C Humidity Measuring Range: 0 to 100% RH Accuracy: 20 to 80% RH: ±3.5% rdg. 0 to 20% &... - Page 8 Connectivity: Bluetooth ® Bluetooth Range: Up to 246' (75m) ® Max # of Connected Devices: Software: REED Smart Series App (iOS and Android) App Supported Languages: English, French Product Certifications: CE, UKCA, FCC, IC ID Maximum Operating Altitude: 6561' (2000m) Operating Temperature: -4 to 140°F (-20 to 60°C) Storage Temperature:...
-
Page 9: Instrument Description
Instrument Description 1. Temperature and 5. Tripod Mounting Screw Humidity Sensor 6. Battery Cover Lock 2. LCD Display 7. Battery Cover 3. POWER/HOLD Button 4. Bluetooth Status ® Indicator Light GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 10: Display Description
Display Description 1. Temperature 4. Temperature Unit Measurement Value of Measure 2. Relative Humidity 5. Data Hold Indicator Measurement Value 6. Bluetooth Indicator ® 3. Humidity Unit of Measure 7. Low Battery Indicator GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 11: Reed Smart Series App
REED Smart Series App REED Smart Series instruments can be connected wirelessly to your smartphone or tablet. All measurement data is transmitted via Bluetooth ® to the free REED Smart Series app. The app allows users to analyze data, generate reports and send information by email directly from a mobile device. -
Page 12: Operating Instructions
Operating Instructions Power ON/OFF Turn the meter ON by holding down the POWER button for approximately 2 seconds. To turn the meter OFF, press and hold the POWER button for approximately 4 seconds. Backlight After powering the meter ON, the LCD Backlight will turn on automatically. In order to preserve battery power, the LCD will turn off after approximately 15 seconds. -
Page 13: Selecting The Temperature Unit Of Measure
Selecting the Temperature Unit of Measure When the meter is powered on, press and hold the POWER button to toggle between Fahrenheit and Celsius. Enabling/Disabling Data Hold Press the HOLD button to freeze the current reading on the display. Press the HOLD button again to resume normal operation. Enabling/Disabling Auto Power OFF To preserve battery life, the meter is programmed to turn itself off after 30 minutes of inactivity. -
Page 14: Applications
Applications • Environmental studies • Food distribution • HVAC/R system installation/evaluation • Greenhouses and industrial spaces • Saunas • Humidors • Museums • Lab Monitoring Accessories and Replacement Parts CA-05A Medium Soft Carrying Case R8888 Medium Hard Carrying Case R9933 Humidity Calibration Standard, 33% R9975 Humidity Calibration Standard, 75% R9980 Humidity Calibration Kit (33% and 75%) R1500 Tripod... -
Page 15: Product Care
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 16: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDInstruments.com for the most up-to-date manuals, datasheets, product guides and software. - Page 17 Vane Anemometer Thermo-Hygrometer Sound Level Meter Thermocouple Thermometer Light Meter Connect wirelessly to your smartphone or tablet via the REED Smart Series App Bluetooth 5.0 provides connectivity to ® instruments up to 246' (75m) away Analyze data and create custom reports that can be saved on a mobile device or sent by email GET IT ON GET IT ON...
- Page 18 TEST & MEASURE WITH CONFIDENCE Access our Product Catalog Over 200 portable test and measurement instruments www.REEDInstruments.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 19 www.REEDInstruments.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 20 NOTES www.REEDInstruments.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
