- Page 1 R1620 Sound Level Meter White background 1 YEAR 1 AN Instruction Transparent background 1 AN 1 YEAR Manual White www.REEDInstruments.com 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 FCC Statement ................... 4 FCC RF Exposure Statement ..............4 IC statement ....................5 IC RF Exposure Statement ..............5 Features ...................... 6 Included ...................... 6 Specifications ..................7-8 Instrument Description ................ -
Page 3: Introduction
Introduction Thank you for purchasing your REED R1620 Sound Level Meter, Bluetooth ® Smart Series. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product... -
Page 4: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Ic Statement
IC statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence- exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 6: Features
Features • High accuracy of ±1.5dB • A & C frequency weighting • Fast & Slow time weighting • Easy to operate, designed for one hand operation • Integrated display provides flexibility for use without mobile device • Magnetic backing allows instrument to be mounted to metallic surfaces •... -
Page 7: Specifications
Specifications Measuring Range: 30 to 130dB Accuracy: ±1.5dB (at 1kHz) Resolution: 0.1dB Display: Enhanced Black Twisted Nematic (EBTN) LCD Display Size: 1.3" (34mm) Backlit Display: Data Hold: Time Weighting: Fast/Slow (125mS and 1s) Frequency Range: 31.5Hz to 8kHz Refresh Rate: Fast 0.5 times/second, Slow 1 times/second Frequency Weighting:... - Page 8 Connectivity: Bluetooth ® Bluetooth Range: Up to 246' (75m) ® Max # of Connected Devices: Software: REED Smart Series App (iOS and Android) App Supported Languages: English, French Product Certifications: CE, UKCA, FCC, IC ID Maximum Operating Altitude: 6561' (2000m) Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature:...
-
Page 9: Instrument Description

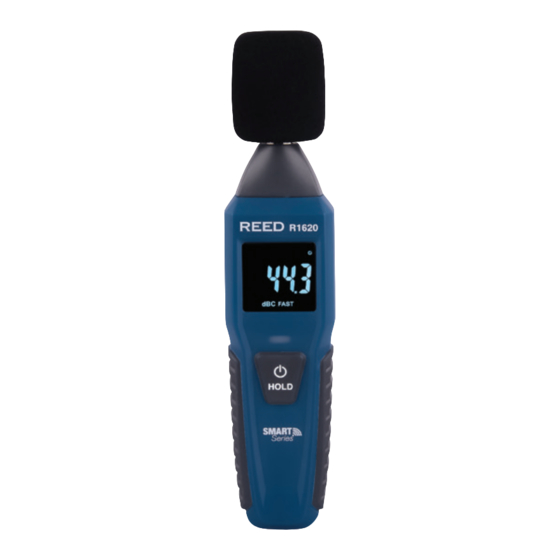

Instrument Description 1. Windscreen 5. Microphone 6. Tripod Mounting Screw 2. LCD Display 3. POWER/HOLD Button 7. Battery Cover Lock 8. Battery Cover 4. Bluetooth Status ® Indicator Light 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 10: Display Description
Display Description 1. Data Hold Indicator 5. Frequency Weighing Indicator 2. Bluetooth Indicator ® 6. Time Weighting Indicator 3. Low Battery Indicator 4. Sound Measurement Value 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 11: Reed Smart Series
REED Smart Series App REED Smart Series instruments can be connected wirelessly to your smartphone or tablet. All measurement data is transmitted via Bluetooth ® to the free REED Smart Series app. The app allows users to analyze data, generate reports and send information by email directly from a mobile device. -
Page 12: Operating Instructions
Operating Instructions Power ON/OFF Turn the meter ON by holding down the POWER button for approximately 2 seconds. To turn the meter OFF, press and hold the POWER button until the 3 second shutdown timer begins as indicated by 3OFF, 2OFF and 1OFF. -
Page 13: Selecting Frequency Weighting & Response Time
Selecting Frequency Weighting & Response Time When the meter is powered on, press and hold the POWER button until SET1 appears, indicating the meter is in Frequency Weighting selection mode. The default setting will be dBA. To toggle between dBA and dBC, press the POWER button. -
Page 14: Calibration Procedure
Calibration Procedure To calibrate the REED R1620, an external calibrator that can provide a 94.0dB signal at 1kHz (REED R8090) and a mini screw-driver (REED R1300) are required. Follow the steps below to calibrate the instrument. Open the battery compartment and locate the two calibration potentiometers. -
Page 15: Battery Replacement
Battery Replacement When the low battery icon appears on the LCD display, the batteries will need to be replaced. In order to replace the batteries, proceed with the following steps: Turn off the meter. Unlock the battery compartment located at the back of the meter. Remove the battery cover. -
Page 16: Product Care
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 17: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDInstruments.com for the most up-to-date manuals, datasheets, product guides and software. - Page 18 Vane Anemometer Thermo-Hygrometer Sound Level Meter Thermocouple Thermometer Light Meter Connect wirelessly to your smartphone or tablet via the REED Smart Series App Bluetooth 5.0 provides connectivity to ® instruments up to 246' (75m) away Analyze data and create custom reports that can be saved on a mobile device or sent by email GET IT ON GET IT ON...
