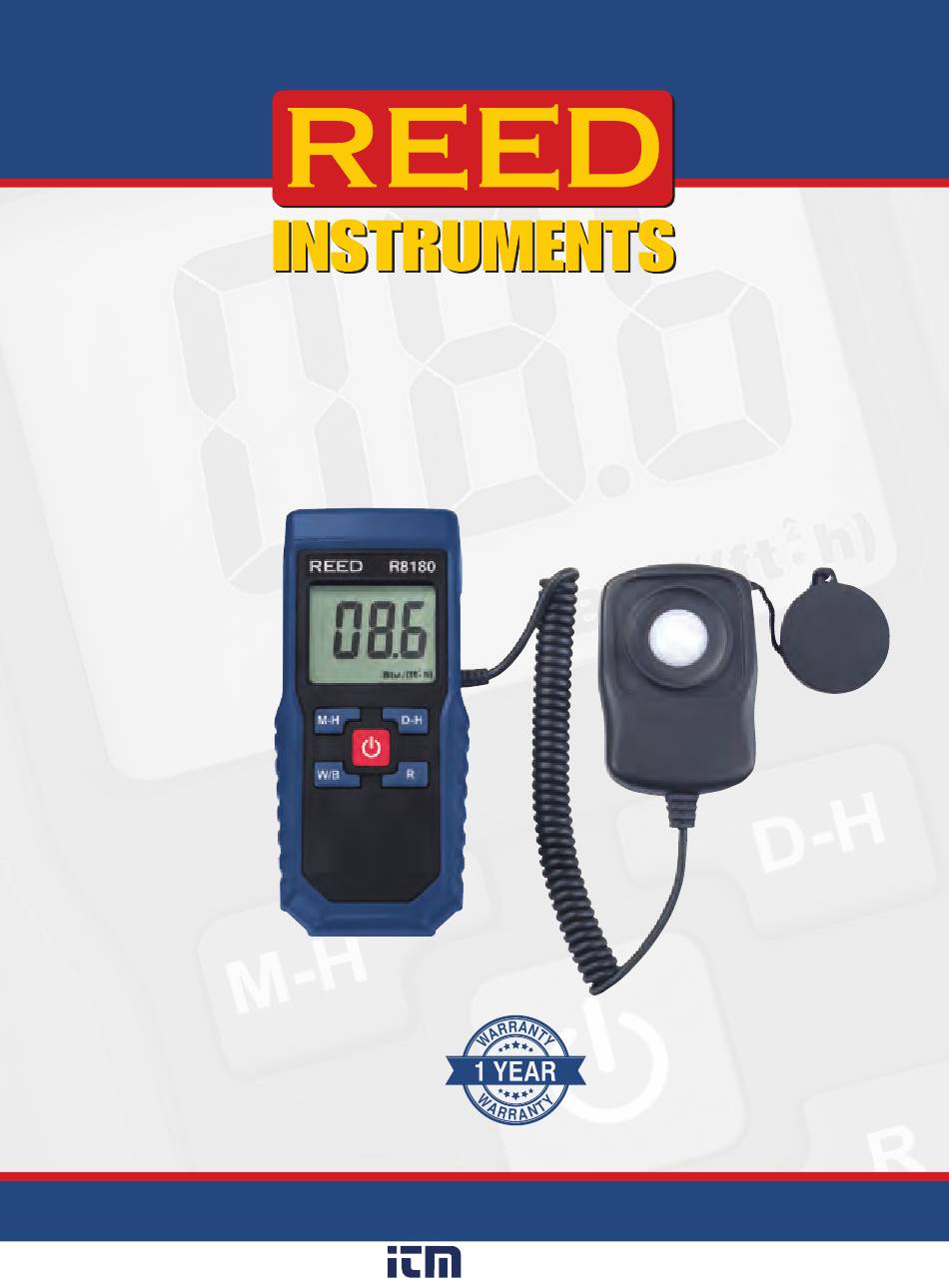

- Page 1 R8180 Solar Power Meter White background 1 YEAR 1 AN Instruction Transparent background 1 AN Manual 1 YEAR White 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 Features ...................... 4 Included ...................... 4 Specifications ..................... 5 Instrument Description ................6 Display Description ..................7 Operating Instructions ................8-9 Power ON/OFF ..................8 Solar Sensor ..................8 Unit of Measure Selection .............. -
Page 3: Introduction
Introduction Thank you for purchasing your REED R8180 Solar Power Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Features
Features • Measures the solar power and transmission up to 2000W/m², 634BTU/(ft²xh) • Easy-to-read display with remote sensor technology • User Selectable W/m² or BTU/(ft²xh) • Max/Min and Data Hold functions • Overrange indicator • Low battery indicator and auto shut-off Included •... -
Page 5: Specifications
Specifications Solar Power Meter Measuring Range: 0 to 1999W/m² 0 to 634BTU/(ft²xh) Accuracy: ±10W/m² ±3BTU/(ft²xh) or ±5% whichever is greater in sunlight Additional temperature included error ± 0.38W/m²/°C ±0.12BTU/(ft²xh)/°F (°C) from 77°F (25°C) Angular Accuracy: Cosine corrected <5% for angles <60° Resolution: 0.1, 1 Response Time:... -
Page 6: Instrument Description
Instrument Description R8180 1. LCD Display 2. Max/Min Button 3. POWER Button 4. BTU/W/m Unit of Measure Button 5. Range Button 6. Data Hold Button 7. Zero Adjustment Potentiometer 8. Solar Sensor 1.800.561.8187 information@itm.com www. .com... -
Page 7: Display Description
Display Description MIN D-H MAX W/m2 Btu/(ft •h) 1. Measurement Value 5. Low Battery Indicator 2. BTU (ft xh) Unit of Measure 6. Maximum Value Indicator 3. W/m² Unit of Measure 7. Data Hold Indicator 4. Decimal Point 8. Minimum Value Indicator 1.800.561.8187 information@itm.com www. -
Page 8: Operating Instructions
Operating Instructions Power ON/OFF Press the button to turn the meter ON or OFF. Solar Sensor tery Replacement The solar sensor is permanently attached to the meter. Remove the protective cap to expose the solar sensor. When the sensor's protective cap is removed, the solar sensor will begin to capture light. -
Page 9: Data Hold
Data Hold Buttons While taking a measurement, press the button to freeze the current readings on the display. Buttons While in this mode a "D-H" symbol will appear. Press the button again to resume normal operation. Zero Adjustment Before taking a light measurement, cover the solar sensor with the provided protective cap. -
Page 10: Typical Applications
Typical Applications Measuring Car Headlights or Car Window Solar Insulation (Fig. 1) Turn ON car headlights. Power the meter ON. Place the sensor up close to the headlight and allow the headlight under test to fall directly on the sensor as perpendicular and as close as possible to avoid any false readings. -
Page 11: Measuring Residential/Commercial Window Solar Insulation
Measuring Residential/Commercial Window Solar Insulation (Fig. 2) Make sure the window being tested is closed. Place the sensor up close to the window and allow the sun rays to fall directly on the sensor while the windows are closed and as perpendicular as possible to avoid any false readings. -
Page 12: Battery Replacement
Battery Replacement When the low battery indicator appears on the display, the battery should be replaced. Remove the battery cover on the back and insert a new 9V battery. Battery Replacement Buttons Applications • Calculation and verification of the heating or heat reduction in windows caused by direct sunlight •... -
Page 13: Product Care
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 14: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDInstruments.com for the most up-to-date manuals, datasheets, product guides and software. - Page 15 1.800.561.8187 information@itm.com www. .com...
- Page 16 TEST & MEASURE WITH CONFIDENCE Access our Product Catalog Over 200 portable test and measurement instruments 1.800.561.8187 information@itm.com www. .com...
