Summary of Contents for Reed Instruments Smart Series

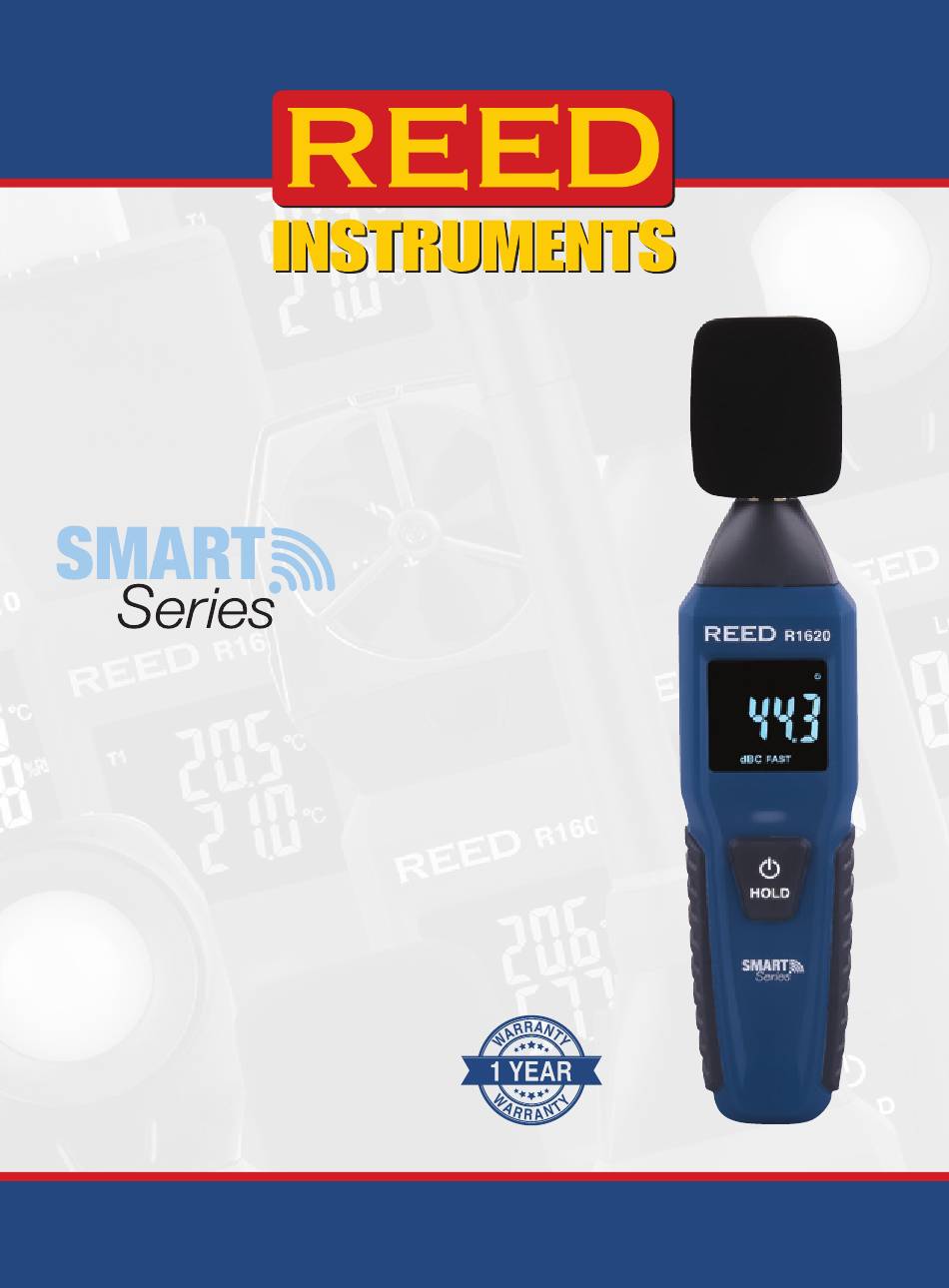

- Page 1 R1620 Sound Level Meter White background 1 YEAR 1 AN Instruction Transparent background 1 AN 1 YEAR Manual White www.REEDInstruments.com REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
IC RF Exposure Statement ..............5 Features ...................... 6 Included ...................... 6 Specifications ..................7-8 Instrument Description ................9 Display Description .................. 10 REED Smart Series................... 11 Operating Instructions .................12-14 Power ON/OFF ..................12 Backlight ....................12 Establishing Bluetooth Connection ............ 12 ®... -
Page 3: Introduction
Thank you for purchasing your REED R1620 Sound Level Meter, Bluetooth ® Smart Series. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Fcc Statement
FCC RF Exposure Statement This product complies with FCC portable RF exposure limit set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Ic Statement
CAN ICES-003(B)/NMB-003(B) IC RF Exposure Statement This product complies with the Canadian portable RF exposure limit set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Features
• Data Hold function • Low battery indicator and auto shut off • Tripod mount for long-term monitoring When used with REED Smart Series App: • Real-time data logger • User selectable sampling rate from 1 to 120 seconds • Bluetooth 5.0 provides connectivity to instruments up to... -
Page 7: Specifications
Refresh Rate: Fast 0.5 times/second, Slow 1 times/second Frequency Weighting: Microphone: 0.5" (12.7mm) electret condenser Datalogging Capabilities: Yes (with Smart Series App) Real-Time Clock and Date Stamp: Yes (with Smart Series App) Customizable Sampling Rate: Overrange Indicator: Auto Shut-off: Yes (adjustable) - Page 8 Bluetooth ® Bluetooth Range: Up to 246' (75m) ® Max # of Connected Devices: Software: REED Smart Series App (iOS and Android) App Supported Languages: English, French Product Certifications: CE, UKCA, FCC, IC ID Maximum Operating Altitude: 6561' (2000m) Operating Temperature: 32 to 104°F (0 to 40°C)
-
Page 9: Instrument Description
Instrument Description 1. Windscreen 5. Microphone 6. Tripod Mounting Screw 2. LCD Display 3. POWER/HOLD Button 7. Battery Cover Lock 8. Battery Cover 4. Bluetooth Status ® Indicator Light REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Display Description
Display Description 1. Data Hold Indicator 5. Frequency Weighing Indicator 2. Bluetooth Indicator ® 6. Time Weighting Indicator 3. Low Battery Indicator 4. Sound Measurement Value REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Reed Smart Series
REED Smart Series instruments can be connected wirelessly to your smartphone or tablet. All measurement data is transmitted via Bluetooth ® to the free REED Smart Series app. The app allows users to analyze data, generate reports and send information by email directly from a mobile device. -
Page 12: Operating Instructions
® remains blue and the the current readings are automatically displayed in the App. REED Smart Series meters feature Bluetooth 5.0 connectivity which ® does not require meters to be paired with the device. If the App is open and the meter is powered on, a connection will automatically be established. -
Page 13: Selecting Frequency Weighting & Response Time
To preserve battery life, the meter is programmed to turn itself off after 30 minutes of inactivity. Note: The Auto Power OFF feature can be disabled through the App. (See REED Smart Series Software Guide located in the "Menu" section of the App for additional details.) continued... -
Page 14: Calibration Procedure
When calibration is complete, secure the battery compartment back into place. For additional information on App features including sampling rate setup, data logging, data analysis, export and report generation please see the REED Smart Series App Software Guide at www.REEDInstruments.com/smartseries REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 15: Battery Replacement
R8888 Medium Hard Carrying Case R8090 Sound Level Calibrator R1500 Tripod R1300 Calibration Screwdriver Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.REEDInstruments.com. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 16: Product Care
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 17: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDInstruments.com for the most up-to-date manuals, datasheets, product guides and software. - Page 18 Thermo-Hygrometer Sound Level Meter Thermocouple Thermometer Light Meter Connect wirelessly to your smartphone or tablet via the REED Smart Series App Bluetooth 5.0 provides connectivity to ® instruments up to 246' (75m) away Analyze data and create custom reports that can...
- Page 19 TEST & MEASURE WITH CONFIDENCE Access our Product Catalog Over 200 portable test and measurement instruments REED Instruments www.REEDInstruments.com 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 20 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
