Summary of Contents for Reed Instruments Smart Series

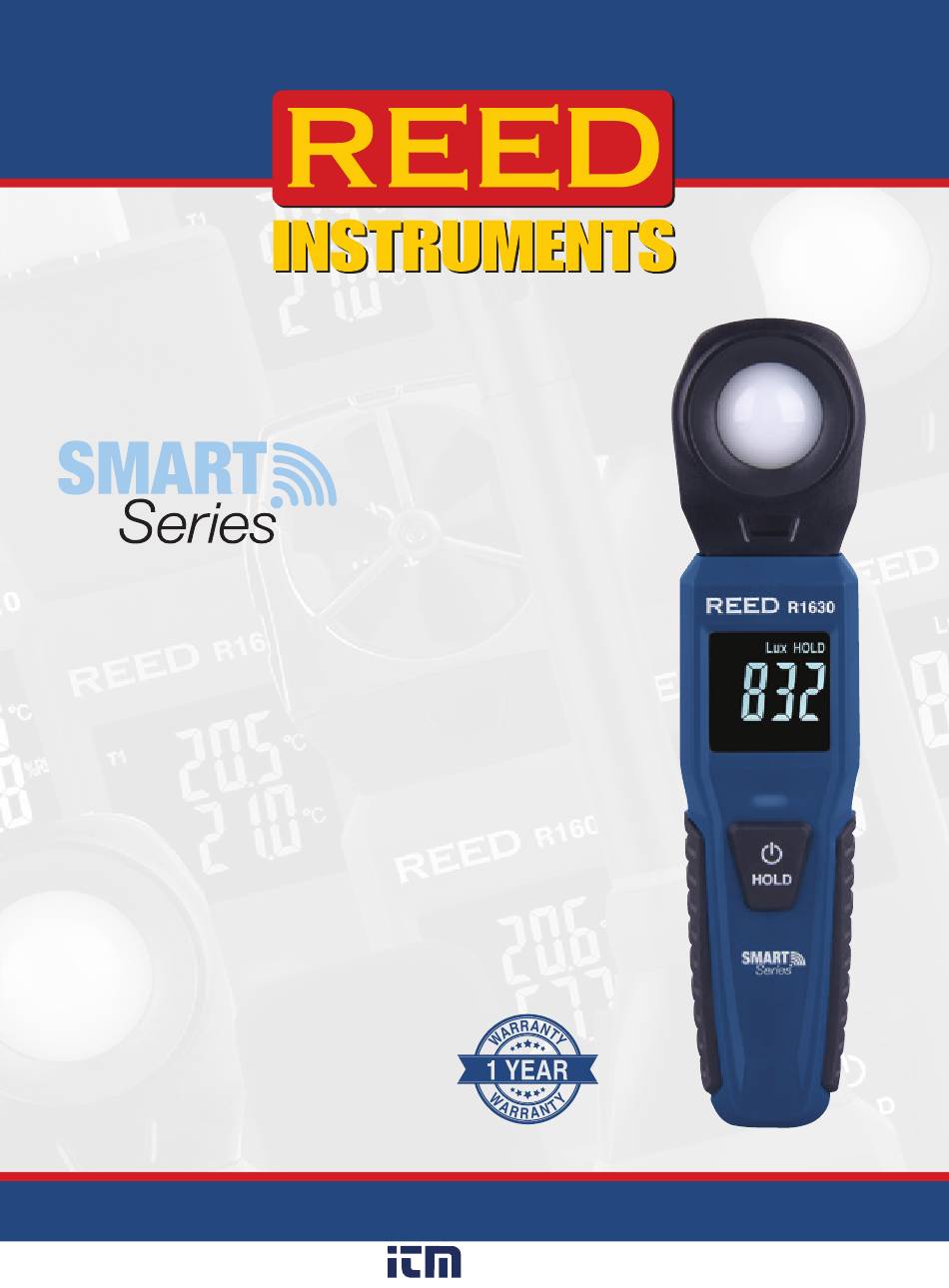

- Page 1 R1630 Light Meter White background 1 YEAR 1 AN Instruction Transparent background 1 AN 1 YEAR Manual White www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
IC RF Exposure Statement ..............5 Features .......................6 Included .......................6 Specifications ..................7-8 Instrument Description ................9 Display Description ...................10 REED Smart Series App ................11 Operating Instructions ................12-13 Power ON/OFF .................. 12 Backlight ................... 12 Establishing Bluetooth Connection ..........12 ®... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R1630 Light Meter, Bluetooth ® Smart Series. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Ic Statement
IC statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 6: Features
• Data Hold function • Low battery indicator and auto shut off • Tripod mount for long-term monitoring When used with REED Smart Series App: • Real-time data logger • User selectable sampling rate from 1 to 120 seconds • Bluetooth 5.0 provides connectivity to instruments up to... -
Page 7: Specifications
Enhanced Black Twisted Nematic (EBTN) LCD Display Size: 1.3" (34mm) Backlit Display: Data Hold: Datalogging Capabilities: Yes (with Smart Series App) Real-Time Clock and Date Stamp: Yes (with Smart Series App) Customizable Sampling Rate: Overrange Indicator: Auto Shut-off: Yes (adjustable) - Page 8 Product Certifications: CE, UKCA, FCC, IC ID Maximum Operating Altitude: 6561' (2000m) Operating Temperature: -4 to 140°F (-20 to 60°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Operating Humidity Range: 10 to 90% Storage Humidity Range: 10 to 90% Dimensions: 6.9 x 1.5 x 1"...
-
Page 9: Instrument Description
Instrument Description 5. Tripod Mounting Screw 1. Light Sensor 2. LCD Display 6. Battery Cover Lock 7. Battery Cover 3. POWER/HOLD Button 4. Bluetooth Status ® Indicator Light 1.800.561.8187 information@itm.com www. .com... -
Page 10: Display Description
Display Description 1. Data Hold Indicator 6. x100 Indicator 2. Lux Unit of Measure (Multiplies Reading) 3. Bluetooth Indicator 7. Foot-Candle Unit ® of Measure 4. Low Battery Indicator 5. Measured Light Value 1.800.561.8187 information@itm.com www. .com... -
Page 11: Reed Smart Series App
REED Smart Series instruments can be connected wirelessly to your smartphone or tablet. All measurement data is transmitted via Bluetooth ® to the free REED Smart Series app. The app allows users to analyze data, generate reports and send information by email directly from a mobile device. -
Page 12: Operating Instructions
® remains blue and the the current readings are automatically displayed in the App. REED Smart Series meters feature Bluetooth 5.0 connectivity which ® does not require meters to be paired with the device. If the App is open and the meter is powered on, a connection will automatically be established. -
Page 13: Taking Light Measurements
Note: The Auto Power OFF feature can be disabled through the App. (See REED Smart Series Software Guide located in the "Menu" section of the App for additional details.) For additional information on App features including sampling rate... -
Page 14: Battery Replacement
Battery Replacement When the low battery icon appears on the LCD display, the batteries will need to be replaced. In order to replace the batteries, proceed with the following steps: Turn off the meter. Unlock the battery compartment located at the back of the meter. Remove the battery cover. -
Page 15: Product Care
Product Care To keep your instrument in good working order we recommend the following: • Store your product in a clean, dry place. • Change the battery as needed. • If your instrument isn’t being used for a period of one month or longer please remove the battery. -
Page 16: Product Warranty
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. - Page 17 Thermo-Hygrometer Sound Level Meter Thermocouple Thermometer Light Meter Connect wirelessly to your smartphone or tablet via the REED Smart Series App Bluetooth 5.0 provides connectivity to ® instruments up to 246' (75m) away Analyze data and create custom reports that can...
- Page 18 TEST & MEASURE WITH CONFIDENCE Access our Product Catalog Over 200 portable test and measurement instruments www.REEDInstruments.com www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
- Page 19 www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
- Page 20 NOTES 1.800.561.8187 information@itm.com www. .com...
