THE PROTECTOR SYSTEM
21
NOTE: This accessory must be used for all installations where
the closing force as measured on the bottom of the door is
over 400 N (40 kgf).
SPECIAL NOTE: Chamberlain strongly recommends that The
Protector System
(IR Beams) be installed on all garage door
TM
openers.
IR BEAMS: By installing IR Beams, an open door is prevented
from closing if a person or object is located in the beam area. If the
door is already closing, it will return to the open position. A closed
door is not prevented from opening.
If the Protector System
(IR Beams) is installed and needs to be
TM
removed, the opener will need to be reprogrammed (refer to
paragraph 4 of the troubleshooting section).
Whilst Chamberlain have engineered safety features into your garage door opener, we urge you to consider fitting
The Protector System™ (IR Beams) to your new garage door opener. In many countries these devices are
compulsory to assist in preventing serious injury or property damage. For your own peace of mind and the safety of
others please install this inexpensive safety device.

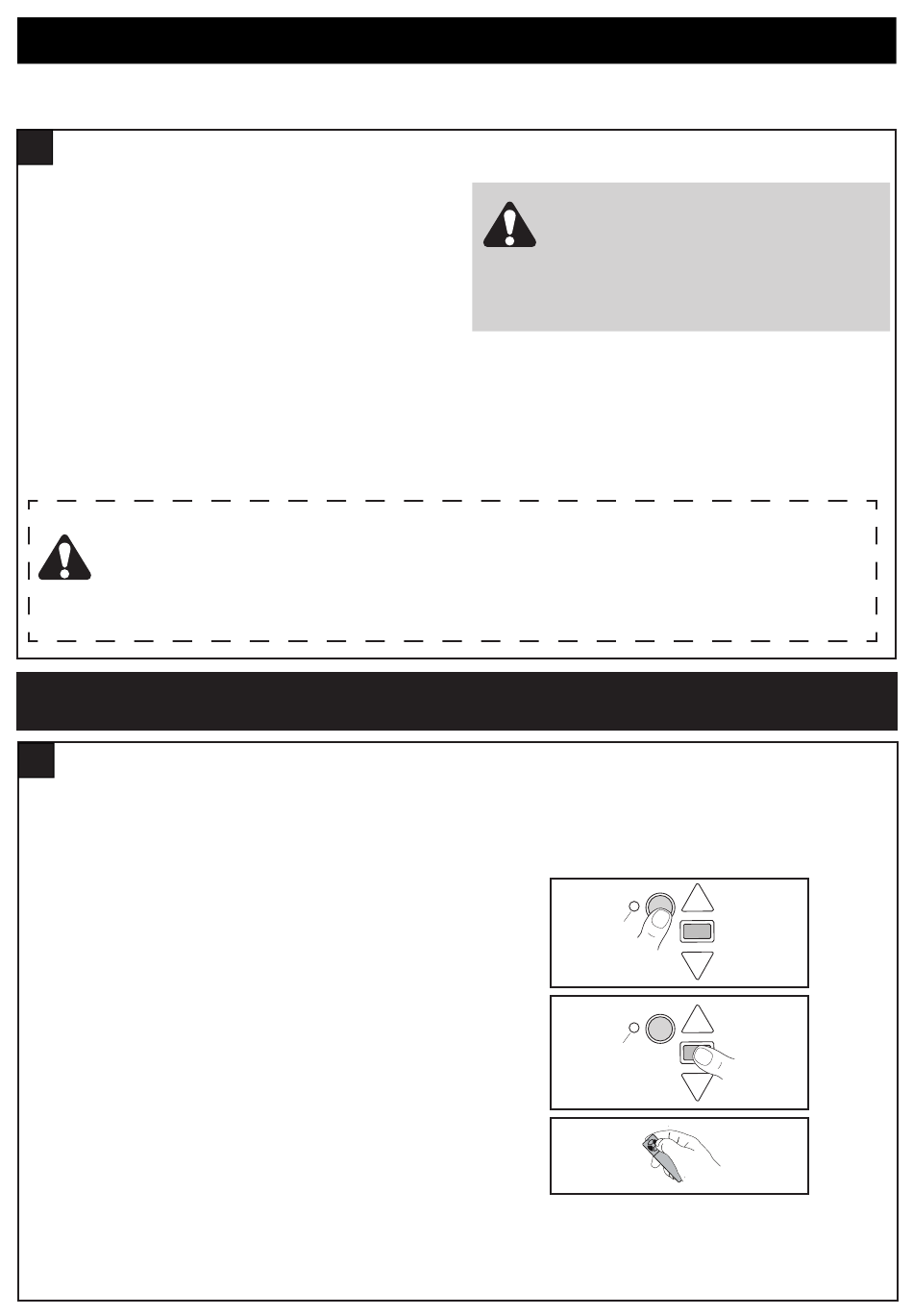

PROGRAM TRANSMITERS TO THE OPENER LIGHT
22
To Program your transmitters to operate your garage door opener
light follow the below steps:
1.
Press and release the "LEARN" button, and the "courtesy
light" will flash twice (fig.1).
2.
Press and release the "PROG" button and the garage door
opener will go into courtesy light learn mode for 30 seconds
(fig.2).
3.
Press any transmitter button (fig.3) to learn this button to the
garage door opener courtesy light, the garage door opener
"courtesy light" will flash twice.
NOTE: Do not use the same transmitter button that has been
previously learned to the garage door opener for operation.
The transmitter is now learnt to the garage door opener courtesy
light.
To Erase all Transmitter Codes
1.
Press and hold the "LEARN" button on the opener until the
courtesy light flashes twice, and continue holding for
approximately 8 seconds, until the courtesy light flashes twice
again.
2.
Release the button, all codes are now erased.
ADJUSTMENT SECTION
(IR BEAMS) (OPTIONAL)
TM
SAFETY FIRST!
PROGRAMMING
To prevent entrapment, install The
Protector System™ (IR Beams) no higher
than 100 mm above the floor.
Disconnect power to the garage door
opener before installing The Protector
System™(IR Beams)
fig.1
Indicator LED
fig.2
Indicator LED
fig.3
