QuickStar t
for single gate application
2016 UL 325 Gate Operators require use of LiftMaster
external monitored entrapment protection devices.
This QuickStart is intended to highlight a single gate
application. Each application is unique and it is the
responsibility of the purchaser, installer and end user to ensure
that the total gate system is installed and operated properly.
Refer to the installation manual for complete information
regarding installation, testing, and programming.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
LiftMaster.com
01-38284 © 2016, LiftMaster – All Rights Reserved

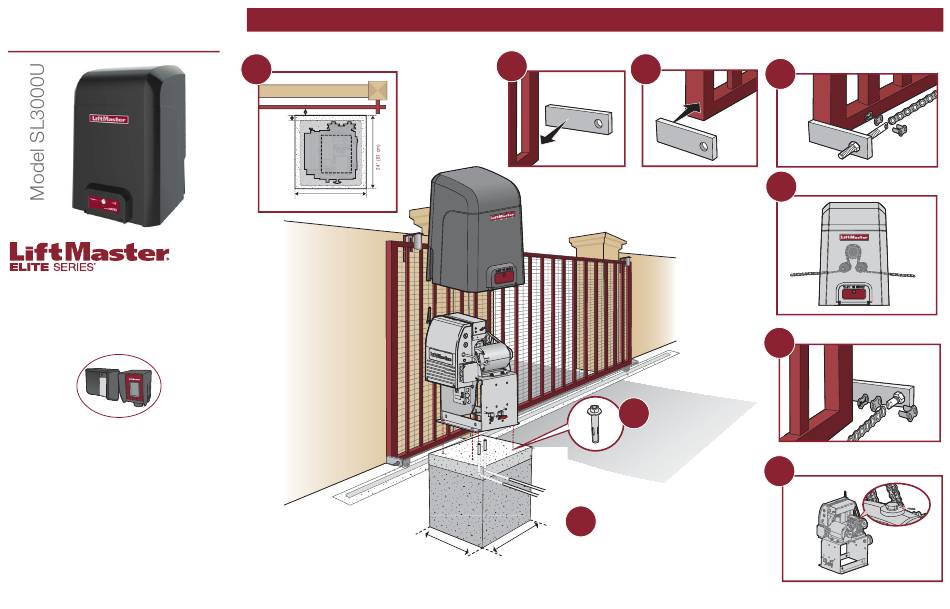

Determine location for concrete pad.
1
1" - 2" (2.5 - 5.1 cm)
1/2"
(1.8 cm)
(conduit
location)
24" (61 cm)
24" (61 cm)
INSTALLATION
Attach the front gate Attach the rear gate
4 bracket.
bracket.
5
Attach the operator to
3
the concrete pad.
6" (15.2 cm)
Above Ground
Below the frost line. Check
all national and local codes.
Minimum of 24" (61 cm)
recommended in regions
with no frost line.
2
Install conduit and pour concrete pad.
24" (61 cm)
Attach the chain to the rear gate
bracket.
6
7
Route the chain through the operator.
Attach the chain to the front gate
bracket.
8
Remove the vent plug from the
gearbox.
9
