- Page 1 SV105 Hand‐Arm accelerometer Instruction manual May 2011 www.svantek.com ...
- Page 2 2 SV105 User manual CONTENTS 1. General safety summary ........................ 2 2. SV105 model information ........................ 2 3. Unpacking and Inspecting the package contents ................ 2 4. SV105 Hand‐Arm accelerometer ...................... 3 6. Installation ............................ 3 7. Calibration of the SV 105 Hand‐Arm sensor .................. 6 8. General Care and Cleaning ........................ 6 9. Technical data ............................ 7 1. General safety summary Review the following safety precautions to avoid injury and prevent from damaging this product or other products connected with it. To avoid potential hazards, use this product only as specified. Qualified personnel should only perform the service procedures. Warnings, precautions and maintenance: ...

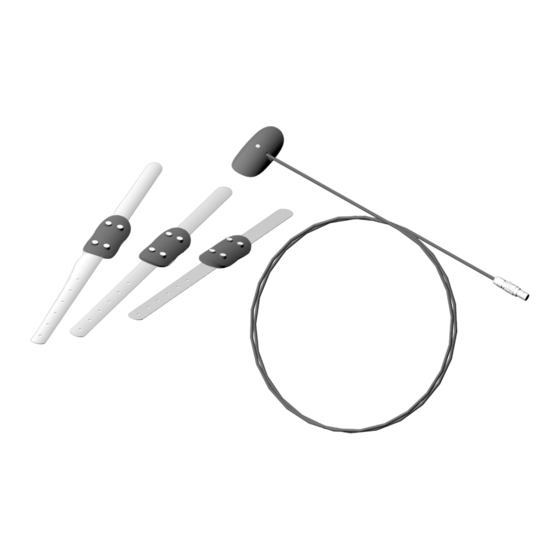

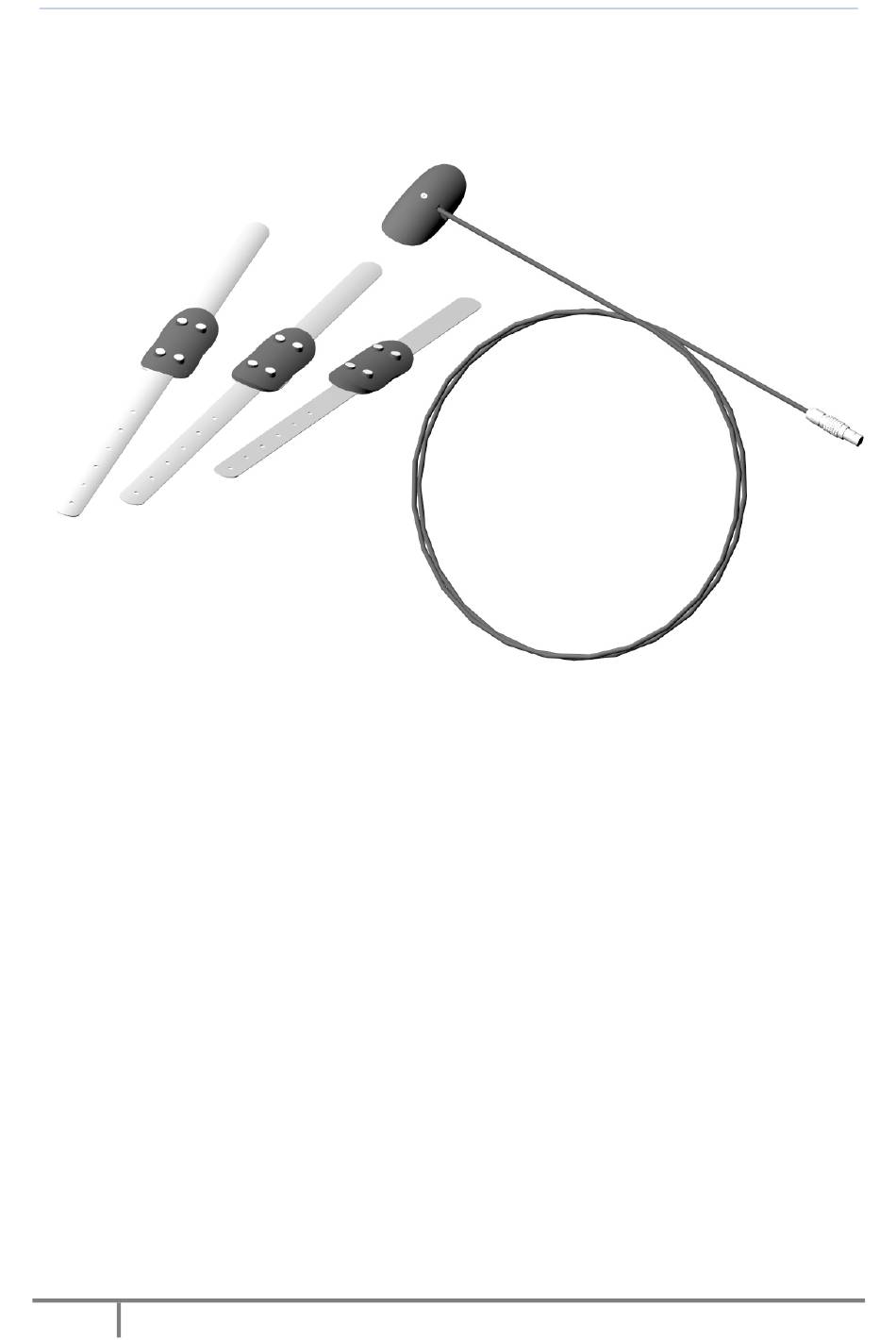

- Page 3 SV105 User manual Despite careful packing, the risk of the device damage cannot be entirely eliminated. Upon delivery, please make sure that the device is not damaged and verify that you received the ordered equipment and optional accessories (if ordered). In case of any problems, please contact an authorized Svantek representative, the service staff or the manufacturer directly. The complete set includes the following items: • SV105 Accelerometer • Adapters for measurements at various surfaces types • Hand strap 4. SV105 Hand‐Arm accelerometer 1 2 3 SV105 Hand‐Arm accelerometer 1.SA 152 adapter; 2.SA 151 adapter; 3.SA 150 adapter; 4.Sensor; 5.Plug; 3.SA 105 calibration adapter (optional). ...
- Page 4 4 SV105 User manual • SA 150 • SA 151 • SA 152 b) The sensor, as each type of the surface adapter, has magnets that enable easy and quick assemblage. Strap the SV 105 to the palm of the hand. ...
- Page 5 SV105 User manual Grab the examined object ...
- Page 6 6 SV105 User manual 7. Calibration of the SV 105 Hand‐Arm sensor Calibration can be performed by using accelerometer sensitivity or vibration calibrator with dedicated adapter SA 105 (optional). Accelerometer can be easily installed to the calibration adapter and then fixed in all three axis on a shaker. The SV 105 Hand‐Arm sensor should be tested/calibrated at 79,58 Hz • Install the sensor to the SA 105 calibration adapter (in the same way as the adapters for measurements on various surfaces) • Accelerometer must be calibrated in all the three directions of the measurement. 8. General Care and Cleaning • Remove the sensor and switch the device off • Disconnect the device from the power supply. • Wipe the device’s surface with the cloth damped with the mixture of warm ...
- Page 7 SV105 User manual 9. Technical data Performance: Number of axis 3 Sensitivity (± 5 %) 10.2 mV/(m/s2) at 79.58 Hz Measurement range 0.024 ms‐2 RMS,Wh ÷ 180 ms‐2 PEAK Frequency response (± 3 dB) 1 Hz ÷ 2763 Hz Resonant frequency 5.5 kHz (MEMS transducer) Electrical noise < 240 μV RMS, Wh weighting < 2.2 mV RMS, HP1 weighting Electrical: Supply current < 5,0 mA Supply voltage 5,2 V ÷ 16 V Bias voltage 2,5 V ± 0.05 V ...
