Svantek SV 106A User Manual
  1. Manuals
  2. Brands
  3. Svantek Manuals
  4. Measuring Instruments
  5. SV 106A
  6. User manual

Svantek SV 106A User Manual

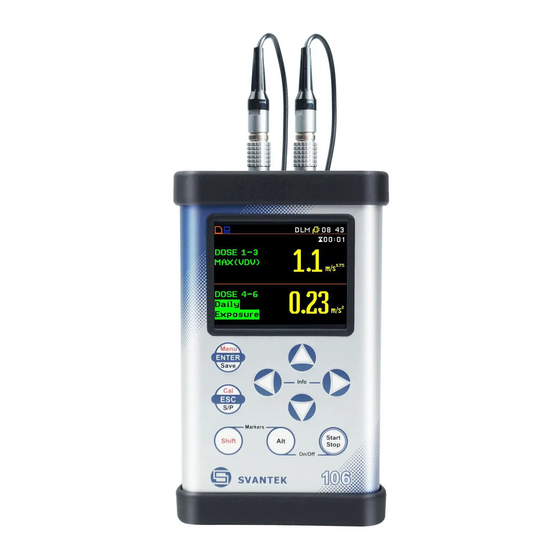

Human vibration analyser
Hide thumbs Also See for SV 106A:
Table of Contents

Advertisement

Quick Links

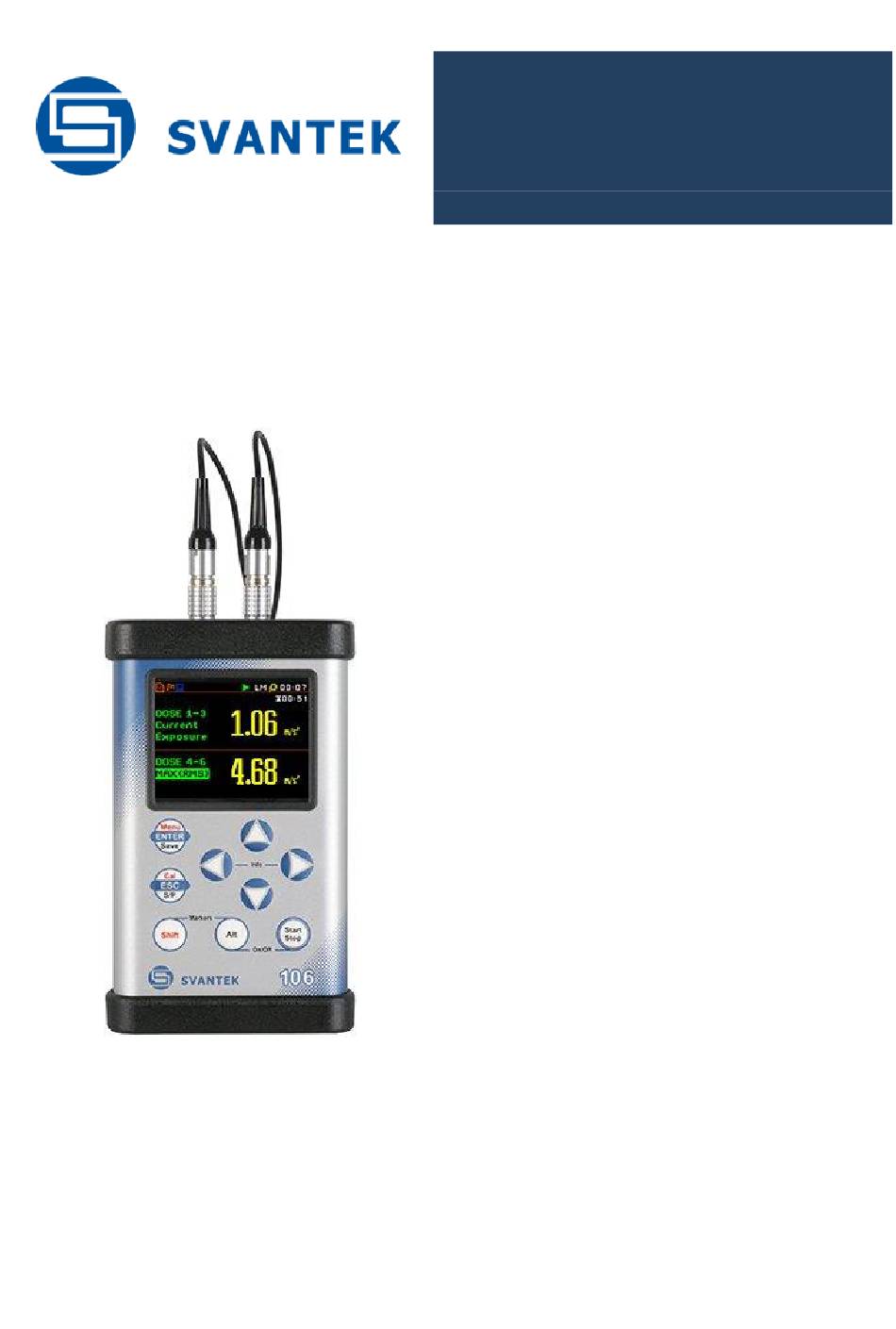

USER MANUAL
SV 106A
HUMAN VIBRATION ANALYSER
Copyright © 2017 SVANTEK. All rights reserved.
Warsaw, March 2017
