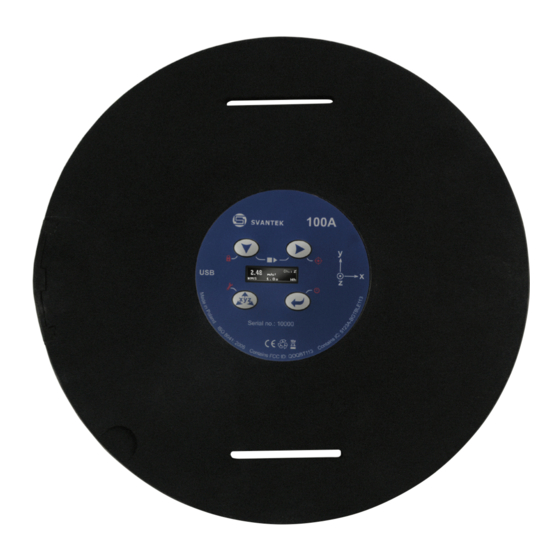

- Page 1 SV 100A Vibration Dosimeter User Guide...
- Page 2 SV 100A User Guide ISO 2631-1 and EU Directive 2002/44/EC The SV 100A measures the A(8) vibration exposure and the overall vibration total value (VECTOR) in accordance with ISO 2631-1 and EU Directive 2002/44/EC. 1.75 The A(8) result is given in m/s (RMS), m/s (VDV) and points.
- Page 3 ISO / IEC 17025 calibration certifi cate meter Please check the list against the contents. If any of the listed items are missing, please contact your local Svantek distributor or send an e-mail to offi ce@svantek.com within 3 days of receiving the parcel.
-
Page 4: Configuration With Supervisor Software
1) To switch the power on hold the <ENTER> button for a couple of seconds. 5) Download current Settings from Instrument files to Local Files using right arrow and edit SV100A settings using panels on the right hand side 6) Save settings file under new name 7) Upload the file to the Instrument Files using left arrow and select Apply 2) Connect the USB cable to PC. - Page 5 SV 100A User Guide In-situ check with SV 111 4) Enable Calibration menu in SV 100A by holding Right Arrow button. Select the axis. Set up of SV 111 1) Open the SV 111 calibrator lid and take out the SA111 adapter Mount the SV 100A on the SA111.
- Page 6 5) Enable Start / Stop / Pause menu by clicking on the bottom bar. Installation of Assistant application 1) Login to svantek.com website and download Assistant from the Support page to your smartphone / tablet with Android system. 2) Install Assistant on your Android smarphone.
- Page 7 3) Once the file is downloaded it will be automatically shown in the Data Browser. Downloading with Supervisor 1) Connect the SV100A to PC and open Supervisor software. Click the Download button located next to Settings and Inventory. 4) To open file simply double click on it.
- Page 8 Should your SVANTEK professional measurement equipment need to be returned for repair or for calibration, please contact the service office at the following number or contact via the SVANTEK’s website. office at the following number or contact via the SVANTEK’s website.
- Page 9 The policy of our company is to continually innovate and develop our products. Therefore, we reserve the right to change the specifications without prior notice. Proudly distributed by: SVANTEK Sp. z o. o. ul. Strzyg³owska 81, 04-872 WARSAW, POLAND phone/fax (+48) 22 51 88 320, (+48) 22 51 88 312...
