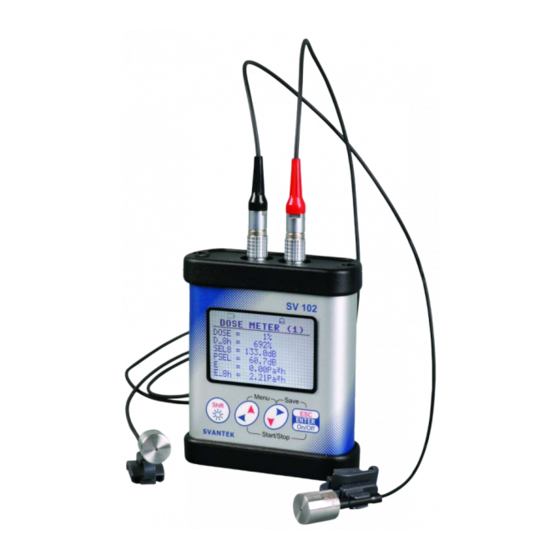

Dual channel acoustic dosimeter
Hide thumbs Also See for SV 102:

Advertisement

Table of Contents

SV 102
Dual Channel Acoustic Dosimeter
QUICK START GUIDE
(draft)
www.svantek.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV 102 and is the answer not in the manual?

Questions and answers

Related Manuals for Svantek SV 102

Summary of Contents for Svantek SV 102

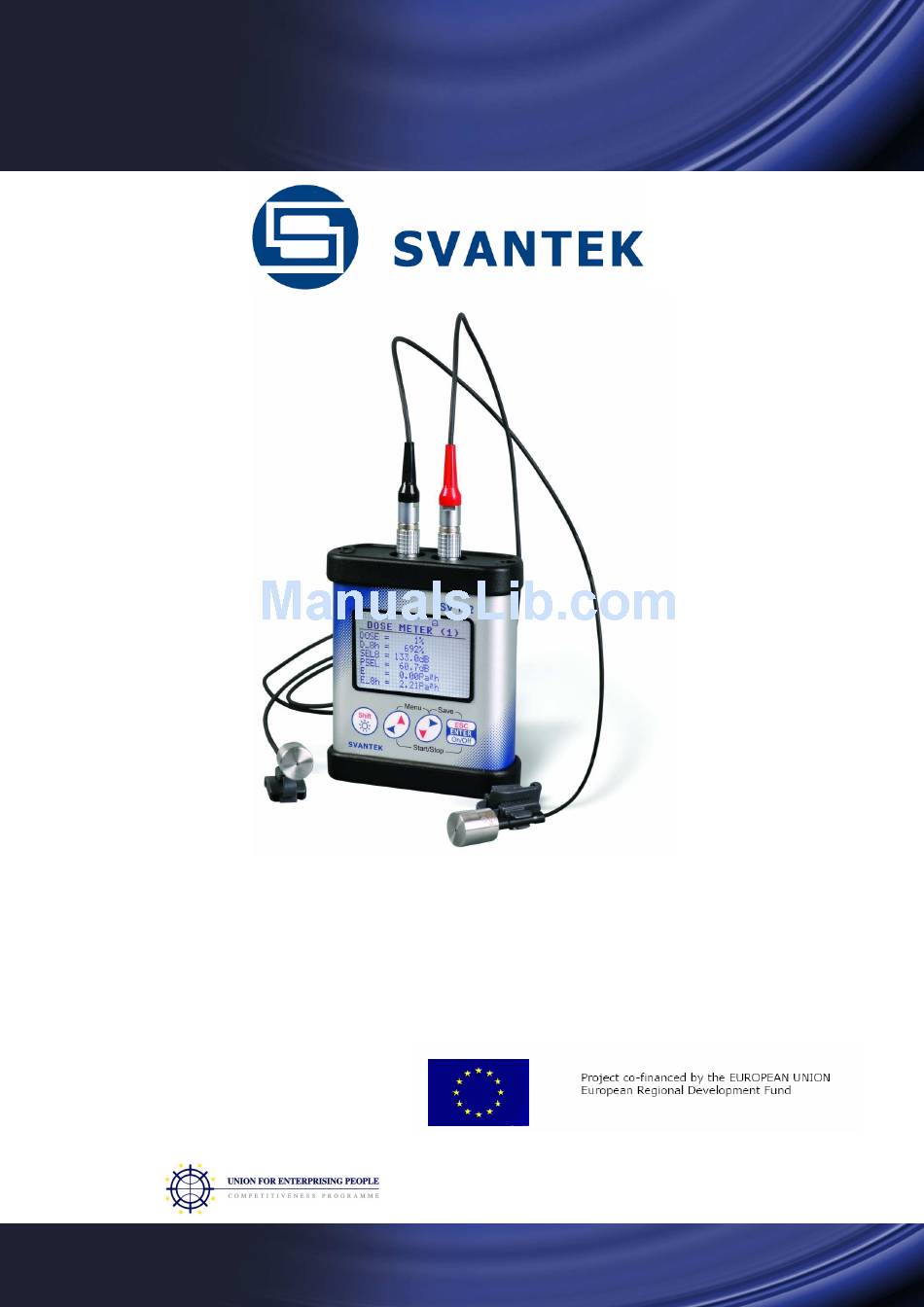

  • Page 1 SV 102 Dual Channel Acoustic Dosimeter QUICK START GUIDE (draft) www.svantek.com...

  • Page 2: Table Of Contents

    SV 102 USER GUIDE TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION............. 2 CONTROL PUSH-BUTTONS ........3 BEFORE YOU TURN INSTRUMENT ON......3 TURNING INSTRUMENT ON AND OFF ......3 WARM UP TIME ............. 4 BATTERY CHECK............

  • Page 3: Introduction

    SV 102 USER GUIDE INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION This quick start guide will help you to get started with SV102 instrument. The SV 102 device is a dual cannel dosimeter which enables performing binaural dose measurements and the 1/1 octave analysis simultaneously.

  • Page 4: Control Push-Buttons

    SV 102 USER GUIDE CONTROL PUSH CONTROL PUSH CONTROL PUSH CONTROL PUSH- - - - BUTTONS BUTTONS BUTTONS BUTTONS On/Off (if held); ENTER; ESCAPE (if pressed with SHIFT - second (“red”) functionality of other push-buttons; switching on the backlight (if held)

  • Page 5: Warm Up Time

    SV 102 USER GUIDE This message appears when the calibrator factor stored in TEDS memory of microphone doesn’t match calibrator factor instrument’s MEMORY. means that the microphone hasn’t been calibrated in the channel it is connected to or it hasn’t been used with this instrument.

  • Page 6: Battery Check

    Install the bottom cover UNSCREW TO EXCHANGE BATTERIES USB PORT Fig. 2. SV 102 BOTTOM COVER SETTING DATE AND TIME SETTING DATE AND TIME SETTING DATE AND TIME SETTING DATE AND TIME Go to MENU ( ) >...

  • Page 7: Measurement Setup

    SV 102 USER GUIDE MEASUREMENT SETUP MEASUREMENT SETUP MEASUREMENT SETUP MEASUREMENT SETUP Go to MENU ( ) > FUNCTION and select proper MODE and MEASUREMENT FUNCTION. Go to MENU ( ) > INPUT > MEASUREMENT SETUP and configure (using push-buttons) following...
  • Page 8 SV 102 USER GUIDE If LOGGER is switched on, go to MENU > INPUT > LEFT (RIGHT) CHANNEL > PROFILE 1 (2, 3) and select results to be logged: PEAK, MAX, MIN or/and RMS. Go to MENU ( ) > INPUT > PROFILE 1 (2, 3) and select detector time constant (FAST/SLOW/IMPULSE).

  • Page 9: Calibration

    SV 102 USER GUIDE Depending on the function being used, adjust other necessary settings i.e. in: DOSIMETER SETUP window (MENU > INPUT > DOSIMETER SETUP) SPECTRUM window (MENU > INPUT > SPECTRUM) It is also possible to LOAD one of STANDARD SETUPS (OSHA, MSHA, DOD, ACGIH, ISO 85, ISO 95) by selecting proper option in FILE >...
  • Page 10 Instrument returns to the calibration window. Press return calibration menu, take microphone from calibrator. Calibrate second microphone in the similar way. Now your SV 102 is ready to perform the measurements. Press push-buttons to see main view of display. © SVANTEK...

  • Page 11: Making A Simple Measurement & Using Display Options

    SV 102 USER GUIDE MAKING A SIMPLE MEASUREMENT & USING DISPLAY OPTIONS MAKING A SIMPLE MEASUREMENT & USING DISPLAY OPTIONS MAKING A SIMPLE MEASUREMENT & USING DISPLAY OPTIONS MAKING A SIMPLE MEASUREMENT & USING DISPLAY OPTIONS Press push-buttons till you see main view.
  • Page 12 SV 102 USER GUIDE © SVANTEK...

  • Page 13: Saving Measurement Results

    SV 102 USER GUIDE SAVING MEASUREMENT RESULTS SAVING MEASUREMENT RESULTS SAVING MEASUREMENT RESULTS SAVING MEASUREMENT RESULTS Two types of files for storing measurement results are available - RESULTS FILES and LOGGER FILES. Logger files are saved automatically To save results, the measurement has to be stopped Press push-buttons (or go to MENU >...

  • Page 14: Loading Measurement Results

    SV 102 USER GUIDE LOADING MEASUREMENT RESULTS LOADING MEASUREMENT RESULTS LOADING MEASUREMENT RESULTS LOADING MEASUREMENT RESULTS view saved measurement results, MENU ( ) > FILE > LOAD, select file you wish to load and press DELETING MEASUREMENT RESULTS DELETING MEASUREMENT RESULTS...
