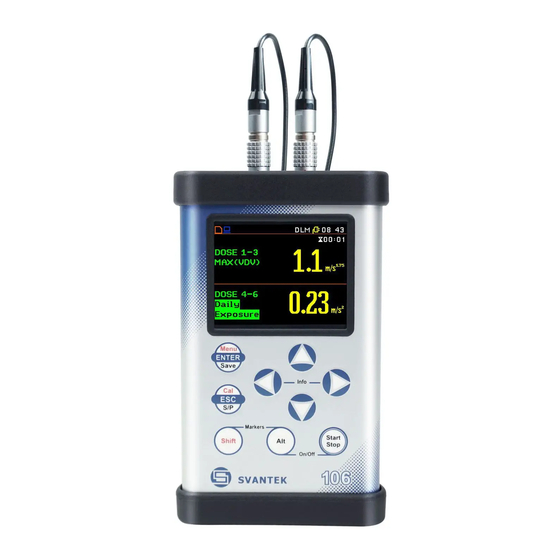

SV106 HVM Analyser
1. Settings for hand-arm
2. Saving setup
3. Start-up menu

Advertisement

loading
Need help?

Need help?

Do you have a question about the SV106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Svantek SV106

  • Page 1 SV106 HVM Analyser 1. Settings for hand-arm 2. Saving setup 3. Start-up menu...
  • Page 2 Turn on the instrument and select Factory settings...
  • Page 3 Instrument reads the TEDS me- mory from SV105. Select Use TEDS and confirm by Enter.
  • Page 4 Press Shift+Enter to access the main menu.
  • Page 5 Select Measurement and press Enter...
  • Page 6 Enter General Settings...
  • Page 7 Use Left Arrow to Change Me- asure Period to Infinity...
  • Page 8 Use Right Arrow and set Repe- tition Number to 1.
  • Page 9 Disable Logging mode (Time Hi- story). Confirm by Enter.
  • Page 10 Enter Channels Setup...
  • Page 11 Using Arrows select Channels 1-3. Confirm by Enter.
  • Page 12 Enter Dosimeter settings.
  • Page 13 Make sure HAV is selected. Confirm by Enter.
  • Page 14 Using Escape go back to main menu.
  • Page 15 Select File and press Enter.
  • Page 16 Enter File Manager.
  • Page 17 Press Left Arrow to move up in folders structure.
  • Page 18 Select New Directory and press Enter.
  • Page 19 Using arrows set the directory name. Press Enter when ready.
  • Page 20 Select new directory and press Enter.
  • Page 21 Select Set as a working directory and confirm by Enter.
  • Page 22 New working directory has been set. Press Escape to get back to File menu.
  • Page 23 Enter Save Options in menu File...
  • Page 24 Using Arrows enable Auto Save...
  • Page 25 Use Arrows to edit the name of the file.
  • Page 26 Delete characters using Alt+Left Add space using Alt+Right Confirm new name by Enter.
  • Page 27 File name has been set. Press En- ter to go back to File menu.
  • Page 28 Enter Setup Manager...
  • Page 29 To save settings as a file choose New File.
  • Page 30 Use Arrows to set the setup name.
  • Page 31 Setup file has been saved. Go back to menu File.
  • Page 32 Enter Start Setup Manager...
  • Page 33 To add setup to the start menu select its position and press Enter.
  • Page 34 Choose Replace.
  • Page 35 Select setup file and press Enter...
  • Page 36 To go back press Escape. If asked to save settings confirm choosing Yes...
  • Page 37 Turn instrument On/Off to check if the setup file is now available at start.
  • Page 38 Now the setup can be chosen at start up. To enable press Enter.
  • Page 39 Press Start measurement...
  • Page 40 Press Stop and save the file. Measurement is complete.
  • Page 41 Thank you!
