Video-inserter
RL2-SC14
Compatible with
Volvo vehicles with Sensus Connect Infotainment and internet button
with 7 inch monitor
Video-inserter for front- and rear-view camera
and one additional video source
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
1 CVBS Video-input for after-market Video sources (e.g. USB-Player, DVB-T2 Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Picture-in-picture (PIP) mode combining after-market rear-view camera picture
with factory parking sensor graphic (not for all vehicles)
Video-in-motion in drive mode (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 09.02.2023
HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input
RL2-SC14
Advertisement
Table of Contents
Related Manuals for NavLinkz RL2-SC14
Summary of Contents for NavLinkz RL2-SC14

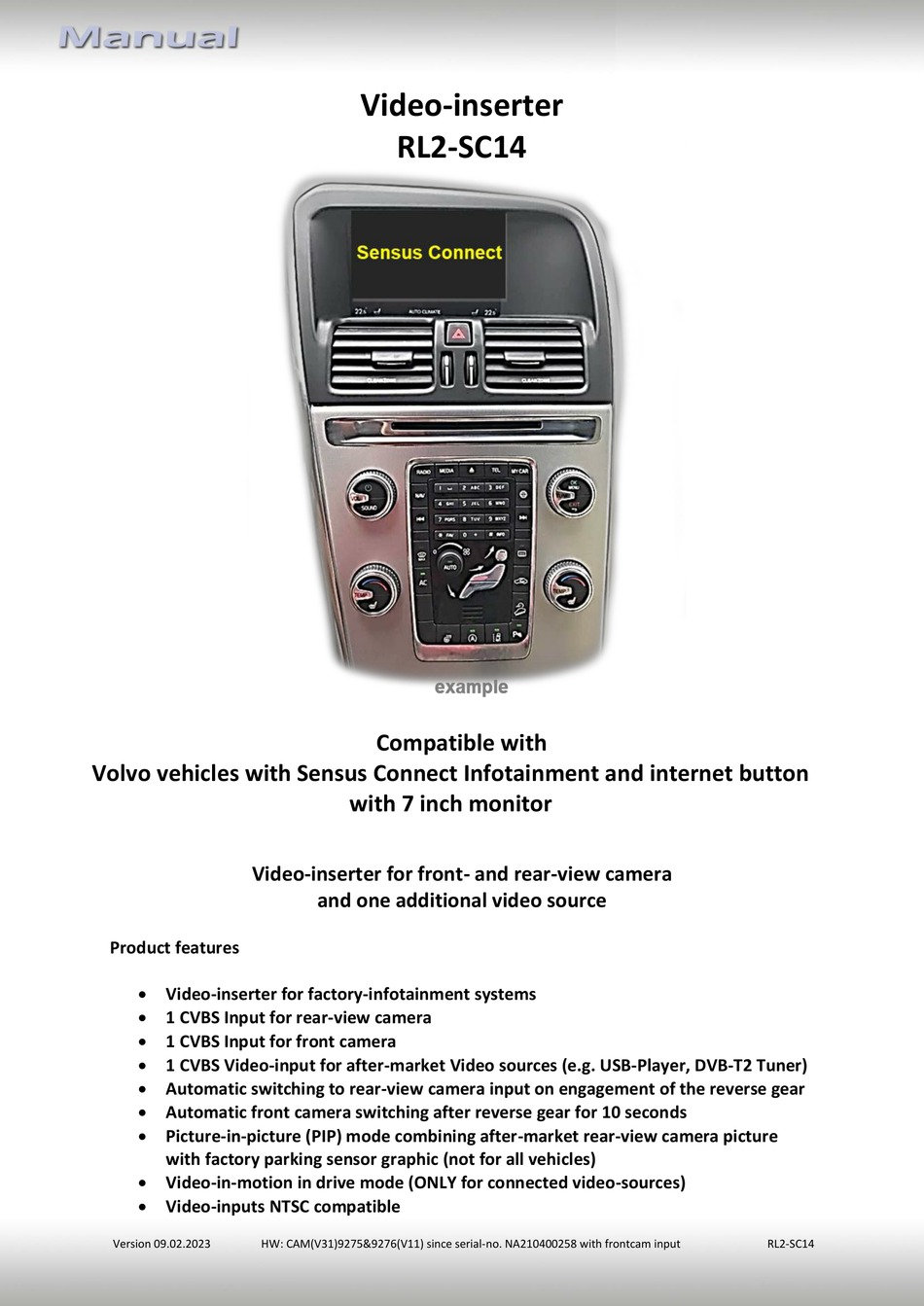

- Page 1 Video-inserter RL2-SC14 Compatible with Volvo vehicles with Sensus Connect Infotainment and internet button with 7 inch monitor Video-inserter for front- and rear-view camera and one additional video source Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Audio-insertion 2.7. Connecting video-interface and keypad 2.8. Picture settings 3. Interface operation 3.1. By infotainment buttons 3.2. By external keypad 4. Specifications 5. Frequently asked questions 6. Technical support Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 3: Prior To Installation
Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Video input signal NTSC video sources compatible only. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 5: Connectors - Video Interface
*The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. After each Dip-switch-change a power-reset of the Interface-box has to be performed! See following chapters for detailed information. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 6: Enabling The Video Input "Front Camera/Video In 1" (Dip 2)
OFF while the reverse gage is enabled, the reverse picture will be shown in full size and the PDC representation is disabled. Note: Dip 1, 4und 7 are out of function and have to be set to OFF. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 7: Installation
The interface should be installed on the backside of the head unit. Because in some cars the space available may be very limited, special care must be taken with regard to cable crushing, etc. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 8: Connection Schema
2.2. Connection schema Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 9: Connecting - Pnp Power / Can Cable
Quadlock connector of the PNP Power / CAN cable and connect this Quadlock connector to the previously become free male Quadlock connector at the rear-side of the head unit. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 10: Exchange Of Quadlock Chambers
2.3.1. Exchange of Quadlock chambers Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 11: Analogue Connecting - Video-Interface
Note: The connection of the green wire (Reverse signal) will be described in chapter “After- market rear-view camera”. The white wire, can be used to switch the enabled video sources, same as the keypad (see chapter “video interface-operation”). The grey wire stays unconnected. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 12: Connection - Picture Signal Cable
GVIF connector of the picture signal cable. Connect the male lightblue coloured GVIF connector of the picture signal cable to the female lightblue colored GVIF connector of the head unit. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 13: Connecting Video Sources
RCA connector “Video-IN 1” of the video cable. Connect the video RCA connector of an additional video sources to the female RCA connectors “Video IN 2”. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 14: After-Market Rear-View Camera
“CAMERA-IN” while the reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 15: Case 2: Can-Box Does Not Receive The Reverse Gear Signal
Note: If, due to a missing CAN communication, the 6pin to 8pin cable has been connected the analogue way instead of the Can box, the green wire’s connection has also to be done as shown in the picture above. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 16: After-Market Front Camera
Dip-2, it is also possible to switch manually from any picture mode to the front camera input, by pressing the button of the external keypad (2-3 seconds). Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 17: Audio-Insertion
Note: Regardless if it’ll be used or not, the external keypad should always be connected! In case of non-using, it should be invisibly hidden together with the video interface. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 18: Picture Settings
Position H (horizontal) Position V (vertical) UI-CNT no function IR-AV1 no function IR-AV2 no function Guide-L no function Guide-R no function Guide-CNTRL no function PDC-H-POS PDC no function AV1/2-MAIN no function Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... -
Page 19: Interface Operation
-40°C to +85°C Dimensions video-box 111 x 25 x 113 mm (W x H x D) Dimensions CAN-box 73 x 22 x 30 mm (W x H x D) Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14... - Page 20 Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14...
-
Page 21: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
