Compatible with Audi vehicles with
Symphony3-or Concert Radio3 system
Video-inserter for one rear-view camera
Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
1 CVBS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available on all vehicles)
Video-in-motion in drive mode (ONLY for connected video-sources)
Video inputs NTSC and PAL compatible
Version 09.08.2021
Video-inserter
RL2-CONCERT
and 6.5inch touch-monitor
and two additional video inputs
HW: CAM(V31)/(V35))
RL2-CONCERT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz RL2-CONCERT
Summary of Contents for NavLinkz RL2-CONCERT
- Page 1 Video-inserter RL2-CONCERT Compatible with Audi vehicles with Symphony3-or Concert Radio3 system and 6.5inch touch-monitor Video-inserter for one rear-view camera and two additional video inputs Product features Video-inserter for factory-infotainment systems 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner) ...
-
Page 2: Table Of Contents
2.6. Connection - video-interface and keypad 2.7. Picture settings, guide lines and PDC 3. Switching the video sources 3.1. By infotainment buttons 3.2. By external keypad 4. Specifications 5. Frequently asked questions 6. Technical support Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 3: Prior To Installation

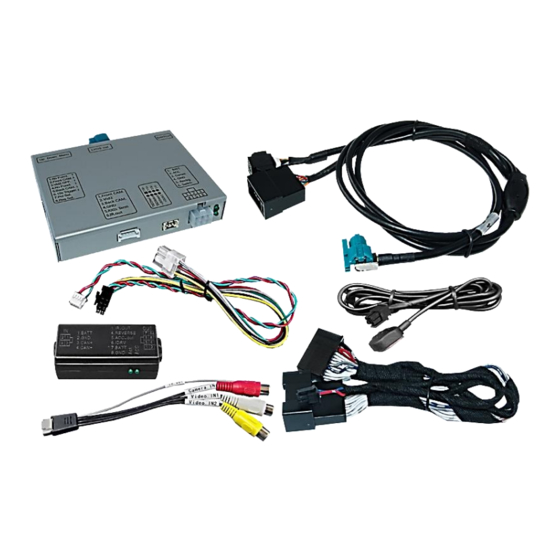

Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 4: Verification - Interface Compatibility To Vehicle And Accessories
To delay the switch-back an additional electronic part is required. Guide lines and PDC Displayed guidelines and PDC are not available in all vehicles. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 5: Connectors - Video Interface
No function Rear-view cam type after-market factory or none set OFF set OFF No function set OFF After each Dip-switch-change a power-reset of the Can-box has to be performed! See following chapters for detailed information. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 6: Enabling The Interface's Video Inputs (Dip 2-3)
If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the reverse gear is engaged. Note: Dip 1, 4, 6, 7 und 8 are out of function and have to be set to OFF. 1.5. Connectors – CAN box Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 7: Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 2.1. Genuine components to be connected The connections for the video interface have to be performed at the factory climate control unit and the factory monitor. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 8: Connection Schema
2.2. Connection schema Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 9: Connection - 20Pin Pnp Cable
Not all vehicles are kompatible. If the CAN-box does not deliver ACC to pin2 of the video- interface or blocks the thevehicle’s CAN, it is possible to install the video interface without the CAN-box. For connection see 6pin assignment above. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 10: Connection - Picture Signal Cable
Connect the female 10pin connector of the picture signal cable to the previously become free male 10pin connector at the rearside of the monitor. Connect the picture signal cable’s female waterblue colored HSD+2 connector to the HSD+2 connector of the video interface. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 11: Connection - Video Sources
Connect the video RCA connector of the rear-view camera to the female RCA connector “Camera-IN” of the video cable. Connect the video RCA connectors of additional AV sources to the female RCA connectors „Video IN 1” “Video IN 2”. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 12: After-Market Rear-View Camera
“CAMERA-IN” while the reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 13: Case 2: Can-Box Does Not Receive The Reverse Gear Signal
Note: If, due to a missing CAN communication, the 6pin to 8pin cable has been connected the analogue way instead of the Can box, the green wire’s connection has also to be done as shown in the picture above. Note: Don’t forget to set the Dip 5 to ON. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 14: Audio-Insertion
Connect the 4pin female connector of the external keypad to the male 4pin connector of the video interface. Note: Regardless if it’ll be used or not, the external keypad should always be connected! In case of non-using, it should be invisibly hidden together with the video interface. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 15: Picture Settings, Guide Lines And Pdc
If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines and the PDC car can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 16: Switching The Video Sources
Each long press will switch to the next enabled input. Inputs which are not enabled are skipped. Note: Alternatively or additionally, the white wire of the 6pin cable can be used with a +5- 12V pulse to switch the video-sources alternatively. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... -
Page 17: Specifications
Video input formats NTSC / PAL Temperature range -40°C to +85°C Dimensions video-box 113 x 22 x 115 mm (W x H x D) Dimensions CAN-box 73 x 23 x 30 mm (W x H x D) Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT... - Page 18 Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 09.08.2021 HW: CAM(V31)/(V35)) RL2-CONCERT...
-
Page 19: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
