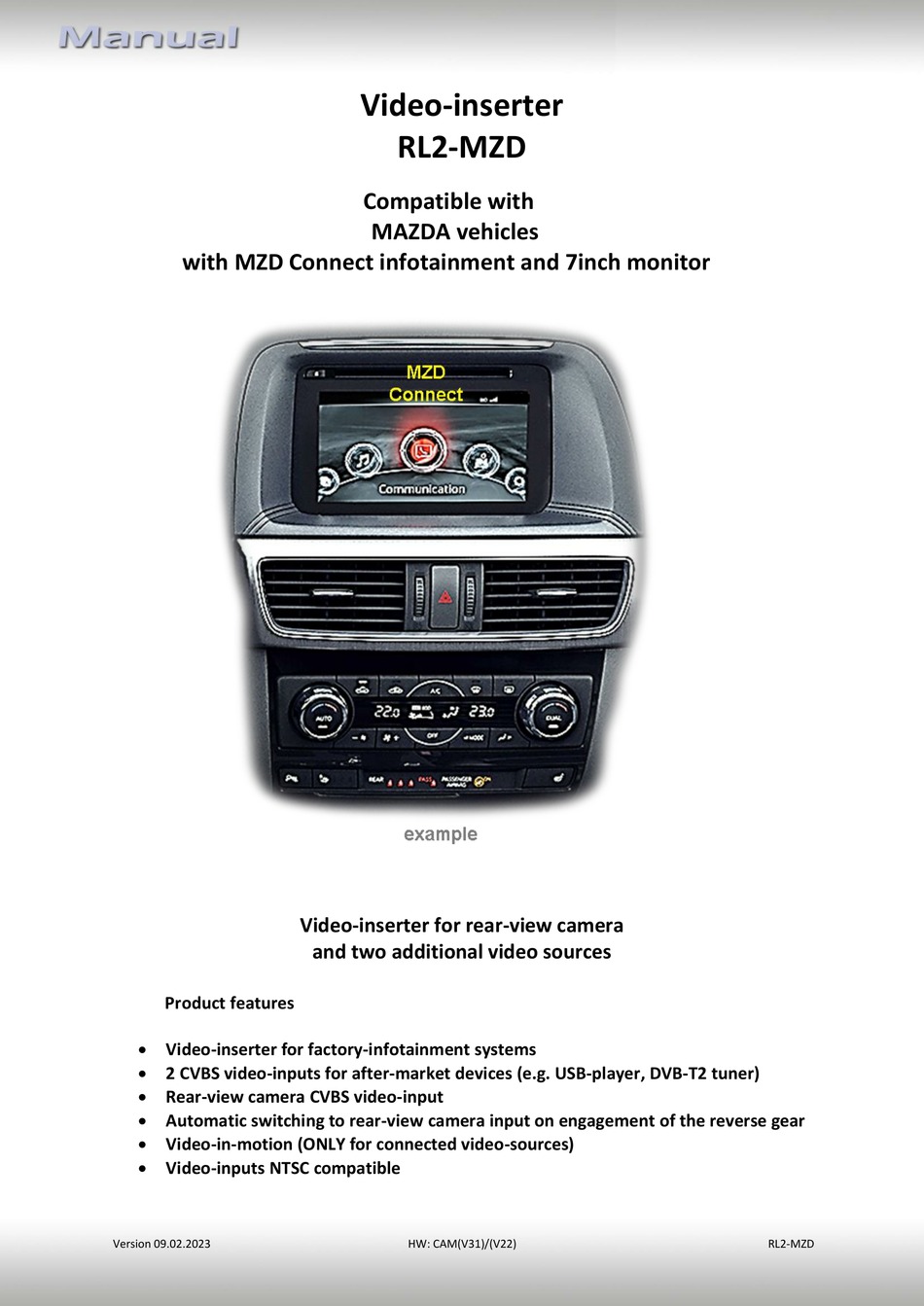

Video-inserter
RL2-MZD
Compatible with
MAZDA vehicles
with MZD Connect infotainment and 7inch monitor
Video-inserter for rear-view camera
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. USB-player, DVB-T2 tuner)
Rear-view camera CVBS video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 09.02.2023
HW: CAM(V31)/(V22)
RL2-MZD
Advertisement
Table of Contents
Related Manuals for NavLinkz RL2-MZD
Summary of Contents for NavLinkz RL2-MZD
- Page 1 Video-inserter RL2-MZD Compatible with MAZDA vehicles with MZD Connect infotainment and 7inch monitor Video-inserter for rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems 2 CVBS video-inputs for after-market devices (e.g. USB-player, DVB-T2 tuner) ...
-
Page 2: Table Of Contents
Connection – video interface and external keypad 2.9. Picture settings 3. Video interface operation 3.1. By infotainment button 3.2. By external keypad 3.3. By white wire of the 6pin cable 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 3: Prior To Installation

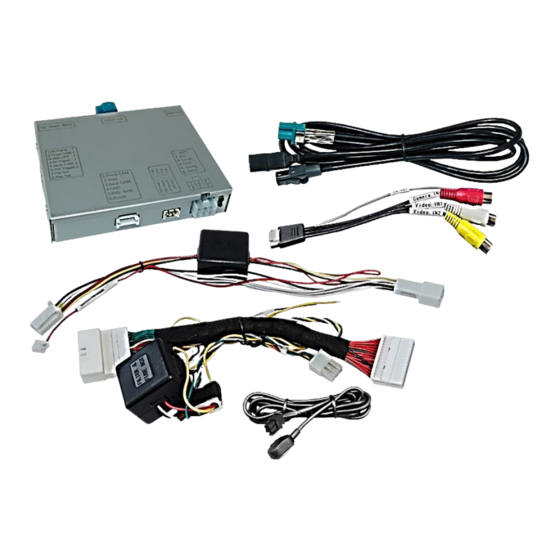

Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 5: Dip-Switch Settings - Interface
If set to ON, the interface switches to its rear-view camera input while the reverse gear is engaged. Note: Dip 1, 4, 6, 7 and 8 are out of function and have to be set to OFF. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 6: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The interface box is prepared to be connected behind the vehicle`s monitor and head-unit. Both parts have to be removed for the installation Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 7: Connection Schema
2.2. Connection schema Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 8: Connection - Video-Interface And Power/Can
28pin PNP cable’s male 28pin connector. Connect the 28pin PNP cable’s opposite female 28pin connector to the previously become free male 28pin connector at the rear-side of the head unit. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 9: Connection - Picture Signal Cable
4pin connector of the enclosed picture signal cable. Connect the picture signal cable’s darkgrey coloured female 4pin connector to the previously become free male 4pin connector at the rear side of the factory monitor. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 10: Connection - Filter And Fuse Box
8pin connector. Connect the filter and fuse box cable’s opposite female 8pin connector to the previously become free male 8pin connector at the rear-side of the factory monitor. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 11: Connection - Video Sources
Connect the RCA of the video source 1 and video source 2 to the video cable’s female „Video IN1“ and „Video IN2“. Connect the rear-view camera’s RCA to the video cable’s female RCA „Camera IN“. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 12: After-Market Rear-View Camera
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the 6pin cable’s green wire before. Connect stabile and permanent +12V to the relay’s input connector (30). Note: Set dip5 of video-interface to ON. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 13: Connection - Video Interface And External Keypad
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 14: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available: Contrast Brightness Saturation Position H (horizontal) Position V (vertical) IR-AV1/2 (no function) Guide L/R (no function) UI-CNTRL (no function) Size H/V (picture size horizontal/vertical) Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 15: Video Interface Operation
Disabled inputs will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad or the white wire of the 6pin to 8pin cable has to be used (see following chapter). Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 16: By External Keypad
260mA Video input 0.7V - 1V Video input formats NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 112 x 23 x 111 mm (W x H x D) Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 17: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 09.02.2023 HW: CAM(V31)/(V22) RL2-MZD... -
Page 18: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
