Fireplace Installation

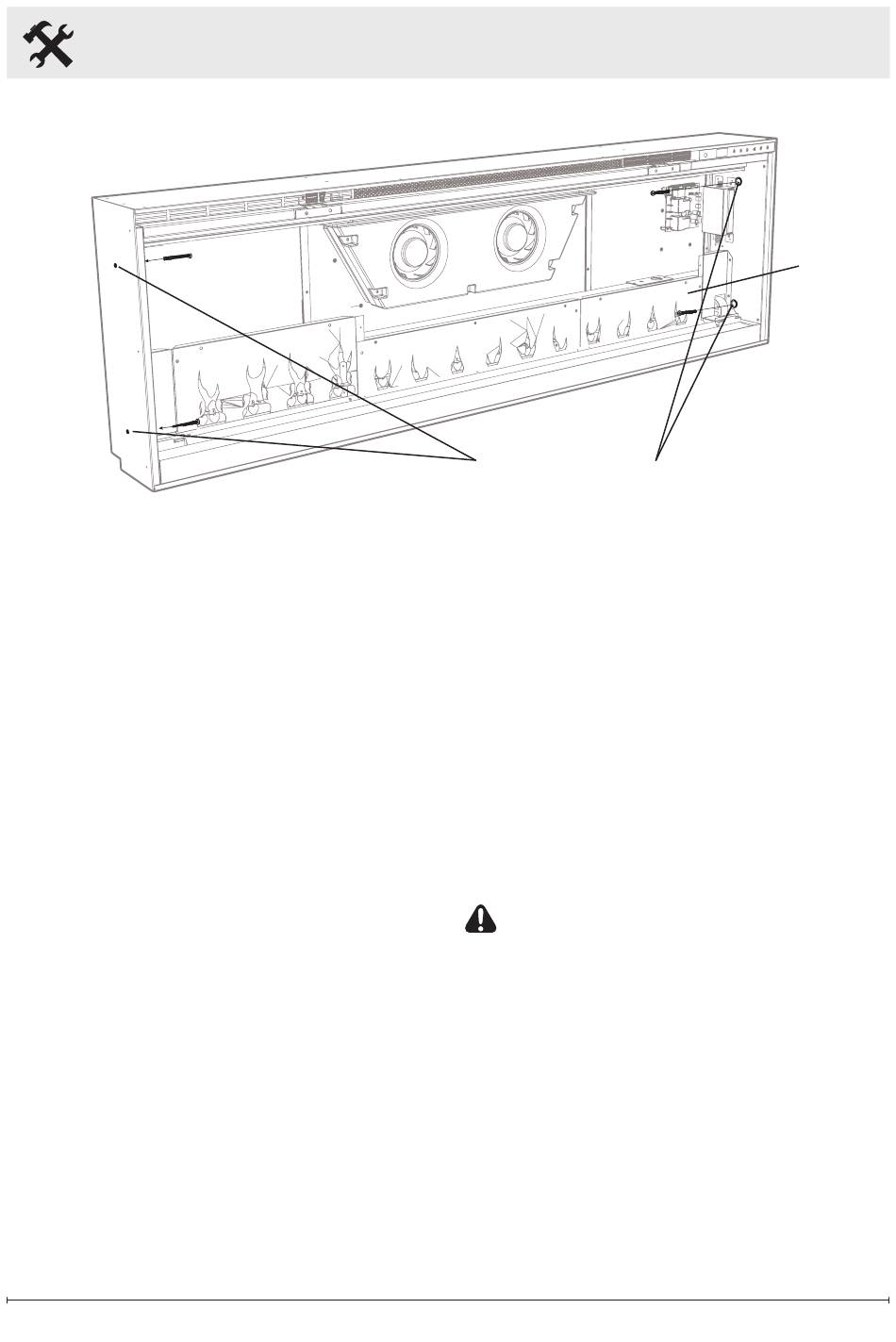

Figure 4
4. Lift fireplace, from the bottom
and the handles located on the
back, and insert into opening to
the desired depth.
5. Using a bubble level (supplied)
ensure that the fireplace is level
within the framing. Adjust as
required.
6. Drive four supplied mounting
screws through the four
mounting holes located on the
inside surface of the fireplace
chassis, into wall studs
(Figure 4).
Mounting Holes
120V Installation - Direct Wire
!
NOTE: The unit is designed
to be hardwired to a power
source and should not have
a cord installed to allow the
unit to be plugged into a wall
receptacle.
Use two conductor, non-metallic
sheath cable with ground wire
(3 wires total) for the incoming
power supply.
CAUTION: Use the
appropriate wire to meet local
and national electrical codes
for rated power consumption.
• Cut the wire to an appropriate
length.
• Connect the L wire from the
unit to the live wire from the
power supply with a wire nut.
Flame
Panel
