Installation du foyer

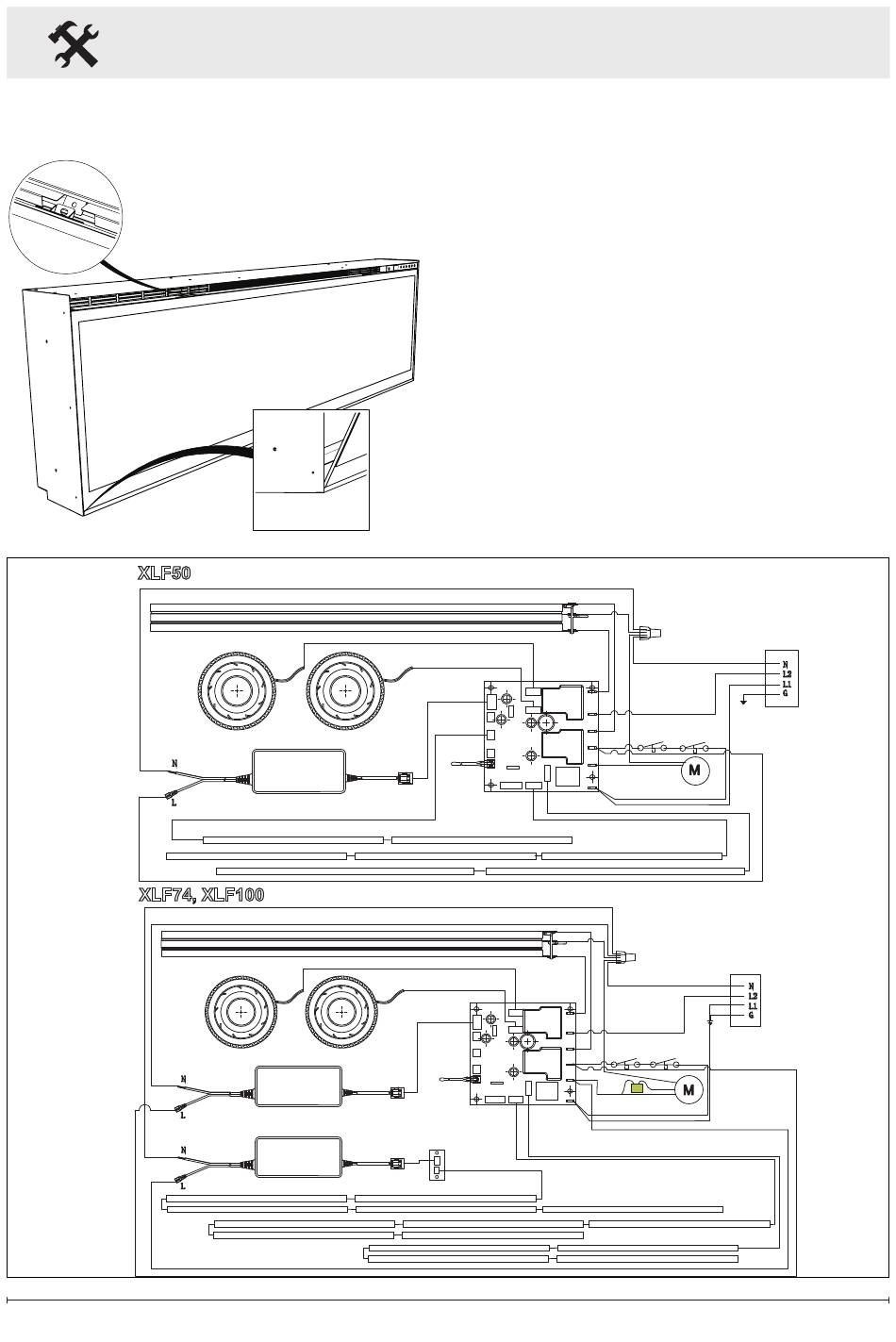

Figure 7
XLF50
XLF74, XLF100
CERAMIC ELEMENT
FAN
FAN
POWER ADAPTER
FLAME LED ASSEMBLY
CERAMIC ELEMENT
FAN
FAN
POWER ADAPTER
RELAY BOARD
POWER ADAPTER
FLAME LED ASSEMBLY
MAIN CONTROL
BOARD
THERMISTOR
MAIN CONTROL
BOARD
THERMISTOR
Figure 8
THERMAL
CUTOUTS
M
FLICKER MOTOR
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
THERMAL
CUTOUTS
M
FLICKER MOTOR
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
13
