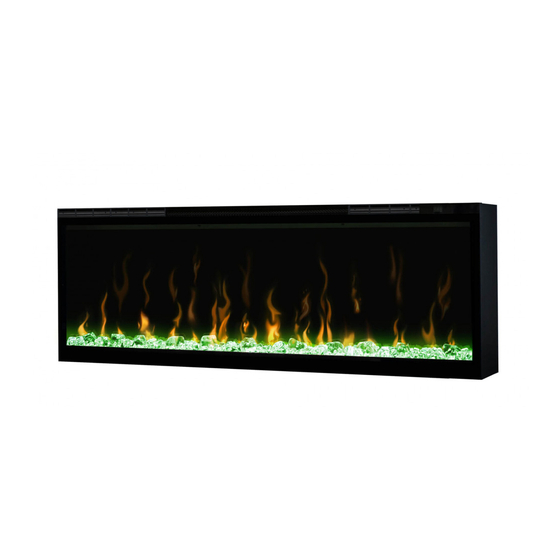

Dimplex XLF50 Service Manual

Hide thumbs Also See for XLF50:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this
fireplace. For your safety, always comply with all warnings and safety instructions contained in this
manual to prevent personal injury or property damage.
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N3H 4W3
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2016 Dimplex North America Limited
Service Manual
Model
UL Part Number
XLF50 6909630100
XLF74 6909690100
XLF100 6909700100
REV
PCN
DATE
00
-
21-JAN-16
7400940000R00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XLF50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dimplex XLF50

Summary of Contents for Dimplex XLF50

  • Page 1 Dimplex North America Limited 21-JAN-16 1367 Industrial Road Cambridge ON Canada N3H 4W3 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice. © 2016 Dimplex North America Limited 7400940000R00...

  • Page 2: Table Of Contents

    NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com...

  • Page 3: Operation

    OPERATION Flame Effects Turns the Flame Effect On and Off. Figure 1 → Activated by pressing the button on the remote. Heat ON/OFF Turns the heater On and Off. → Activated by pressing the button on the remote or the unit.

  • Page 4: Additional Key Combinations

    Resetting the Temperature Cutoff Switch Should the heater overheat, an automatic cut out will turn the whole unit off and it will not come back on without being reset. If the button on the unit is pressed, Er2 will be www.dimplex.com...

  • Page 5: Maintenance

    MAINTENANCE WARNING: Disconnect power and allow heater to cool before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. NOTE: The fireplace should not be operated with an accumulation of dust or dirt on or in the unit, as this can cause a build up of heat and eventual damage.

  • Page 6: Exploded Parts Diagram - Xlf50

    EXPLODED PARTS DIAGRAM - XLF50 Replacement Parts List - XLF50 1. Heater Assembly (with cutouts) ..2203720100RP 12. 8-Light LED Flame Assembly ..3001670200RP 2. Remote Control ....3001250100RP 13.

  • Page 7: Exploded Parts Diagram - Xlf74

    EXPLODED PARTS DIAGRAM - XLF74 LED Configuration Flame LED’s (white) Flame Base (colour) Media (colour) Replacement Parts List - XLF74 1. Heater Assembly (with cutouts) ..2203720100RP 12. 8-Light LED Flame Assembly (2) ..3001670200RP 2.

  • Page 8: Exploded Parts Diagram - Xlf100

    9. Flicker Motor .....2000480200RP Driftwood Accessory Kit (2) ... . . LF50DWS-KIT 10. Flicker Assembly ....5902920300RP www.dimplex.com...

  • Page 9: Wiring Diagrams

    WIRING DIAGRAMS XLF50 CERAMIC ELEMENT MAIN CONTROL BOARD THERMAL CUTOUTS THERMISTOR POWER ADAPTER FLICKER MOTOR FLAME LED ASSEMBLY MEDIA LED ASSEMBLY MEDIA LED ASSEMBLY XLF74, XLF100 CERAMIC ELEMENT MAIN CONTROL BOARD THERMAL CUTOUTS THERMISTOR POWER ADAPTER FLICKER MOTOR RELAY BOARD...

  • Page 10: Preparation For Service

    NOTE: All instructions are created for replacement of the XLF50 components and as a result the number of screws may differ for the XLF74 and XLF100. 1. Turn the breaker off at the electrical panel.

  • Page 11: Main Control Board Replacement

    (Fig- Figure 6 ure 5) XLF50 7. Gently lift the partially reflective glass out of the unit and set it aside in a safe place. CAUTION: Partially Reflective Glass is not tempered.

  • Page 12: Capacative Controls And Display Replacement

    8. Install the new assembly onto the unit and secure the Front LED strip to the unit. Panel 9. Reattach the wire connections. 10. Ensure that all cords are replaced in the same manner as prior to the service. 11. Reassemble in the reverse order as above. www.dimplex.com...

  • Page 13: Flicker Assembly Replacement

    FLICKER ASSEMBLY REPLACEMENT 7. Remove the 2 screws holding the flicker motor to the mounting bracket. Gently pull the motor away from the WARNING: Disconnect power before attempting any flicker rod. maintenance or cleaning to reduce the risk of electric 8.

  • Page 14: Blower/Fan Replacement

    NOTE: Using a flat head screwdriver gently pry be- tween the end of the connectors and the blower/fan to release the wires. 4. Properly orient the new blower/fan assembly and con- nect all of the wiring connections. 5. Reassemble in the reverse order as above. www.dimplex.com...

  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION General Circuit breaker trips or fuse blows Short in unit wiring. Trace wiring in unit. when unit is turned on Improper circuit current rating Additional appliances may exceed the current rating of the circuit breaker or fuse. Plug unit into another outlet or install unit on a dedicated 15 amp circuit.
  • Page 16 Grinding or excessive noise with Flicker rod hitting or rubbing against inter- Ensure rod is straight and mounted properly in the the heater off nal components bracket, spinning freely away from other components. Replace if necessary. Defective Flicker Motor Replace Flicker Motor www.dimplex.com...

This manual is also suitable for:

Xlf74Xlf100
