Dimplex Xpression SP220 Installation And Operating Instructions Manual

Xpression Wall fire SP2
Model No: SP220

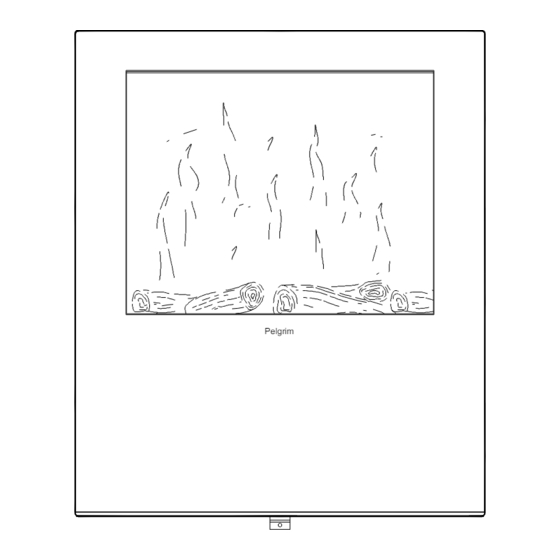

Dimensions
(millimetres)
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE.
Important Safety Advice:
When using electrical appliances, basic
precautions should be followed to reduce the risk
of fire, electric shock, and injury to persons,
including the following :
• If the appliance is damaged, check
immediately with the supplier before
installation and operation.
• Do not use this heater in the immediate
surroundings of a bath, shower or swimming
pool
.
•
Do not use outdoors.
• This heater must not be located immediately
above or below a fixed socket outlet or
connection box.
•
Do not cover or obstruct in any way the heat
outlet grille located underneath the heater.
Overheating will result if the heater is
accidentally covered.
•
In the event of a fault unplug the heater.
•
Unplug the heater when not required for long
periods.
•
The supply cord must be placed on the right
hand side of the heater away from the heat
outlet underneath the heater.
Although this heater complies with safety
•
standards, we do not recommend its use on
deep pile carpets or on long hair type of rugs.
•
Do not leave young children, the elderly, or
the infirm unsupervised in the vicinity of the
heater.
• The appliance must be positioned so that the
plug is accessible.
•
If the supply cord is damaged it must be
replaced by the manufacturer or service agent
or similarly qualified person in order to avoid
a hazard.
100 495
min.
Pelgrim
bracket
rotated
from transit
position
Front

Installation and Operating Instructions

180
Controls
(see Fig. 6)
Viewing
Screen
587
Air
In
300
fixed
min.
socket
outlet
Side
Electrical
WARNING – THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC ~ supply only and the
voltage marked on the heater must correspond to the supply
voltage.
Do not switch the appliance on until properly installed. Please
read all the safety warnings and operating instructions.
General
Unpack the heater carefully and retain the packaging for
possible future use, in the event of moving or returning the
fire to your supplier.
Contents of Carton.
•
SP2 Heater.
•
Wall fixing bracket.
•
Three fixing screws and three wall plugs.
•
Remote control and batteries (3 AAA's type).
•
Spare bulb.
Do not connect the heater to an electricity supply until it is
installed on a wall correctly. - see 'Installation'.
A choice of 1kW or 2kW heat output is provided by the fan
heater, which is concealed underneath the unit.
The heater can be used remotely or manually. - see
'Operation'.
General features of remote control are:
•
Heat output can be increased or decreased
according to your particular requirements.
•
The illumination of fuel effect can be increased or
decreased.
•
Programmable timer.
Please note: Used in an environment where background
noise is very low, it may be possible to hear the fan which
operates the flame effect. This is normal and should not be
a cause for concern.
08/18802/1
Heat
Out
Fig. 1
Issue 1
