Advantech UNO-2160 User Manual

Celeron-400 universal network controller with pc/104 extension
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UNO-2160
Celeron-400 Universal Network
Controller with PC/104 extension
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNO-2160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech UNO-2160

Summary of Contents for Advantech UNO-2160

  • Page 1 UNO-2160 Celeron-400 Universal Network Controller with PC/104 extension User Manual...
  • Page 2 C&T is a trademark of Chips and Technologies, Inc. All other product names or trademarks are properties of their respective owners. Support For more information on this and other Advantech products, please visit our websites at: http://www.advantech.com For technical support and service, please visit our support website at: http://www.advantech.com/support/...
  • Page 3 Product Warranty Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for one year from the date of purchase. This warranty does not apply to any products that have been repaired or...
  • Page 4 UNO-2160 User Manual...

  • Page 5: Table Of Contents

    Chassis Dimensions............5 Figure 1.1:Chassis Dimensions........5 Chapter 2 Hardware Functionality ........8 Introduction ............... 8 Figure 2.1:Front panel of UNO-2160 ......8 Figure 2.2:Rear panel of UNO-2160 ......8 RS-232 Interface (COM1~COM2) ........8 RS-232/422/485 Interface (COM3~COM4) ..... 9 2.3.1 16C550 UARTs with 16-byte standard ......
  • Page 6 System I/O Address and Interrupt Assignment.... 22 Table A.1: UNO-2160 System I/O Ports ...... 22 Board Connectors and Jumpers........24 Figure A.1:UNO-2160 conn. and jp. locations (fs) ..24 Figure A.2:UNO-2160 conn. and jp. locations (bs)..24 RS-232 Standard Serial Port (COM1~COM2) ....26 RS-232/422/485 Serial Port (COM3~COM4) ....
  • Page 7 Overview This chapter provides an overview of UNO-2160’s specifications. Sections include: • Introduction • Hardware specification • Safety precautions • Chassis dimensions...

  • Page 8: Chapter 1 Overview

    Chapter 1 Overview 1.1 Introduction UNO-2160 is an embedded Application Ready Platform (ARP) that can shorten your development time and offers rich networking interfaces to fulfill extensive needs in different projects. Advantech’s Universal Net- work Controller is designed to be a total solution for network enabled Application Ready Platforms.

  • Page 9: Hardware Specifications

    1.2 Hardware Specifications • CPU: Celeron-400 MHz Ultra low-voltage version • Memory: 256/512 MB SDRAM on board (Default: 256 MB SDRAM). • Battery-backup RAM: 512 KB Battery-backup RAM • VGA/Keyboard/Mouse: DB-15 VGA Connector, PS/2 keyboard and mouse • Serial Ports: 2 × RS-232 and 2 x RS-232/422/485 with DB-9 connec- tors.

  • Page 10: Safety Precautions

    Caution! Always ground yourself to remove any static electric charge before touching UNO-2160. Mod- ern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static-shielded bag.

  • Page 11: Chassis Dimensions

    1.4 Chassis Dimensions Figure 1.1: Chassis Dimensions Chapter 1...
  • Page 12 UNO-2160 User Manual...
  • Page 13 Hardware Functionality This chapter shows how to setup the UNO-2160’s hardware functions, including connecting peripherals, set- ting switches and indicators. Sections include: • Peripherals • RS-232 Interface • RS-232/422/485 Interface • LAN / Ethernet Connector • Power Connector • PS/2 Mouse and Keyboard Connector •...

  • Page 14: Chapter 2 Hardware Functionality

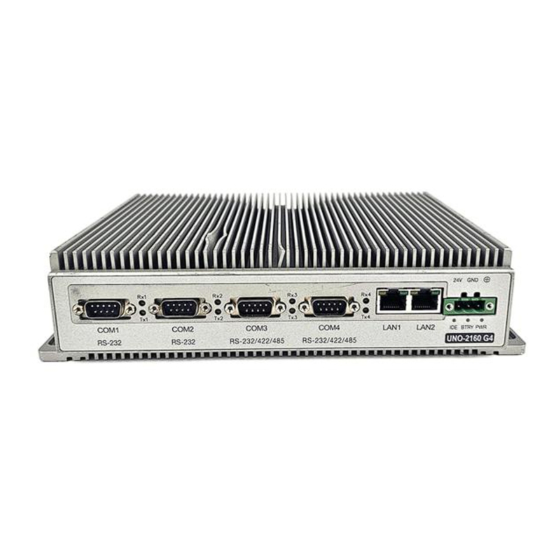

    Chapter 2 Hardware Functionality 2.1 Introduction The following two figures show the connectors on UNO-2160. The fol- lowing sections give you detailed information about function of each peripheral. Figure 2.1: Front panel of UNO-2160 Figure 2.2: Rear panel of UNO-2160 2.2 RS-232 Interface (COM1~COM2)

  • Page 15: Rs-232/422/485 Interface (Com3~Com4)

    Advantech UNO-2160 comes with TI16C550 UARTs containing 16 bytes FIFOs. 2.3.2 RS-422/485 detection In RS-422/485 mode, UNO-2160 automatically detects signals to match RS-422 or RS-485 networks. (No jumper change required) 2.3.3 Automatic Data Flow Control Function for RS-485 In RS-485 mode, UNO-2160 automatically detects the direction of incoming data and switches its transmission direction accordingly.

  • Page 16: Rs-232/422/485 Selection

    To select between RS-422/485 and RS-232 for COM4, adjust JP5. Jumper setting for RS-422/485 interface: (Default setting). (JP4 and JP5) Figure 2.3: RS-422/485 jumper setting Jumper setting for RS-232 interface: (JP4 and JP5) Figure 2.4: RS-232 jumper setting UNO-2160 User Manual...

  • Page 17: Rs-485 Auto Flow Control Mode And Rs-422 Master/Slave Mode Selection

    2.3.6 RS-485 Auto Flow Control Mode and RS-422 Mas- ter/Slave Mode Selection You can set the “Auto Flow Control” mode of RS-485 or “Master/Slave” mode of RS-422 by using the SW3 DIP switch for each RS-422/485 port. In RS-485, if the switch is set to “Auto”, the driver automatically senses the direction of the data flow and switches the direction of transmission.

  • Page 18: Irq And Address Setting

    Speed x 8* Speed x 1 (default) * To increase the normal baud rates by eight times, (e.g. if 115.2K bps is set, the baud rate will be increased to 921.6K bps), set switch 2 of SW2 to “on”. UNO-2160 User Manual...

  • Page 19: Lan: Ethernet Connector

    2.6 PS/2 Keyboard and Mouse Connector The UNO-2160 provides a PS/2 keyboard and PS/2 mouse connector. A 6-pin mini-DIN connector is located on the rear panel of the UNO-2160. The UNO-2160 comes with an adapter to convert from the 6-pin mini- DIN connector to two 6-pin mini-DIN connectors for PS/2 keyboard and PS/2 mouse connection.

  • Page 20: Pcmcia: Pc Card Slot

    / 1024 x 768 @ 16bpp resolution and up to 32 MB shared memory. The VGA interface is reserved for system testing and debugging. The UNO-2160's JP8 is a 6-pin mini connector and CN7 is a 15-pin connector for a VGA monitor. A VGA cable is attached to convert from a 6-pin mini connector to standard VGA connector.

  • Page 21: Battery Backup Sram

    There is a BTRY LED in the front panel of the UNO-2160, please replace the lithium battery with a new one if the BTRY LED is activated.
  • Page 22 UNO-2160 User Manual...
  • Page 23 Initial Setup This chapter introduces how to initial- ize the UNO-2160. Sections include: • Introduction • Inserting a CompactFlash™ Card • Chassis Grounding • Conneting Power • Connecting a Hard Disk • BIOS Setup and System Assignments...

  • Page 24: Chapter 3 Initial Setup

    The procedure for installing a CompactFlash™ card into the UNO-2160 is detailed below, please follow these steps carefully. Remove the power cord. Unscrew the four screws from the rear panel of the UNO-2160. Remove the rear panel. Plug a CompactFlash card with your OS and application program into a CompactFlash card slot on board.

  • Page 25: Connecting Power

    Closed - Connects system power ground and chassis ground. (default) 3.3 Connecting Power Connect the UNO-2160 to a 9~36 VDC power source. The power source can either be from a power adapter or an in-house power source. 3.4 Installing a Hard Disk The procedure for installing a hard disk into the UNO-2160 is below.
  • Page 26 UNO-2160 User Manual...
  • Page 27 System Settings and Pin Assignments...

  • Page 28: Appendix A System Settings And Pin Assignments

    Appendix A System Settings and Pin Assignments A.1 System I/O Address and Interrupt Assignment Table A.1: UNO-2160 System I/O Ports Address Range Device 000-01F DMA controller (slave) 020-03F Interrupt controller 1, (master) 040-05F 8254 timer/counter 060-06F 8042 (keyboard controller) 070-07F...
  • Page 29 Table A.1: UNO-2160 System I/O Ports Address Range Device 3D0-3DF Color/graphics monitor adapter 3F0-3F7 Diskette controller 3E8-3EF Serial port 3 3F8-3FF Serial port 1 Watchdog timer DC000-DFFFF Battery backup resource Table A.2: UNO-2160 Interrupt Assignment Interrupt No. Interrupt Source Parity error detected...

  • Page 30: Board Connectors And Jumpers

    A.2 Board Connectors and Jumpers There are several connectors and jumpers on the UNO-2160 board. The following sections tell you how to configure the UNO-2160 hardware setting. Figure A-1 and Figure A-2 show the locations of UNO-2160’s connectors and jumpers.
  • Page 31 Table A.3: UNO-2160 Connectors and Jumpers Label Function Phoenix power connector Ethernet port 1 Ethernet port 2 COM1 RS-232 serial port COM2 RS-232 serial port CN15 COM3 RS-232/422/485 serial port CN16 COM4 RS-232/422/485 serial port USB connector PS/2 keyboard and mouse connector...

  • Page 32: Rs-232 Standard Serial Port (Com1~Com2)

    A.3 RS-232 Standard Serial Port (COM1~COM2) Table A.4: RS-232 standard serial port pin assignments RS-232 Signal Name UNO-2160 User Manual...

  • Page 33: Rs-232/422/485 Serial Port (Com3~Com4)

    A.4 RS-232/422/485 Serial Port (COM3~COM4) Table A.5: RS-232/422/485 serial port pin assignments RS-232 RS-422 RS-485 DATA- DATA+ A.5 Ethernet RJ-45 Connector (LAN1~LAN2) Table A.6: Table A-5: Ethernet RJ-45 connector pin assignments 10/100Base-T Signal Name XMT+ XMT- RCV+ RCV- Appendix A...

  • Page 34: Phoenix Power Connector (Pwr)

    A.6 Phoenix Power Connector (PWR) Table A.7: Power connector pin assignments 10/100Base-T Signal Name +9~36VDC A.7 PS/2 Keyboard and Mouse Connector Table A.8: Keyboard and Mouse connector pin assignments Signal Name KB DATA MS DATA KB Clock MS Clock UNO-2160 User Manual...

  • Page 35: Usb Connector (Usb1~Usb2)

    A.8 USB Connector (USB1~USB2) Table A.9: USB connector pin assignments Signal Name Cable Color DATA+ White DATA- Green Black A.9 VGA Display Connector Table A.10: Table A-9: VGA adaptor cable pin assignment Signal Name Green Blue H-SYNC V-SYNC Appendix A...
  • Page 36 UNO-2160 User Manual...
  • Page 37 Programming the Watchdog Timer...

  • Page 38: Appendix B Programming The Watchdog Timer

    After data entry, your program must refresh the watchdog timer by rewriting the I/O port 443 (hex) while simultaneously setting it. When you want to disable the watchdog timer, your program should read I/O port 443 (hex). UNO-2160 User Manual...
  • Page 39 The following example shows how you might program the watchdog timer in BASIC: 10 REM Watchdog timer example program 20 OUT &H443, data REM Start and restart the watchdog 30 GOSUB 1000 REM Your application task #1, 40 OUT &H443, data REM Reset the timer 50 GOSUB 2000 REM Your application task #2, 60 OUT &H443, data REM Reset the timer 70 X=INP (&H443) REM, Disable the watchdog timer...
