No. Interface
1 RJ45 Connector
2 RJ45 Connector
3 RJ45 LED
4 Power Jack
5 Power LED Indication
6 Status Indication
7 DIP Switch
Description
1. Link speed of port 1 and 2 must be sync, or they are not able to activate network connection.
2. Once the port 1 and 2 remain unlinked, the IP09 will automatically turn to Power Saving mode.

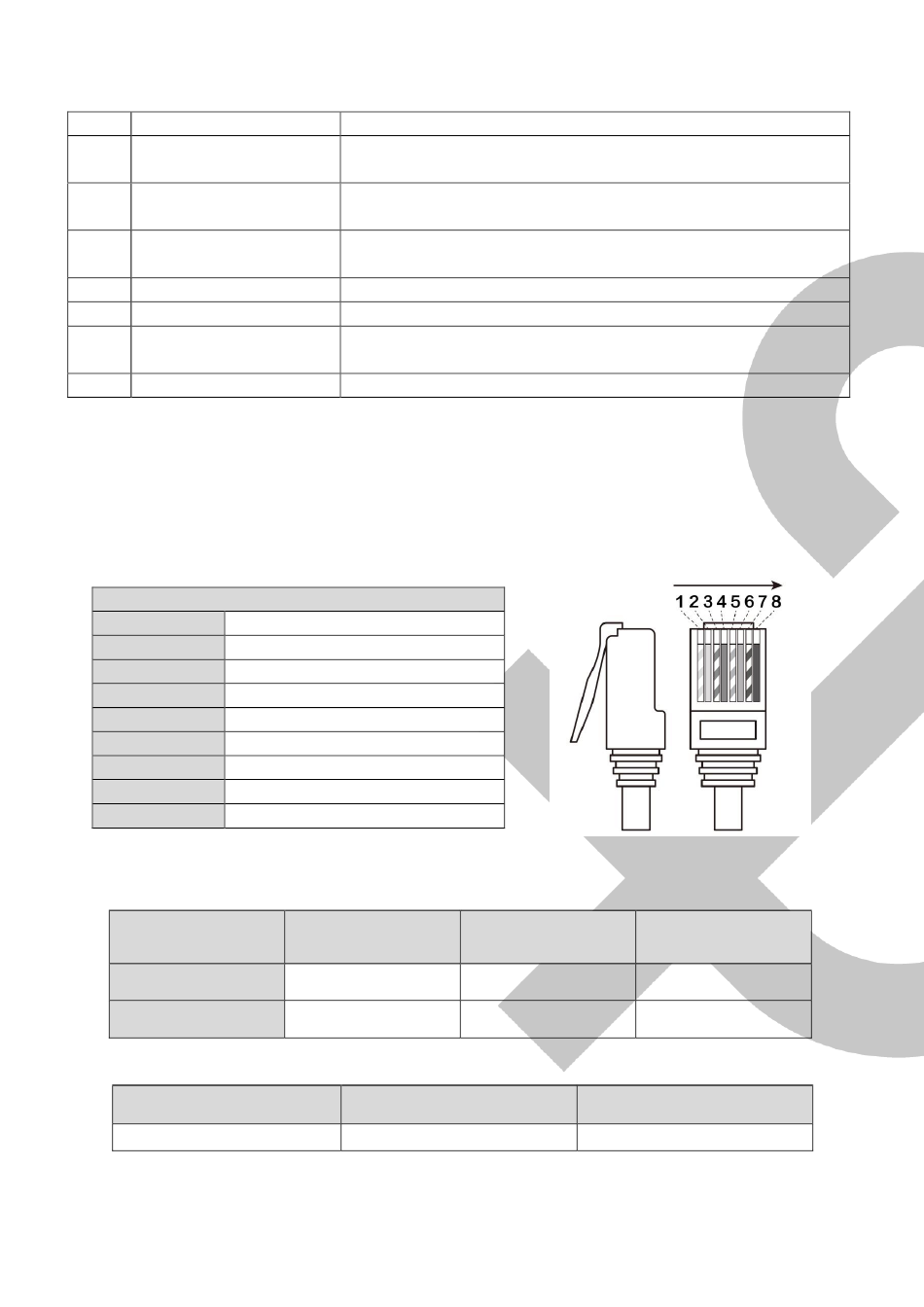

3. RJ45 Pinout
(PIN TIA/EIA-568B)
PIN
1
2
3
4
5
6
7
8
4. RJ45 LED
Data Rate
100Mbs
10Mbps
5. Power LED Indication
Green On
Power On
Functionality
Port 1；To connect networking devices or another IP09
(Refer to Description 1,2,3)
Port 2；To connect networking devices or another IP09
(Refer to Description 1,2,3)
To indicate the network connection status
(Refer to Description 4)
To connect DC12V 0.5A adapter
To indicate the power status (Refer to Description 5)
□
1 Status : Port 1 mode indication (Refer to Description 6)
□
2 Status : Port 2 mode indication (Refer to Description 6)
To select the desired mode (Refer to Description 7)
Wire Color
Orange-white
Orange
Green-white
Blue
Blue-white
Green
Brown-white
Brown
LED On
Enable
Enable
Green Off
Power Off
LED Off
Disable
Disable
Light Breathing
Power Saving
