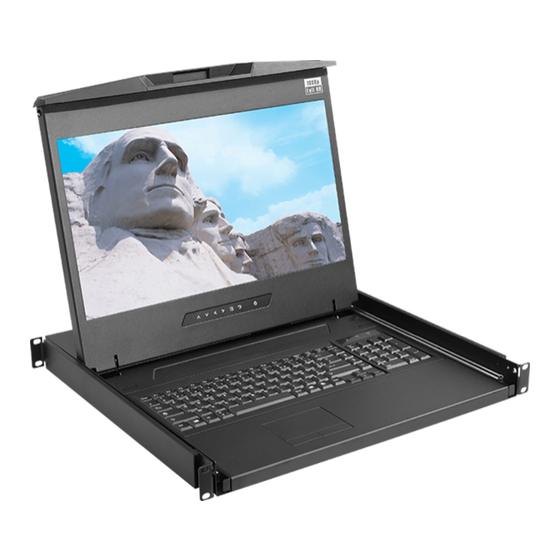

- Page 1 KVM switch and rackmount screen technology User Manual 1U 19″ FHD LCD Console Drawer F119 1920 x 1080 native resolution Designed and manufactured by Austin Hughes UM-CV-751-F119-Q421V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-F119-Q421V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > F119 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.12 < Part. 3 >... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-F119-Q421V1 www.austin-hughes.com...
-
Page 5: F119
< Part 1 > F119 < 1.1 > Package Content F119 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 <... - Page 6 < 1.2 > Dimension - F119 Front View Rear View DVI-D AC Input 100~240V Power UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H)
-
Page 7: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-F119-Q421V1 www.austin-hughes.com... - Page 8 < 1.3 > Installation - How to use the F119 drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-F119-Q421V1 www.austin-hughes.com...
-
Page 9: Connection
Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-F119-Q421V1 www.austin-hughes.com... - Page 10 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-F119-Q421V1 www.austin-hughes.com...
-
Page 11: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations F119 Panel Native Resolution 1920 x 1080 Panel Size ( diagonal ) 18.5" Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 16.7 M... - Page 12 Physical F119 Specifi cation Product ( W x D x H ) 441.6 x 460 x 44 mm 17.4 x 18.1 x 1.73 inch Packing ( W x D x H ) 590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch Net Weight 11.5 kg / 25.3 lb...
-
Page 13: Keyboard / Mouse Specifi Cations
Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States EMEA United Kingdom Germany France Spain Italy Asia Japan Korea UM-CV-751-F119-Q421V1 www.austin-hughes.com... - Page 14 How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts. Dashboard Increase volume Eject disc Rewind Command Play / Pause UM-CV-751-F119-Q421V1 P.10 www.austin-hughes.com...
- Page 15 Audio / Display Keys * Please ask your supplier for full details Audio : Mute Audio : Decrease volume Display : Degauss Display : Decrease contrast Audio : Increase volume Display : Increase contrast UM-CV-751-F119-Q421V1 P.11 www.austin-hughes.com...
-
Page 16: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) F119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 17 : Auto / Line in / DP Volume : Adjust the volume of sound Sleep mode : Set the off time - 10 min / 20 min / 30 min / 50 min / 60 min / 120 min / 240 min UM-CV-751-F119-Q421V1 P.13 www.austin-hughes.com...
- Page 18 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 19 ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi x the issue. UM-CV-751-F119-Q421V1 P.15 www.austin-hughes.com...
- Page 20 ( 1 ) If the unit with LCD, earthing may be required ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) F119 chassis extension in depth to 530mm ( 20.9” ) UM-CV-751-F119-Q421V1 P.16 www.austin-hughes.com...
- Page 21 < Part 4 > < 4.1 > F119 KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf...
- Page 22 Intentionally Left Blank UM-CV-751-F119-Q421V1 www.austin-hughes.com...
- Page 23 Intentionally Left Blank UM-CV-751-F119-Q421V1 www.austin-hughes.com...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-F119-Q421V1 www.austin-hughes.com...
