Cold Jet PR350H Pre-Installation page 47

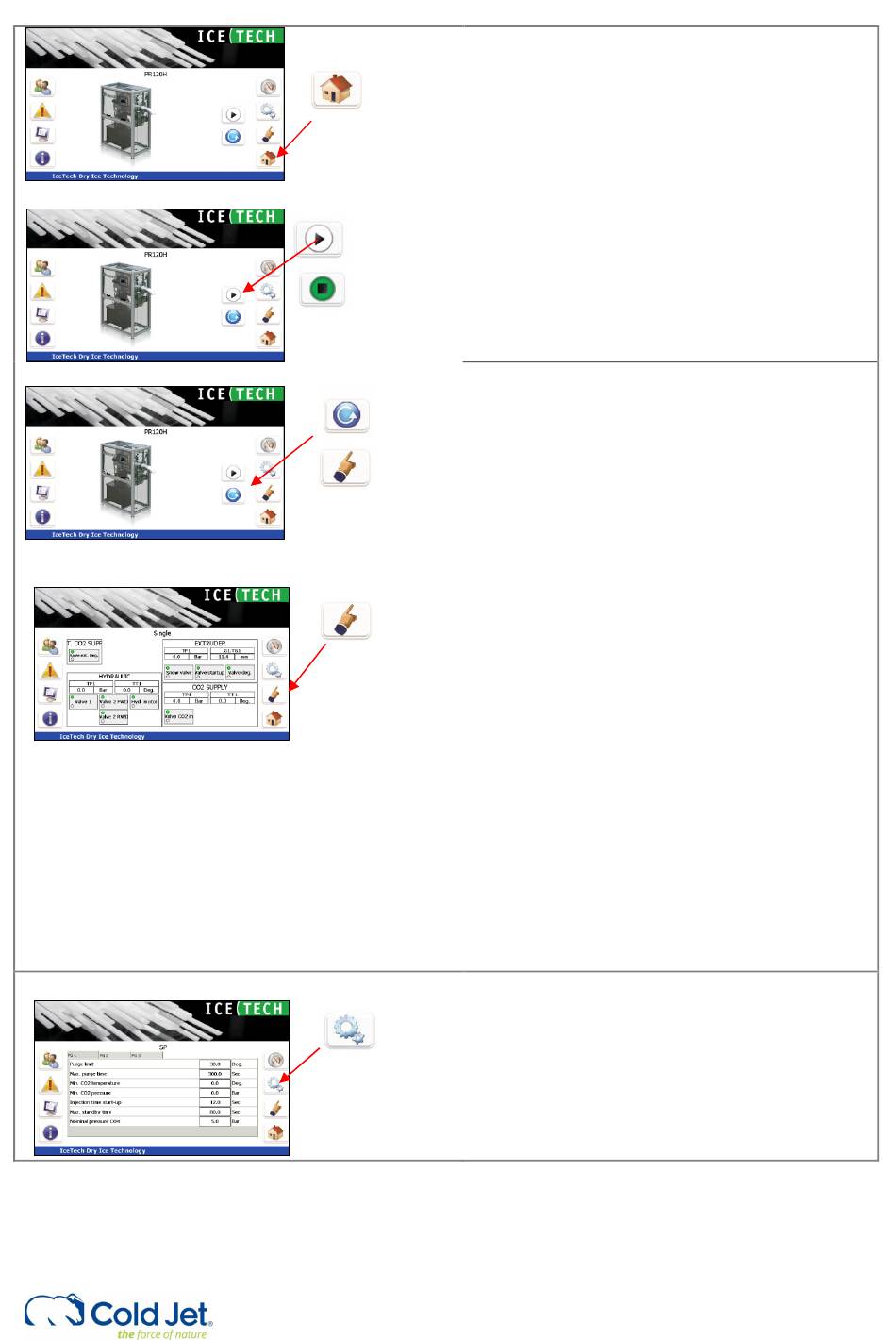

1 Start up page
This page can be activated from any page by pressing
the "Home button" in the lower right hand corner.
2 Start /Stop
By activating the "Start / Stop" button, the machine
starts or stops when in group mode.
3 Mode select
By activating the "mode select" button, it is possible to
choose between automatic mode and single mode.
The default selection is automatic mode, which must
be selected for production. In single mode, the
components can be operated individually.
4 Single mode controls
By activating the "Single mode" button, the manual
operation page will appear. On this page, it is possible
to access the function in single mode, i.e. operating
the components one by one.
This page should only be operated by well-trained staff
and with reference to P&I diagram.
The components will be activated by pressing the
buttons. When the component is activated and working
properly, the button will turn green showing
"Component OK".
Most components have real names like "purge valve"
and moving the hydraulic cylinders can be done by
starting the hydraulic motor and pressing the arrow
buttons.
The hydraulic valves have numbers corresponding to
the P&I diagram.
5 Set point
By pressing the "toothed wheel" button, the "Setpoint"
(SV) page is activated.
The "set point" section contains 3 pages display of set
values for the current dry ice production. Fixed set
points are password protected and have hardcoded
limits to avoid unsafe production.
PR120H
User's manual
Version: 1
Page: 13 of 14
Date: 2023.01.19
