Introduction; Figure 1-1. F2800137 Controlcard - Texas Instruments controlCARD TMDSCNCD2800137 User Manual

Introduction

1 Introduction
Each controlCARD comes with a Hardware Developer's Kit, which is a full set of files necessary to evaluate and
develop with a C2000 device. These files include:
• Schematics – Designed in Altium
• Bill of Materials (BOM)
• Layout PCB files - Designed in Altium
• Gerber files
The Hardware Developer's Kit for the controlCARD can be found in the C2000Ware at the following location:
• <install directory>\c2000\C2000Ware_x_xx_xx_xx\boards\controlCARDs\TMDSCNCD2800137\Rx_x
This kit is designed to explore the functionality of the F280013x microcontroller. The controlCARD
can be treated as a good reference design; it is not intended to be a complete customer design.
Full compliance to safety, EMI/EMC, and other regulations are left to the designer of the customer's
system.
2 TMDSCNCD2800137 controlCARD Information Guide

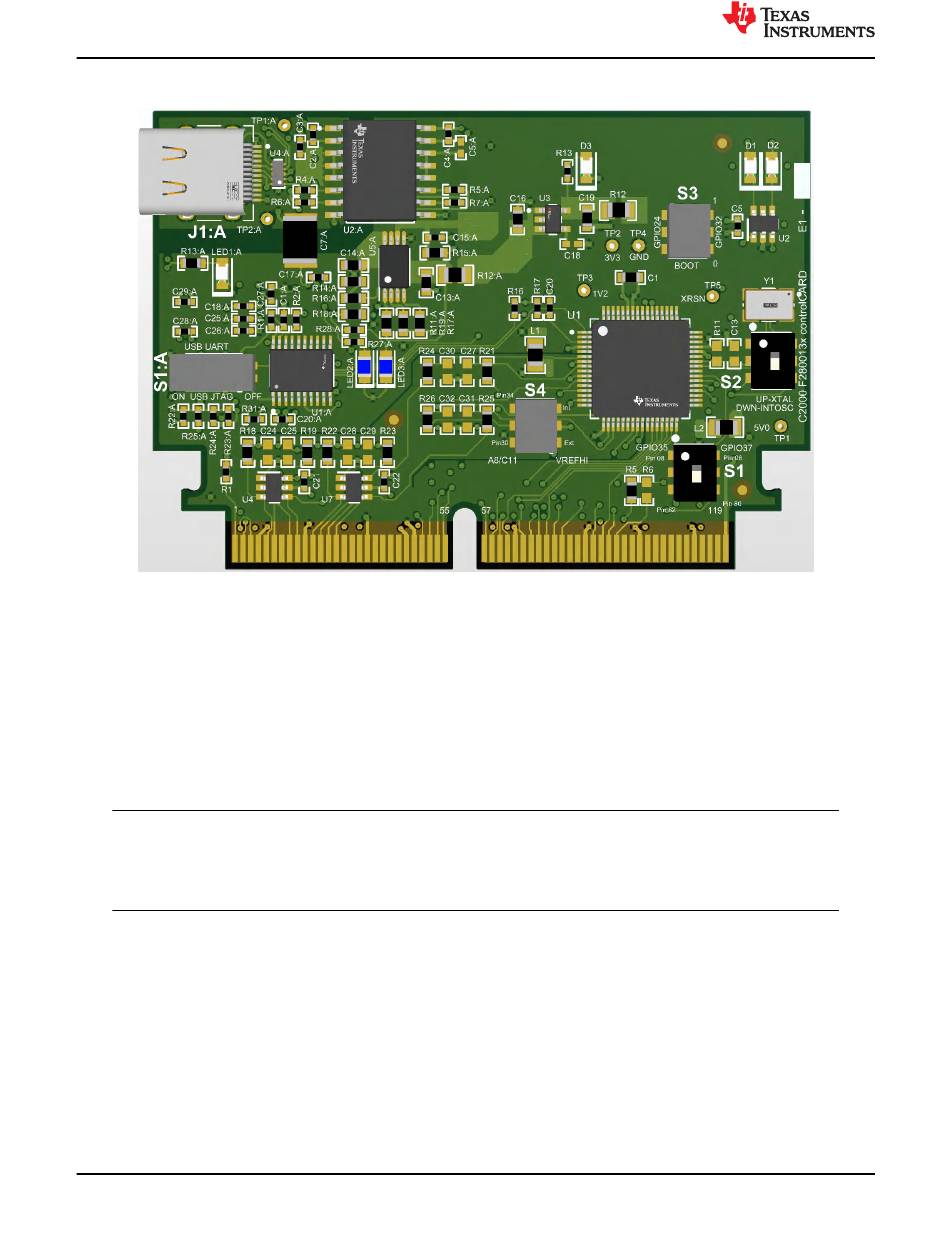

Figure 1-1. F2800137 controlCARD
