Texas Instruments TMDXEVM6472 Quick Setup Manual

Getting Started:
The EVMC6472 ships with a Power On self Test (POST) flashed
in to I2C EEPROM. The POST will be automatically executed
when the board is powered ON. POST will perform memory
test and EMAC internal loopback test. At 'power on' state the
user LEDs will glow. The LEDs will continue to glow while the
POST utility is being copied from EEPROM to IRAM. User LEDs
will turn OFF once the POST is copied to IRAM.
User LED-1 and user LED-2 will blink to indicate successful
executions of memory and EMAC internal loopback tests
respectively. These LEDs will turn OFF after completion of the
tests.
Please refer EVM User Guide for software installation and
other details.
Helpful Hints:
• Plug in all the cables before turning the EVM ON to
ensure proper grounding.
• Do not unnecessarily flex the boards, while inserting
cables. Excessive flexing can break the PCB traces.
Online Documentation
Most of the information on EVM6472 is available online. Some
of the most commonly used resources are mentioned below:
EVM6472 Information:
http://www.einfochips.com/TI-TMS320C6472-EVM.php
This link contains:
• Hardware & software details
• User Guide
• Technical Reference Manual
• TMS320C6472 Datasheet
• Frequently Asked Questions (FAQ)
C6472 DSP Information:
http://focus.ti.com/docs/prod/folders/print/tms320c6472.html
©2009 Texas Instruments Incorporated
TI Worldwide Technical Support
Internet
TI Semiconductor Product Information Center Home Page
support.ti.com
TI Semiconductor KnowledgeBase Home page
support.ti.com/sc/knowledgebase
Product Information Centers
Americas
Phone +1(972) 644-5580 Fax +1(972)927-6377
Internet/Email support.ti.com/sc/pic/americas.htm
Europe, Middle East and Africa
Phone
European Free Call 00800-ASK-TEXAS
(00800 275 83927)
International +49 (0) 8161 80 2121
Russian Support +7 495 981 0701
Note: The European Free Call (Toll Free) number is not active in all
countries. If you have technical difficulty calling the free call
number, please use the international number above.
Fax +(49) (0) 8161 80 2045
Internet support.ti.com/sc/pic/euro.htm
Japan
Fax
International +81-3-3344-5317 Domestic 0120-81-0036
Internet/Email
International support.ti.com/sc/pic/japan.htm
Domestic www.tij.co.jp/pic
Asia
Phone
International +91-80-413816651-
Domestic Toll-Free-Number Toll-Free-Number
Australia 800-999-084 Malaysia
China 800-820-8682 New Zealand
Hong Kong 800-96-5941 Philippines
India 1-800-425-7888 Singapore
Indonesia Taiwan
001-803-8861-1006
Korea 080-551-2804 Thailand
001-800-886-0010
Fax +886-2-2378-6808 Email
ti-china@ti.com
Internet support.ti.com/sc/pic/asia.htm
Important Notice: The products and services of Texas Instruments
Incorporated and its subsidiaries described herein are sold subject to TI's
standard terms and conditions of sale. Customers are advised to obtain the
most current and complete information about TI products and services
before placing orders. TI assumes no liability for applications assistance,
customer's applications or product designs, software performance, or
infringement of patents. The publication of information regarding any other
company's products or services does not constitute TI's approval, warranty or
endorsement thereof.
The floating bar is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners
eInfochips Literature: EVM6472_QSG_0.2

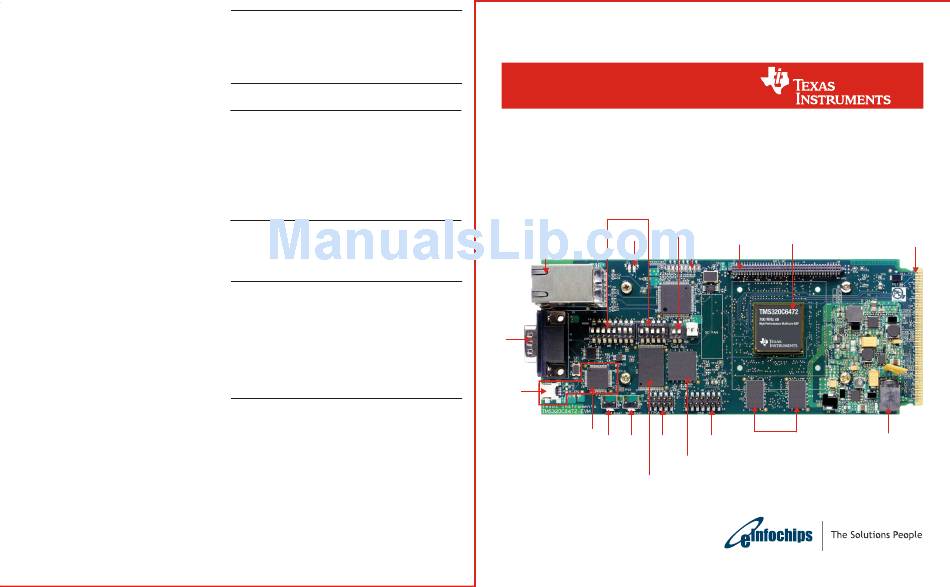

TMDXEVM6472
TMS320C6472 Evaluation Module
Quick Setup Guide
Boot Mode/Configuration
Dual Giga Ethernet
1-800-80-3973
RS232-
0800-446-934
Serial
1-800-765-7404
800-886-1028
0800-006800
tiasia@ti.com
USB mini-B
On-Board
Embedded
Emulation
Settings
User
Switches
HPI - DC
LEDs-I2C
User
LEDs
DDR2 RAM
JTAG- JTAG-DSP
Cold Warm
256 MB
Reset FPGA
Reset
FPGA
NAND Flash
128 MB
w w w . e i n f o c h i p s . c o m
C6472
AMC-
(6 Core DSP)
Type B+
12V DC
