User's Guide
TMDSCNCD2800157 controlCARD Information Guide
The F2800157 controlCARD (TMDSCNCD2800157) from Texas Instruments (TI) provides a great way to learn
and experiment with the F280015x devices. The F280015x device is a member of TI's C2000
microcontrollers (MCUs). This 120-pin controlCARD is intended to provide a well-filtered robust design that
is capable of working in most environments. This document provides the hardware details of the F2800157
controlCARD and explains the functions, locations of jumpers, and connectors present on the board.
1
Introduction.............................................................................................................................................................................2
2 Hardware Quick Setup Guide................................................................................................................................................
Standalone...............................................................................................................................................3
2.2 Configuration 2: External 5-V Supply.................................................................................................................................
3 Errata.......................................................................................................................................................................................
3.1 Warnings, Notes, and Errata..............................................................................................................................................
4 Getting Familiar with the controlCARD................................................................................................................................
4.2 Assumed Operating Conditions.........................................................................................................................................
4.3 Using the controlCARD......................................................................................................................................................
4.4 Experimentation Software..................................................................................................................................................
5 Special Notes..........................................................................................................................................................................
5.1 XDS110 Emulator and SCI (UART) Connectivity...............................................................................................................
Methodology........................................................................................................................................................7
5.3 Evaluation of the Analog-to-Digital Converters (ADCs).....................................................................................................
6 Hardware References.............................................................................................................................................................
7 Revision History...................................................................................................................................................................

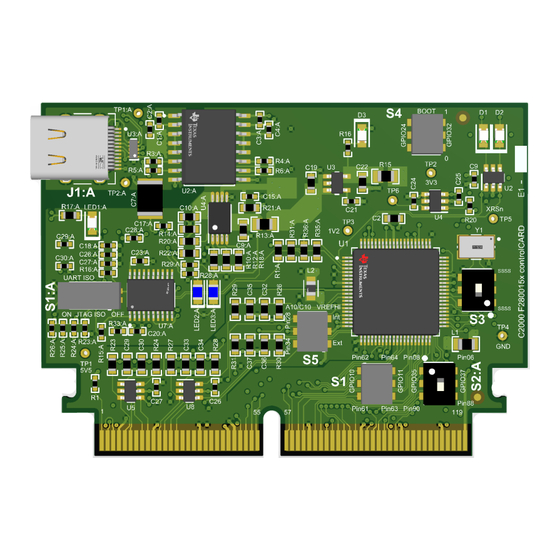

Figure 1-1. F2800157 controlCARD............................................................................................................................................
Figure 5-1. Female SMA Connector............................................................................................................................................
Figure 6-1. Key Components on the controlCARD - Front..........................................................................................................
Table 3-1. MCU106A...................................................................................................................................................................
Table 3-2. MCU106E1.................................................................................................................................................................
Table 4-1. Emulator Switch Selections........................................................................................................................................
Table 6-1. Hardware Connections.............................................................................................................................................
Trademarks
C2000
™
and Code Composer Studio
All trademarks are the property of their respective owners.
SPRUJ29A - APRIL 2022 - REVISED JANUARY 2023
Submit Document Feedback
ABSTRACT
Table of Contents
Revisions..............................................................................................................4
Features......................................................................................................................................5
List of Figures
Back.........................................................................................................10
List of Tables
Table..................................................................................................................................12
™
are trademarks of Texas Instruments.
Copyright © 2023 Texas Instruments Incorporated
™
TMDSCNCD2800157 controlCARD Information Guide
Table of Contents
family of
3
3
4
4
5
5
5
7
7
7
8
9
12
2
8
9
4
4
6
10
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TMDSCNCD2800157
Summary of Contents for Texas Instruments TMDSCNCD2800157
-
Page 1: Table Of Contents
Table of Contents User’s Guide TMDSCNCD2800157 controlCARD Information Guide ABSTRACT The F2800157 controlCARD (TMDSCNCD2800157) from Texas Instruments (TI) provides a great way to learn ™ and experiment with the F280015x devices. The F280015x device is a member of TI’s C2000 family of microcontrollers (MCUs). -
Page 2: Introduction
Full compliance to safety, EMI/EMC, and other regulations are left to the designer of the customer’s system. TMDSCNCD2800157 controlCARD Information Guide SPRUJ29A – APRIL 2022 – REVISED JANUARY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 3: Hardware Quick Setup Guide
3. LED1:A and D3 on the controlCARD illuminate. 2.2 Configuration 2: External 5-V Supply 1. Insert the TMDSCNCD2800157 controlCARD into a TMDSHSECDOCK, or other compatible docking station. 2. Connect a USB cable to J17 on the TMDSHSECDOCK. 3. Flip S1 to the "USB-ON" position on the TMDSHSECDOCK. The controlCARD automatically switches to the external 5-V supply. -
Page 4: Errata
5-V power supply instability can lead to device resets The 5-V rail on the TMDSCNCD2800157 controlCARD can be powered from an on-board USB connector or from a baseboard like the TMDSHSECDOCK. A switch device on the controlCARD automatically selects the 5-V input power source for the controlCARD without the need for user configuration. -
Page 5: Getting Familiar With The Controlcard
Furthermore, the capacitor C7:A must be removed to minimize the possibility of leakage-current flowing across the isolation barrier of the controlCARD. SPRUJ29A – APRIL 2022 – REVISED JANUARY 2023 TMDSCNCD2800157 controlCARD Information Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 6: Table 4-1. Emulator Switch Selections
Code Composer Studio™ is an Integrated Development Environment (IDE) used to debug and develop software for the C2000 series of MCUs. CCS IDE can be downloaded from the following link: http://www.ti.com/tool/ccstudio. TMDSCNCD2800157 controlCARD Information Guide SPRUJ29A – APRIL 2022 – REVISED JANUARY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 7: Experimentation Software
Getting Familiar with the controlCARD Note By default, the TMDSCNCD2800157 controlCARD is configured for 2-pin cJTAG mode. The Code Composer Studio IDE target configuration used to communicate with the embedded XDS110 emulator must be configured for 2-pin cJTAG mode. -
Page 8: Evaluation Of The Analog-To-Digital Converters (Adcs)
300-pF capacitors were used. Using this setup the ADC parameters were observed to be consistent with the numbers in the device-specific data sheet. Figure 5-1. Female SMA Connector TMDSCNCD2800157 controlCARD Information Guide SPRUJ29A – APRIL 2022 – REVISED JANUARY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 9: Hardware References
U1 – C2000 and A10/C10 GPIO11 connection F2800157 selection switch switch microcontroller Figure 6-1. Key Components on the controlCARD - Front SPRUJ29A – APRIL 2022 – REVISED JANUARY 2023 TMDSCNCD2800157 controlCARD Information Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 10: Figure 6-2. Key Components On The Controlcard - Back
C29-C44 ADC RC input filter capacitors: Optional capacitors, not populated by default, for the ADC input's RC filters. TMDSCNCD2800157 controlCARD Information Guide SPRUJ29A – APRIL 2022 – REVISED JANUARY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 11 DOWN position (default) – Internal voltage reference Note that additional software configuration is required to enable the ADC internal or external voltage reference. SPRUJ29A – APRIL 2022 – REVISED JANUARY 2023 TMDSCNCD2800157 controlCARD Information Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 12: Revision History
Section 3.1 ............................• Changed Section 3.2 ............................• Added Section 4.2.1 ............................• Changed S4 in Table 4-1 ........................... TMDSCNCD2800157 controlCARD Information Guide SPRUJ29A – APRIL 2022 – REVISED JANUARY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 13 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
