3.3.2

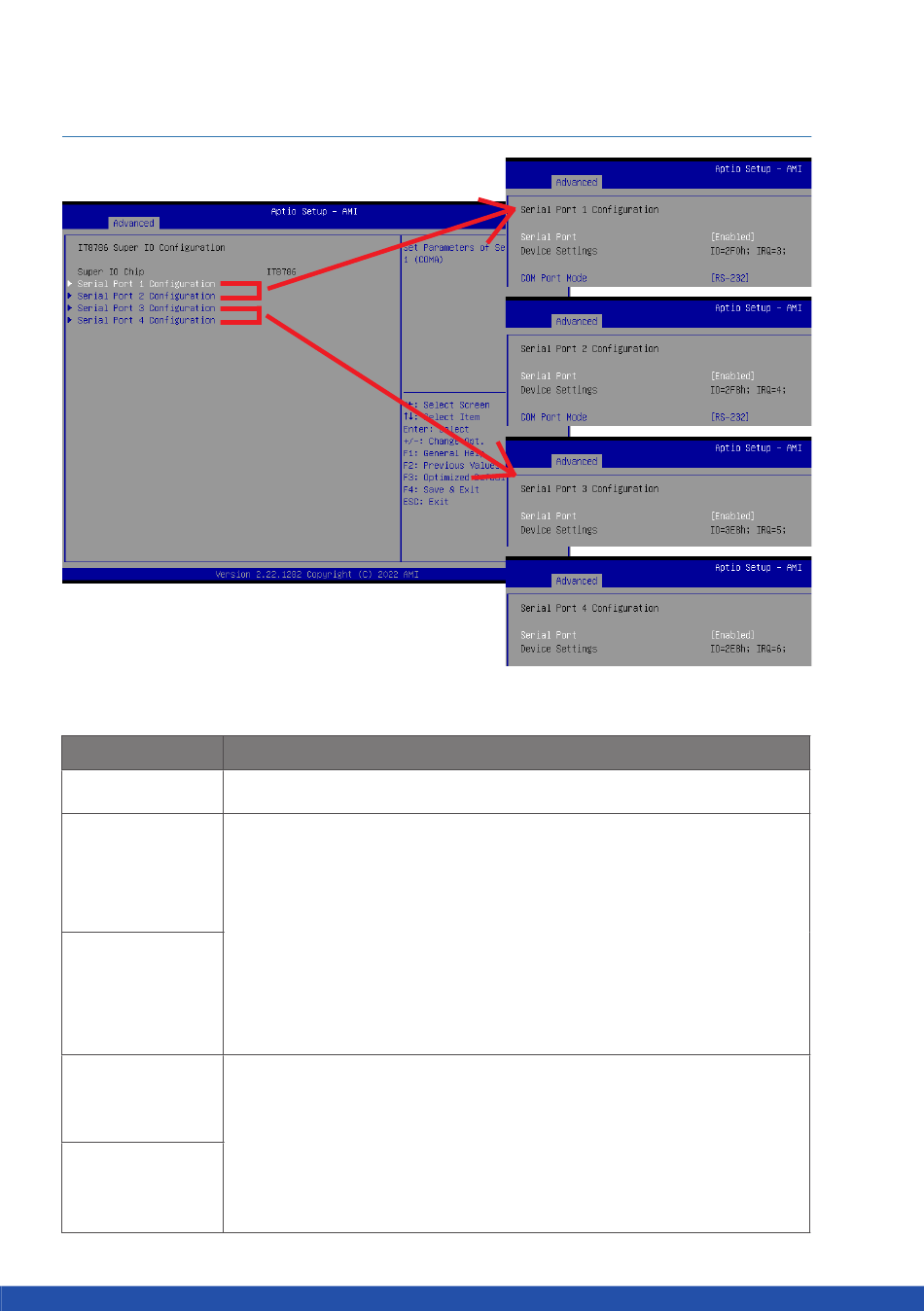

IT8786 Super IO Configuration

Item
Super IO Chip Shows Super I/O chip model
Press [Enter] to configure advanced items :
Serial Port 1
Serial Port :
Configuration
Enabled : Enables allows you to configure the serial port settings
Disabled : if Disabled, displays no configuration for the serial port
Device settings :
Display the specified Serial Port base I/O address and IRQ
Serial Port 2
Configuration
COM Port Mode :
Choose RS-232, RS-422, or RS-485 feature
Press [Enter] to configure advanced items :
Serial Port 3
Configuration
Serial Port :
Enabled : Enables allows you to configure the serial port settings
Disabled : if Disabled, displays no configuration for the serial port
Serial Port 4
Device settings :
Configuration
Display the specified Serial Port base I/O address and IRQ
Description
