DESCRIPTION
The DC2733 is a demonstration system for the
65V Dual Electronic Circuit Breaker with Current Monitors.
The LTC4249 provides dual independent 1.2A, 75mΩ
circuit breakers that can function independently or work
together in parallel. Each circuit breaker channel has its
own enable, ready, and IMON pins.

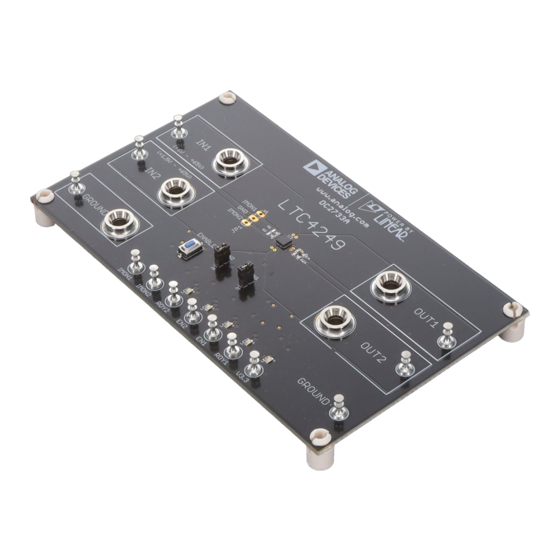

The DC2733 demo board gives access to both channels of
the LTC4249, including the independent RDY and IMON
outputs and the EN inputs. Resistors at the IMON pins set
the circuit breaker thresholds as well as the IMON current-
to-voltage gains. The IC draws power from the IN1 input.

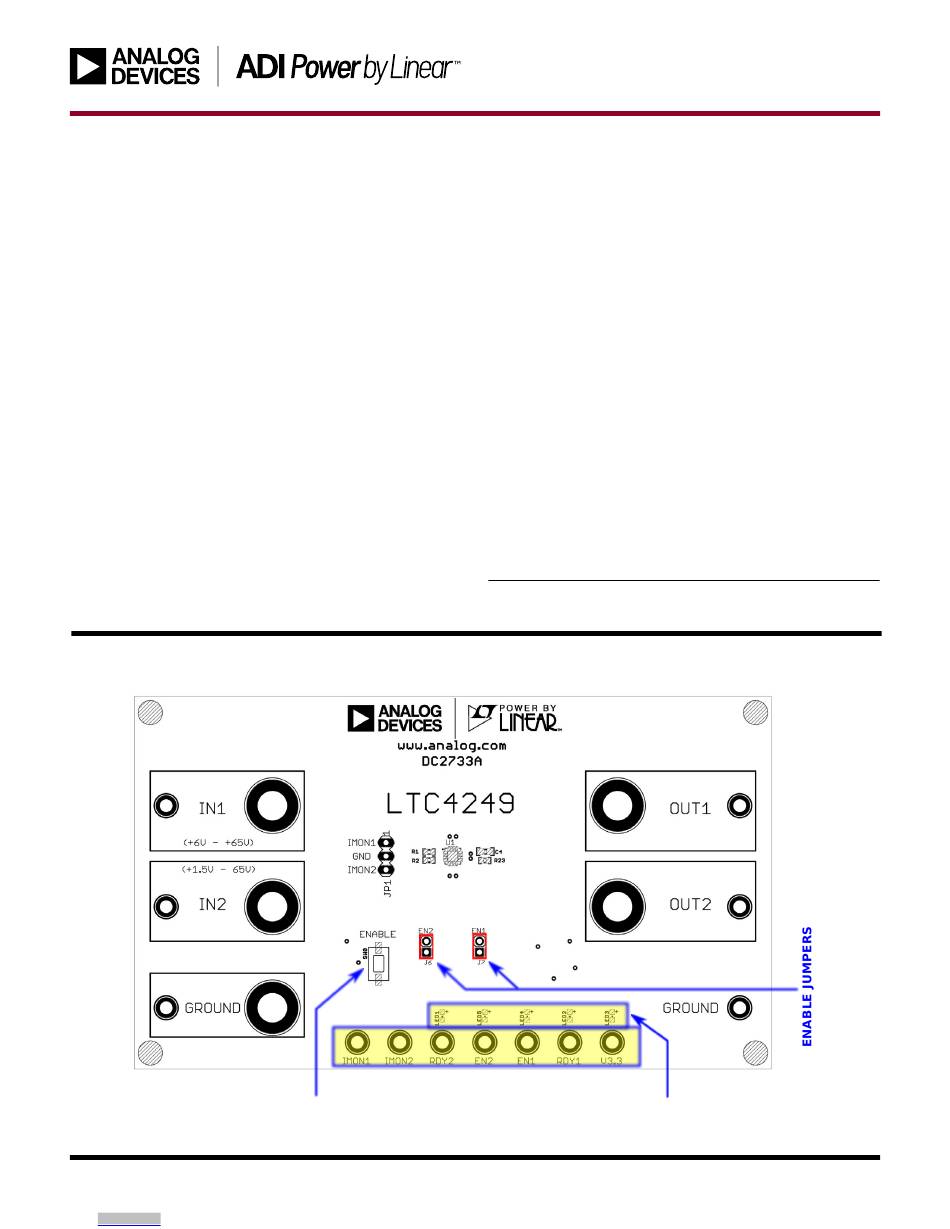

BOARD PHOTO
Arrow.com.
Downloaded from
65V Dual Electronic Circuit Breaker
LTC
®
SIGNAL ACCESS TURRETS
ON/OFF PUSHBUTTON
DEMO MANUAL DC2733A
with Current Monitors
4249,
DC2733 Board Features
• Demonstrate dual LTC4249 circuit breaker channels
• Monitor each channel current with IMON
• Gang multiple parallel channels for larger currents
• Convenient on-board pushbutton enable control
DC2733 Hardware Required
• DC2733 board
• Input power supply between 6V and 65V
• Two 1.2A loads
Design files for this circuit board are
All registered trademarks and trademarks are the property of their respective owners.
LTC4249
available.
LED INDICATORS
Rev. A
1
Advertisement
Related Manuals for Analog Devices DC2733A
Summary of Contents for Analog Devices DC2733A
- Page 1 DEMO MANUAL DC2733A LTC4249 65V Dual Electronic Circuit Breaker with Current Monitors DESCRIPTION The DC2733 is a demonstration system for the 4249, DC2733 Board Features ® 65V Dual Electronic Circuit Breaker with Current Monitors. • Demonstrate dual LTC4249 circuit breaker channels The LTC4249 provides dual independent 1.2A, 75mΩ...
-
Page 2: Performance Summary
DEMO MANUAL DC2733A PERFORMANCE SUMMARY Specifications are at T = 25°C PARAMETER CONDITIONS UNITS IN1 and OUT1 Operating Voltage Range Referenced to GROUND IN2 and OUT2 Operating Voltage Range Referenced to GROUND (INn - OUTn) Channel off. Reverse voltage not permitted. -
Page 3: Quick Start Procedure
RDY2 (LED1) Illuminates green when the RDY2 pin of the LTC4249 is high (active). On the DC2733A board there are two configuration jump- ers that connect the ENn inputs of the IC to the pushbutton V3.3 (LED3) Illuminates green when the V3.3 power rail is active (powered by IN1). - Page 4 DEMO MANUAL DC2733A QUICK START PROCEDURE It is also possible to use channels in parallel, as shown in Figure 2. Channels will share current, but remember that channel impedances are not perfectly matched, so cur- rents will share slightly unevenly. When the circuit breaker...
- Page 5 DEMO MANUAL DC2733A QUICK START PROCEDURE The IMON pin voltage represents the current flowing in use two switches in series, back-to-back, as shown in Figure 4. In this case the return current necessarily flows its channel. Attach a voltage meter or ADC to each IMON externally to the board, but the Kelvin GND connection is pin as shown in Figure 3.
-
Page 6: Schematic Diagram
DEMO MANUAL DC2733A SCHEMATIC DIAGRAM Rev. A Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... - Page 7 Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
- Page 8 Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
