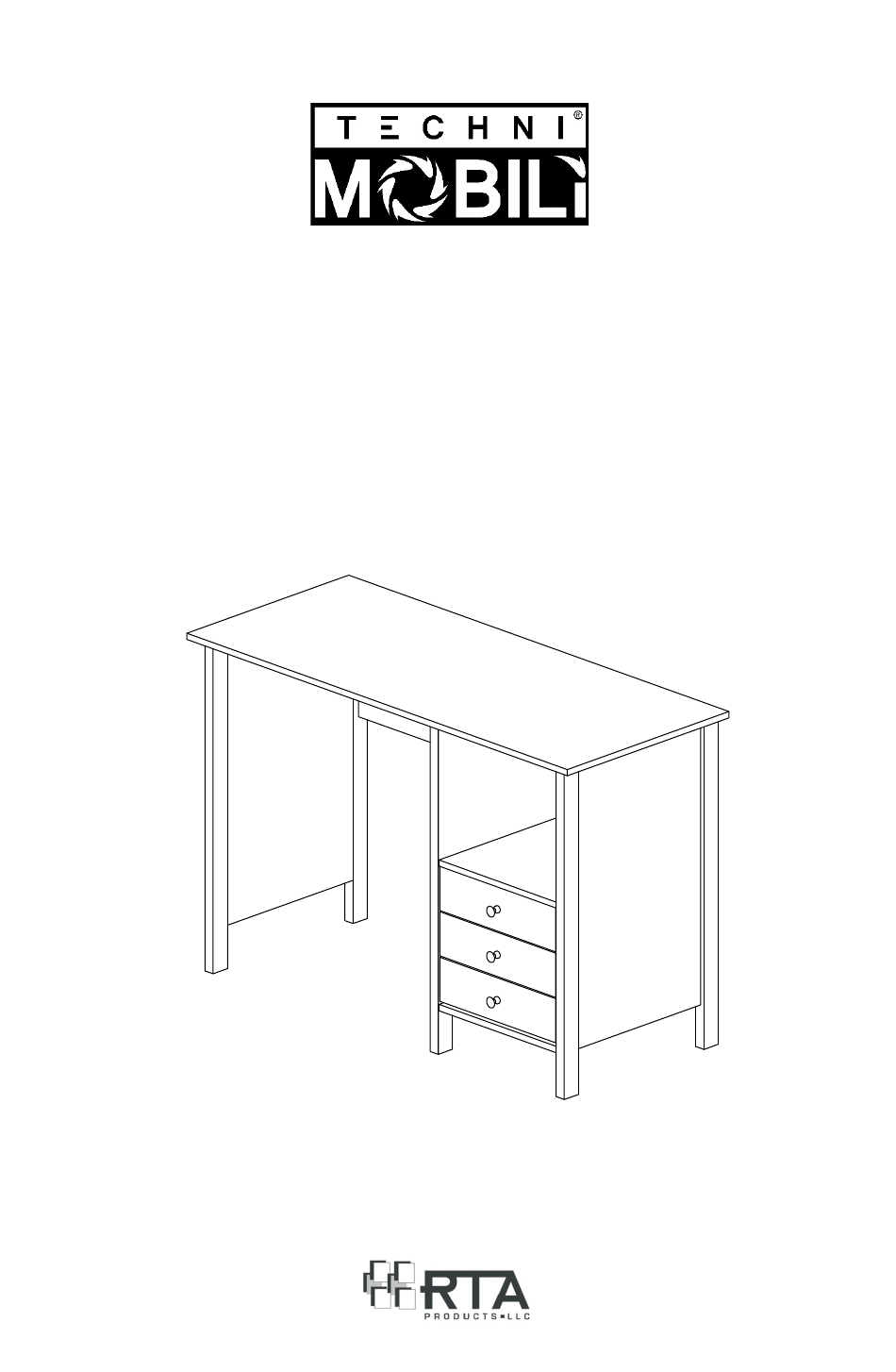

MODEL RTA-8407
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.FP-6606-0322-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Techni Mobili RTA-8407 and is the answer not in the manual?

Questions and answers

Related Manuals for RTA Techni Mobili RTA-8407

Summary of Contents for RTA Techni Mobili RTA-8407

  • Page 1 MODEL RTA-8407 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.FP-6606-0322-2...
  • Page 2 RTA-8407 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people. SAMPLE – DO NOT SCAN •...

  • Page 3: Main Parts List

    RTA-8407 MAIN PARTS LIST Tabletop Left back panel Right panel Left panel Shelf panel Middle panel Bottom panel Drawer left Drawer front panel panel Drawer back Drawer right Drawer bottom Right-lower Right-upper panel panel panel back panel back panel 15.5"x12.8"...
  • Page 4 RTA-8407 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
  • Page 5 RTA-8407 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...

  • Page 6: Assembly Steps

    RTA-8407 ASSEMBLY STEPS STEP 1 Use a wooden mallet (or hammer) to install the wooden dowels 1 into the indicated holes on panels B, C, D, E, F, G, I and J. Hardware: Dowels (NOT INCLUDED) STEP 2 • Use a screwdriver to install the bolts 2 into the indicated holes on panels A, C, D, E and H.
  • Page 7 RTA-8407 STEP 3 Grab all the sets of sliders 8 (total 12 pcs) and separate them into 2 groups according to their shape: - The “Flat” ones will be used on the next step. - The “L Shaped” will be used until step 15, set them aside.
  • Page 8 RTA-8407 STEP 5 • With the help of another person, Join the side panels C and E to back Hardware: panel B. Make sure the surface with the cam locks face towards the exterior. • Insert the cam locks 2 and use a screwdriver to turn them to lock the Cam lock pieces as explained in page 3.
  • Page 9 RTA-8407 STEP 7 Slide the right-lower-back panel N through the grooves of panels F and G and into the groove of E. STEP 8 Join the right panel D to panels F and G, insert the cam locks 2 and use a screwdriver to lock them as explained in page 3.
  • Page 10 RTA-8407 STEP 10 • With the help of another person, place the tabletop A over the unit. • Insert the cam locks 2 in panels C, D and E and use a screwdriver to Hardware: turn them to lock the pieces as explained in page 3.
  • Page 11 P.10 RTA-8407 P.10 STEP 14 STEP 13 • For each of the 3 For each of the 3 drawers, drawers, use a Hardware: Hardware: use a screwdriver to screwdriver to assemble the back panel assemble the handle 9 K to the side panels I and...
  • Page 12 P.11 RTA-8407 P.11 STEP 16 Use a screwdriver to attach the corner brackets 10 to the back of the unit Hardware: on its right side with screws 4 as shown. M3x16 Corner bracket (NOT INCLUDED) STEP 17 • Cover the cam locks with 6 on panels C, D and E.
  • Page 13 P.12 RTA-8407 P.12 ALL DONE! Give yourself a nice pat on the back. You did a great job!
  • Page 14 P.13 RTA-8407 P.13 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 88 Lbs. (40 Kg) 20 Lbs. (9 Kg) 11 Lbs. (5 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 15 "Defects" as used in this warranty, is defined as any imperfections that impair the use of the furniture or product. RTA Products LLC will replace any defective part, at its discretion, and without charge to the original purchaser other than the freight from the end consumer to RTA Products.
  • Page 16 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
