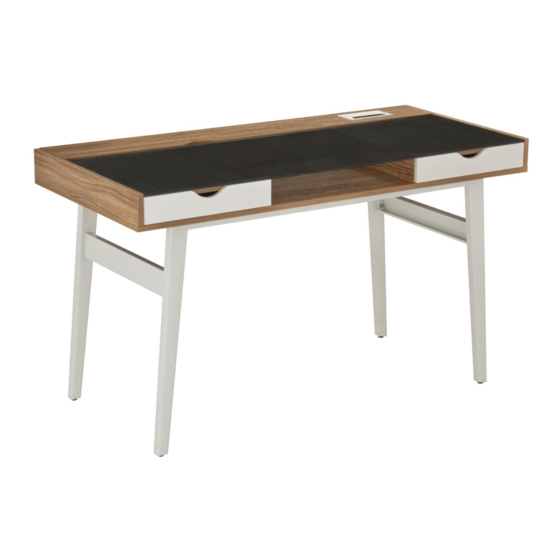

- Page 1 ASSEMBLY INSTRUCTIONS MODEL RTA - 2335 Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference. MODEL RTA-2335...
- Page 2 RTA-2335...
-
Page 3: Parts List
RTA-2335 PARTS LIST Short Grommet Main Structure Studs Side Structure Left Support Panel Connect Tube Connect Panel Left Panel... - Page 4 RTA-2335 Right Support Panel Right Panel Right Top Panel Left Top Panel Middle Support Panel Back Panel Glass Top Bottom Panel X2 SETS Left Drawer Front Drawer Right Panel Slider Drawer Left Panel Panel Right Drawer Front Hinges Drawer Bottom Panel...
-
Page 5: Screws List
RTA-2335 SCREWS LIST PART QTY. ITEM PART QTY. ITEM 3X15 MM 6X12 MM 6X25 MM Adhesive 6X25 MM Foam Tape 4X35 MM 5X40 MM 6X40 MM 3X12 MM... - Page 6 RTA-2335...
-
Page 7: Assembly Steps
RTA-2335 ASSEMBLY STEPS: SCREWS SCREWS 6X25 MM First screw bolts B to the Left & Right Drawer Front Panels (18 & 23), then assemble the Drawer Left & Right 4PCS Panels (19 & 20) as explained in page 5. Slide in the Drawer Bottom Panel (21). - Page 8 RTA-2335 Insert the Studs (3) to the Main Structures (1). Use screws C & H to assemble the Side Structures (4) and the Connect Tubes (5) to one of the Main Structures (1). SCREWS 6X25 MM 4PCS 6X12 MM 4PCS Use screws C &...
- Page 9 RTA-2335 5" 5" First screw bolts B to the Left & Right Top Panels (11 & 12), then assemble SCREWS SCREWS the Left & Right Support Panels (8 & 9) as explained in page 5. 6X25 MM Please pay attention to the direction of panel 8 & 9.
- Page 10 RTA-2335 P.10 SCREWS 3X15 MM Use screws A to assemble the Hinges (24) to the Back Panel (13). Assemble screws I to the Back Panel (13) and Middle Support 4PCS Panel (14) as shown. Please pay attention to the correct position of the parts on both panels.
- Page 11 RTA-2335 P.11 SCREWS 3X15 MM Use screws A to assemble the Hinges (24) to the Back Panel (13). 4PCS Assemble screws I to the Back Panel (13) and Middle Support Panel (14) as shown. Please pay attention to the correct position of the parts on both panels.
- Page 12 RTA-2335 P.12 First screw bolts B to the Left and Right Panels (7 & 10), then assemble the Left and Right Panels (7 & 10) to the assembled part in step A3/B3 as explained in page 5. SCREWS SCREWS 6X25 MM...
- Page 13 RTA-2335 P.13 Use screws F to assemble the Bottom Panel (15) to the Main Structures (1). ATTENTION: To avoid misalignments, screw loose and do not tighten them until all are in place! SCREWS 6X40 MM 4PCS First tear off the protective film of the Adhesive Foam Tapes (J), stick them to the Left and Right Top Panels (11 &...
- Page 14 RTA-2335 P.14 Use screws A to assemble the Long Top Panel (25) to the Hinges (24). SCREWS 3X15 MM 4PCS If the door does not close properly, you can adjust its position by unscrewing loose the corresponding screws on the hinges:...
- Page 15 RTA-2335 P.15 Insert the Short Top Panel (26) and the Long Grommet (27). Tighten any and all screws that are still loose, and ENJOY YOUR NEW UNIT!
- Page 16 CARE AND MAINTENANCE English - DO NOT EXPOSE THE SURFACES TO DIRECT SUNLIGHT OR EXTREME ENVIRONMENTAL CONDITIONS. ANY DAMAGE RESULTING FROM SUCH EXPOSURE IS NOT COVERED BY THE PRODUCT’S WARRANTY. - THE PREFERABLE METHOD TO CLEAN THE SURFACES IS TO WIPE THEM USING A SOFT CLOTH DAMPENED WITH A SOLUTION SOAP AND WATER, THEN DRY WITH A CLEAN TOWEL.
