Summary of Contents for RTA Techni Mobili RTA-8407

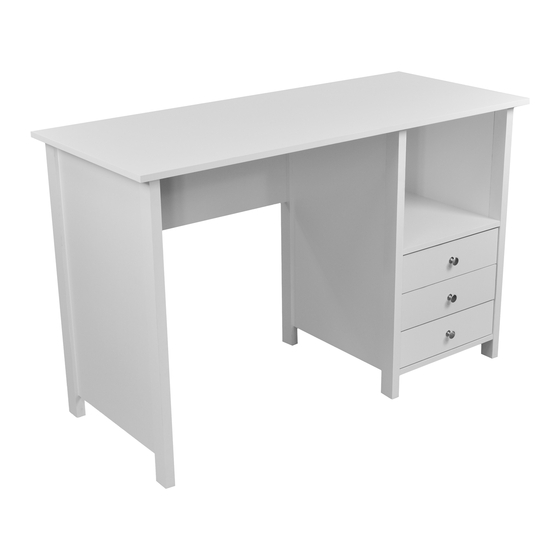

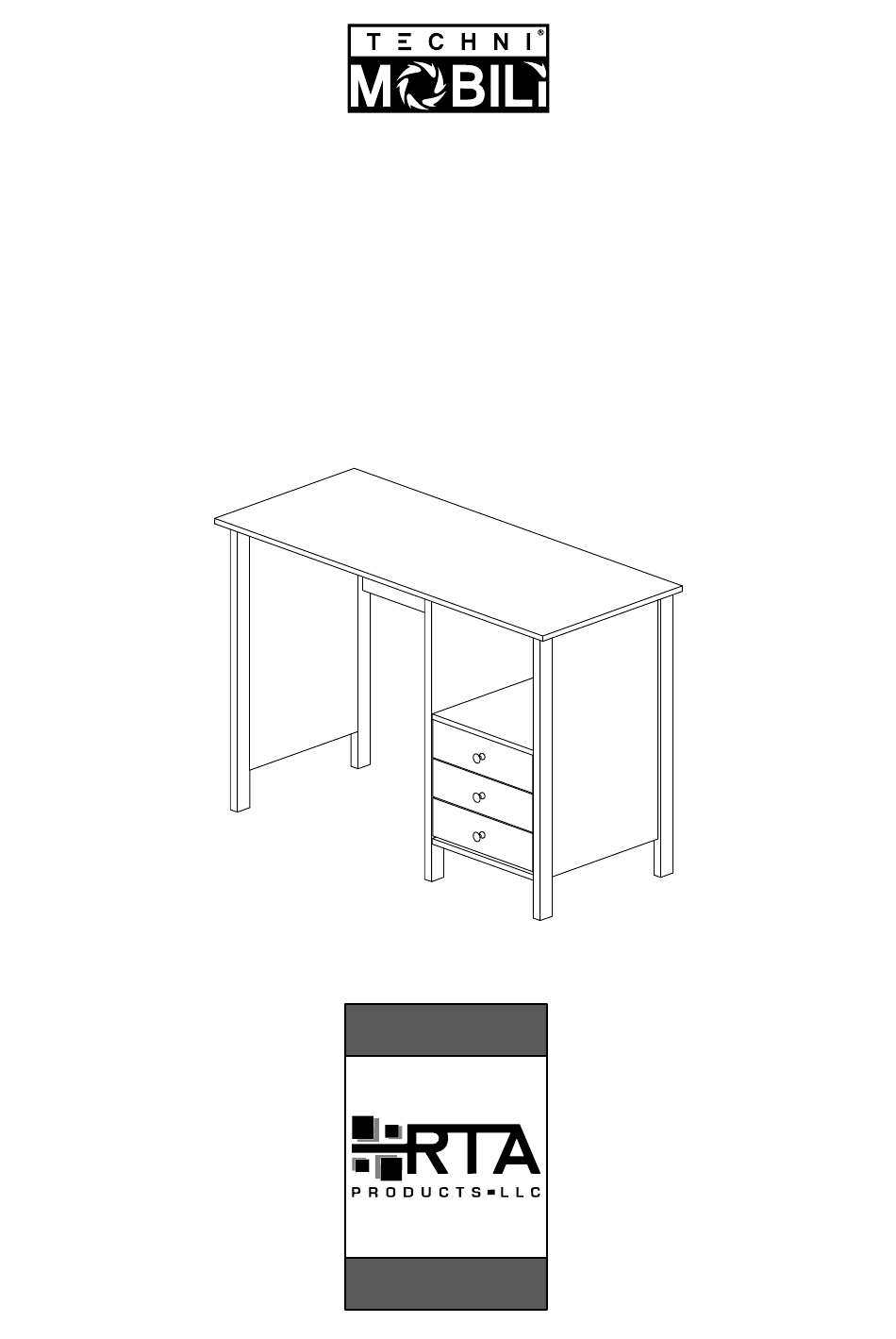

- Page 1 CONTEMPORARY DESK WITH 3 STORAGE DRAWERS MODEL RTA-8407 ASSEMBLY INSTRUCTIONS REV.FP-4-7530-0823 Thank you for purchasing our product...
-
Page 2: Main Parts List
& Replacement Parts within the Customers & AK-HI-PR orders: of all the parts and 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. charge, while the customer is responsible for shipping costs plus any International Please email us at: support@rtaproducts.com... - Page 3 RTA-8407 MAIN PARTS LAYOUT (For reference) ( F r o n t ) ( B a c k ) ( L e f ( B a c k ) ( L e f g h t ( R i ( F r o...
- Page 4 RTA-8407 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • The product is not reversible, it assembles ONLY as shown in the front page, with the drawers on the RIGHT side. The drawers cannot install on the LEFT side.
- Page 5 RTA-8407 THE ASSEMBLY STEPS START ON NEXT PAGE CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.
-
Page 6: Assembly Steps
RTA-8407 ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 With a hammer or wooden/rubber mallet, install the dowels 1 into the indicated Hardware holes on panels B, C, D, E, F, G, I and J. - Page 7 RTA-8407 STEP 2 • Use a screwdriver to install the bolts 2 into the indicated holes on panels A, C, Hardware D and H. Bolts Innermost Glides Tools (Not included) A, C & D c k ) ( B a...
- Page 8 RTA-8407 STEP 3 • Grab all 3 sets of sliders 8 (total 12 pcs) and separate them according to their Hardware shape: M5x8 • The "Flat" ones will be used on this step. (Euro) • The "L shaped" (their profile looks like an "L") won't be used until step X, so ( L e f t ) set them aside.
- Page 9 RTA-8407 STEP 4 • With the pieces positioned upside-down and as shown, join the panels C and Hardware E to panel B with cam locks 2 as explained in the Cam Lock Tutorial Page. Cam lock Tools (Not included) t t o m...
- Page 10 RTA-8407 STEP 6 • First insert the right-lower board N through the grooves of panels F and G, and This step into the groove of panel E. requires of 2 persons • Then assemble the right panel D to panels F and G with cam locks 2 as Hardware explained in the Cam Lock Tutorial Page.
- Page 11 RTA-8407 P.10 P.10 STEP 7 • Insert the right-upper board M through the grooves of panels E and D, and into This step requires of the groove of panel F. 2 persons INSERT M Hardware Cam lock M3x16 Cover Bracket Tools (Not included) •...
- Page 12 RTA-8407 P.11 P.11 STEP 8 For each of the 3 drawers: Hardware • Assemble the side panels I and J to the front panel H in their respective sides with cam locks 2 as explained in the Cam Lock Tutorial page.
- Page 13 RTA-8407 P.12 P.12 STEP 10 Insert the drawers into the unit with their fronts at angle facing down, and start with the bottom, then middle, top The wheels from the drawer must slide in the middle of the sliders, not on top on them.
-
Page 14: Weight Limits
RTA-8407 P.13 P.13 WEIGHT LIMITS 88 Lbs (40 Kg) 20 Lbs (9 Kg) 11 Lbs (5 Kg) WARNINGS • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions. - Page 15 RTA Products LLC will replace any defective part, at its discretion, and without charge to the original purchaser other than the freight from the end consumer to RTA Products.
