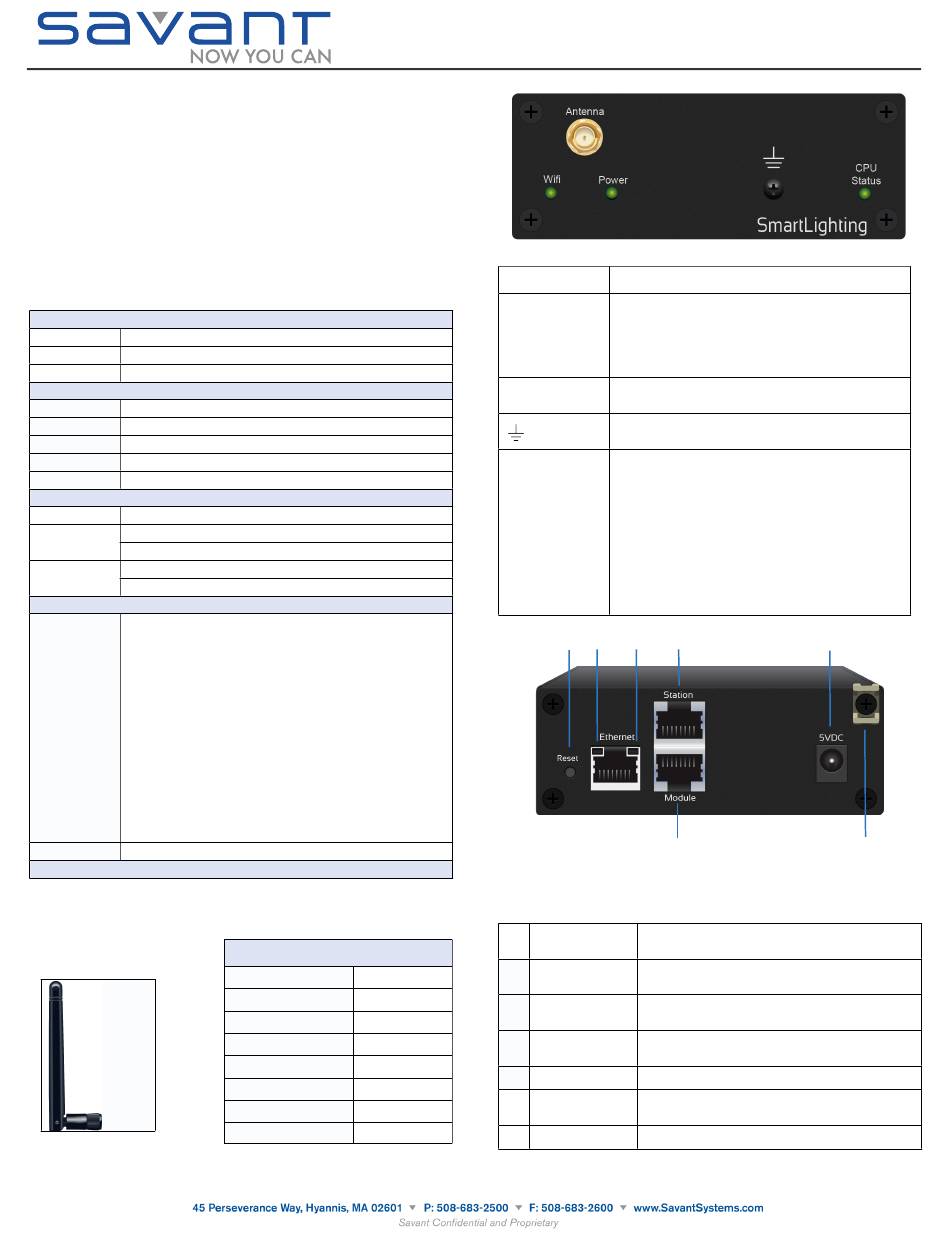

Savant SmartLighting 2 Quick Reference Manual

The Savant® SmartLighting 2 controller with Wi-Fi (SSL-W002) Quick Reference Guide provides
all the steps necessary to install the SSL-W002. The SSL-W002 supports Wi-Fi using the IEEE
802.11 b/g/n standard.
Box Contents
(1) SSL-W002
(1) Installation Kit (075-0153-xx):
(1) Power Supply 5V DC 2.5 Amps (025-0098-xx)
(8) Screws #6 x 1/4 Phillips (039-0143-xx)
(2) Side mount brackets (071-0625-xx)
(1) Antenna with SMA connector (045-0137-xx)
(1) Cable Tie-4 inch (014-0071-xx)
(1) Quick Reference Guide (this document)
Optional Components
SmartConnect Accessory (SCA-CONF or SCA-CONFL)
SmartConnect App
SmartConnect Micro USB-B to RJ-45 Adapter
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Maximum BTUs 10 BTUs/hour
Dimensions and Weight Dimensions and Weight
Height 1.59 in/4.04 cm
Width 4.32 in/10.96 cm
Depth 6.50 in/16.51 cm
Weight 3.00lb/1.36kg
Rack Space 1U
Power Power
Input Power 5V DC, 120-240V AC, 50/60 Hz
1.3 watts at 5V DC
Nominal Power Nominal Power
1.6 watts at 120V DC
2 watts at 5V DC
Maximum Power Maximum Power
3 watts at 120V DC
Compliance Compliance
FCC Part 15 | CE Mark | C-Tick
FCC ID: Q0Q-WF111 | IC ID: 5123A-BGTWF111
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications of this product, not approved by
manufacturer will void the user's authority to operate the equipment.
Safety and
This device complies with Industry Canada license-exempt RSS
Emissions
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
RoHS Compliant
Minimum Requirement: Release da Vinci 5.2.2 Minimum Requirement: Release da Vinci 5.2.2
Antenna
The antenna is a 2.4 -2.5 GHz, dipole (radio) 2 dBi (decibel isotropic) SMA (SubMiniature
Version A)with reverse polarity. It is field-replaceable.
Savant SmartLighting 2 with Wi-Fi™
Quick Reference Guide
Specifications Specifications
Gain + 2 dBi
Impedance 50 ohms
Type Dipole
Polarization Linear Vertical
VSWR
≤ 2.5：1
Frequency ~2400-2500 MHz
Weight 13 grams
Size 105 mm x 10 mm
(SSL-W002)

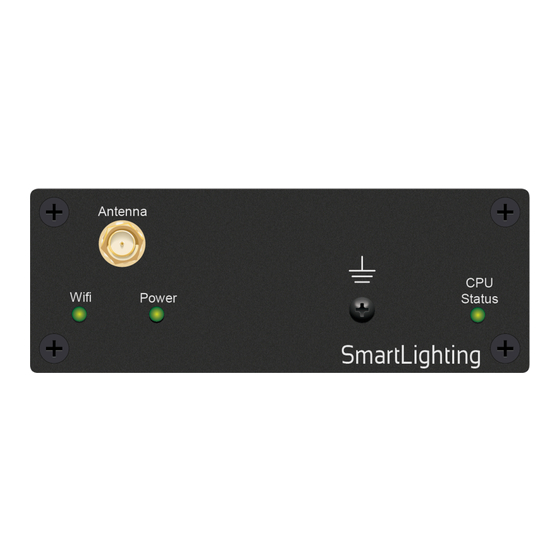

Front View of SSL-W002
Antenna
Wifi LED
1 2
Power LED
CPU Status LED
2
1
Rear View of SSL-W002
NOTE: The SSL-W002 Station port defaults to RS-422 but is configurable to RS-232 by a
Savant dealer.
1 Reset Button
Ethernet
2
Link/Activity LED
3 Ethernet Speed LED
4 Station
5 5VDC
6 Module
7 Cable Tie Mount
SMA connector for Antenna.
Green indicates the SSL-W002 is configured on the network.
Green flashing indicates Access Point network is active.
Off indicates the SSL-W002 is resetting or is booting the
embedded firmware.
Red indicates the configured network cannot be found.
Red flashing indicated the network is found but unable to join the
network due to incorrect credentials.
3 4
Green indicates power.
Off indicates no power.
Ground Connector (Optional)
Connect this terminal to a suitable ground surface.
Green indicates the Host has established communications with
the SSL-W002
Green flashing indicates the SSL-W002 is ready (running with
DHCP or static IP address), but the Host has not established
communications with the SSL-W002.
Off indicates the SSL-W002 is resetting or is booting the
embedded firmware.
Red indicates the Host has determined the firmware needs to be
updated, but a problem occurred during the process that will
initiate a reset.
Red flashing indicates the firmware is running, but has not
received a DHCP IP Address.
Amber indicates the Host is currently updating the firmware.
Amber flashing indicates the SSL-W002 has a valid link-local IP
Address and is waiting to connect to the Host.
6
3 4
6
Resets to factory default DHCP mode.
Press and hold the rest button for 5+ seconds.
For future use.
For future use.
Defaults to RS-422 for communication with the SKL-4000.
Provides 5V DC input power
RJ-45 port used to transmit and receive serial binary data
transmission to the bus. Defaults to RS-422 and used to
communicate to lighting modules in the Module Enclosures.
Holds the power cable with the cable tie.
009-0999-01
SSL-W002-00
5
5
7
092313
