Savant SmartControl 25 Quick Reference Manual

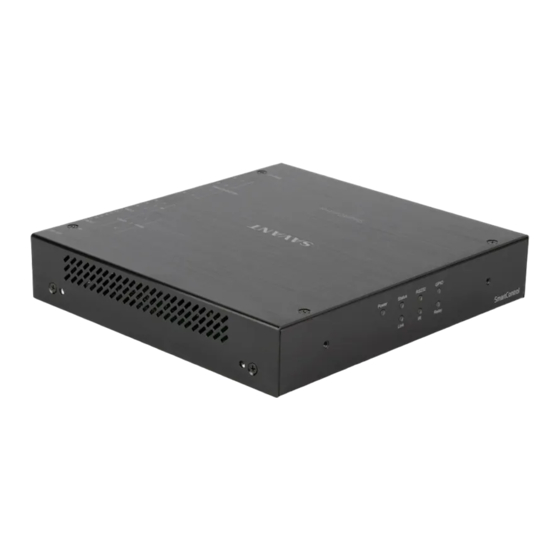

SmartControl 25 Controller
Quick Reference Guide
Box Contents
(1) SmartControl 25 (SSC-P025-11)
(1) Installation Kit: (075-0141-xx)
(2) 9-pin Screw Down Plug-in Connectors (028-9353-xx)
(2) 6-pin Screw Down Plug-in Connectors (028-9352-xx)
(1) 12V DC 1.25A Power Supply (025-0163-xx)
(1) 6 ft Power Cord (014-0035-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% RH (non-condensing)
3 cubic feet per minute (CFM)
Cooling
recommended
Maximum BTU 51 BTU/hour
Dimensions and Weight Dimensions and Weight
Height 1.52 in (3.86 cm)
Width 7.99 in (20.29 cm)
Depth 7.60 in (19.30 cm)
Weight 6 lb (2.72 kg)
Rack Space 1U
Power Power
Power over Ethernet
IEEE 802.3af
(PoE)
Power Supply 12V DC 1.25A
(When not using PoE) 120-240V AC 50/60 Hz
Maximum Power 15 Watts
Compliance Compliance
Safety and Emissions FCC Part 15 | CE Mark | C -Tick
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 4.3.3
SSC-P025-11 | 009-1259-02 | 151023 SSC-P025-11 | 009-1259-02 | 151023
Copyright © 2015 Savant Systems, LLC

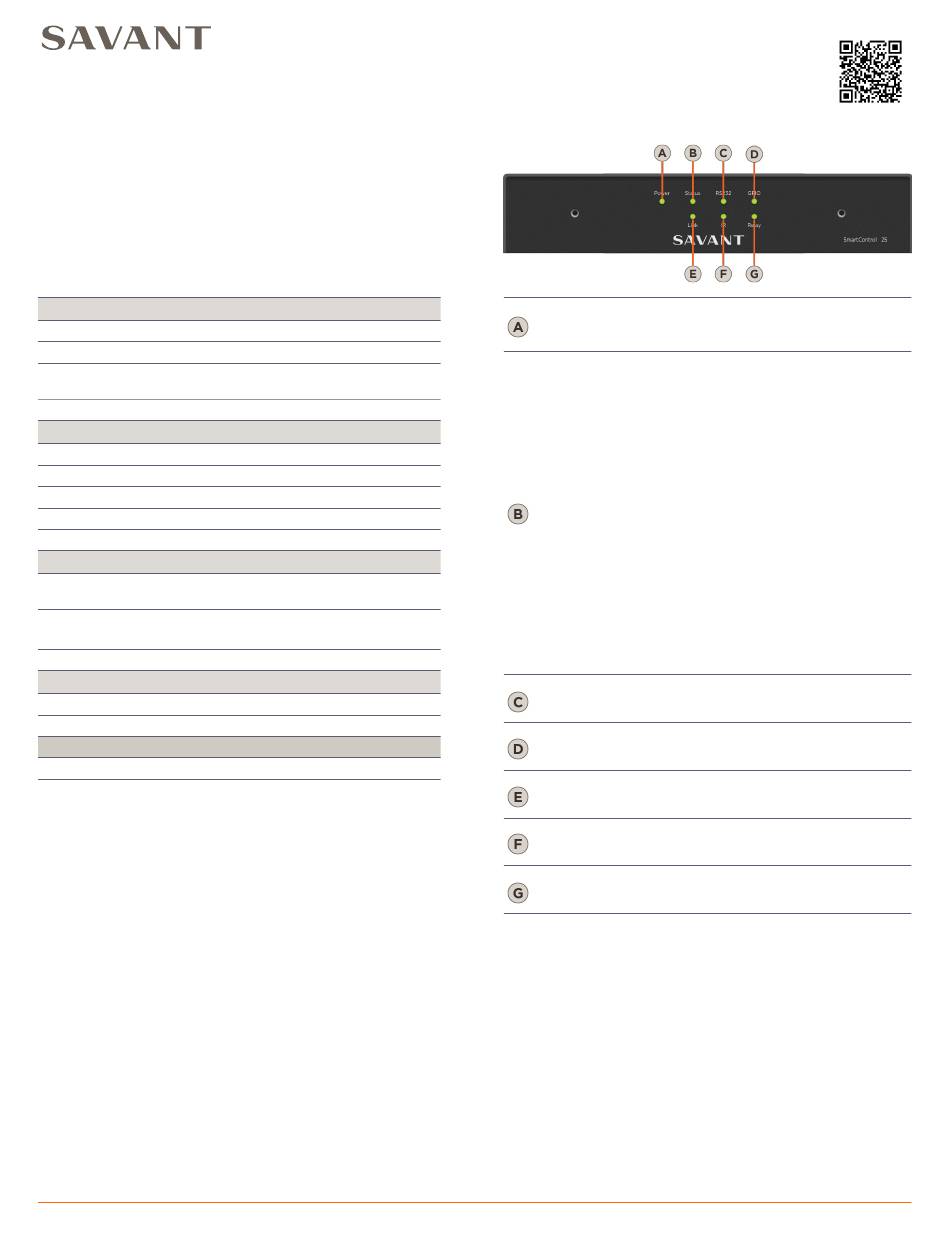

Front Panel
Green: SSC-P025 has adequate power and is
operating normally.
Power LED
Off: SSC-P025 is not receiving power.
Green: Controller is operating normally.
Green Flashing: Controller has a DHCP or static IP
Address. Connecting to host.
Off: Unit is rebooting
Red: Firmware update has failed and unit will be
rebooted.
Red Flashing: No IP Address/Connecting to
Network.
Amber: Firmware update in process.
Amber Flashing: Controller has a link-local IP
Status LED
Address and is connecting to the host. This
applies to controllers that are not connected to
an active router and may be connected directly to
a host.
Hardware Failure
Status LED indication will be interrupted every 3
seconds with a solid Red indication. For example,
if the LED is flashing Green when a hardware
failure occurs, the LED will flash Green, solid Red,
etc., in 3 second intervals.
Green: RS-232/422/485 serial port activity.
RS-232 LED
Off: No RS-232/422/485 serial port activity.
Green: GPIO port activity.
GPIO LED
Off: No GPIO port activity.
Green: Ethernet port activity.
Link LED
Off: No Ethernet port activity.
Green: IR port signal activity.
IR LED
Off: No IR port activity.
Green: Relay port activity.
Relay LED
Off: No Relay port activity.
1 of 4
