Savant SmartControl 25 Quick Reference Manual

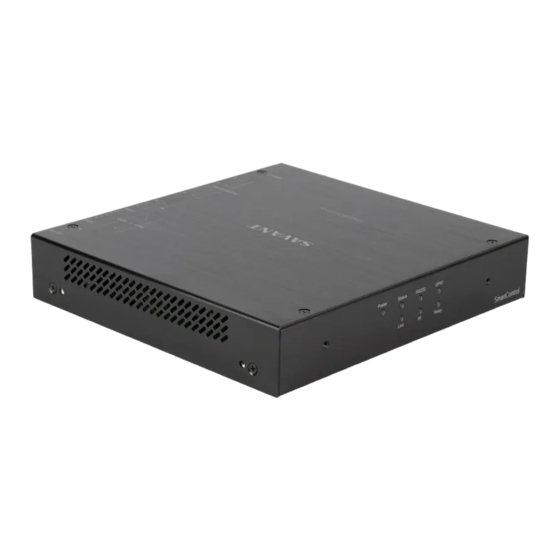

SmartControl 25 with PoE
Quick Reference Guide
Box Contents
(1) SmartControl 25 with PoE (SSC-P025-11)
(1) Installation Kit: (075-0141-xx)
(2) 9-Pin Screw Down Plug-in Connectors (028-9353-xx)
(2) 6-Pin Screw Down Plug-in Connectors (028-9352-xx)
(1) 12V DC 1.5A Power Supply (025-0166-xx)
(1) Product Info and Regulatory Statement (009-1729-xx)
Optional Accessories
(Available on the Savant Store)
– RJ-45 to DB9 adapters
– DB-9 mini gender changers
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Cooling 2 cubic feet/minute (CFM) recommended
Maximum BTU 41 BTU/hour
Dimensions and Weights
Height
1.52 inch
SSC-P025-11
(3.86 cm)
3.25 inch
Shipping
(8.26 cm)
Power Requirements
Power over
IEEE 802.3af
Ethernet
12V DC 1.5A
Power Supply
(not using PoE)
120-240V AC 50/60 Hz
Max Power
12 Watts
(Consumption)
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS
SSC-P025-11 | 009-1259-04 | 180830 SSC-P025-11 | 009-1259-04 | 1808
Copyright 2018 Savant Systems, LLC Copyright 2018 Savant Systems, LLC
Width Length Weight
7.99 inch 7.60 in 3.0 lbs
(20.29 cm) (19.30 cm) (1.36 kg)
10.5 inch 15.75 inch 4.0 lbs
(26.67 cm) (40.01 cm) (1.81 kg)
CE Mark C-Tick
da Vinci 4.4.3

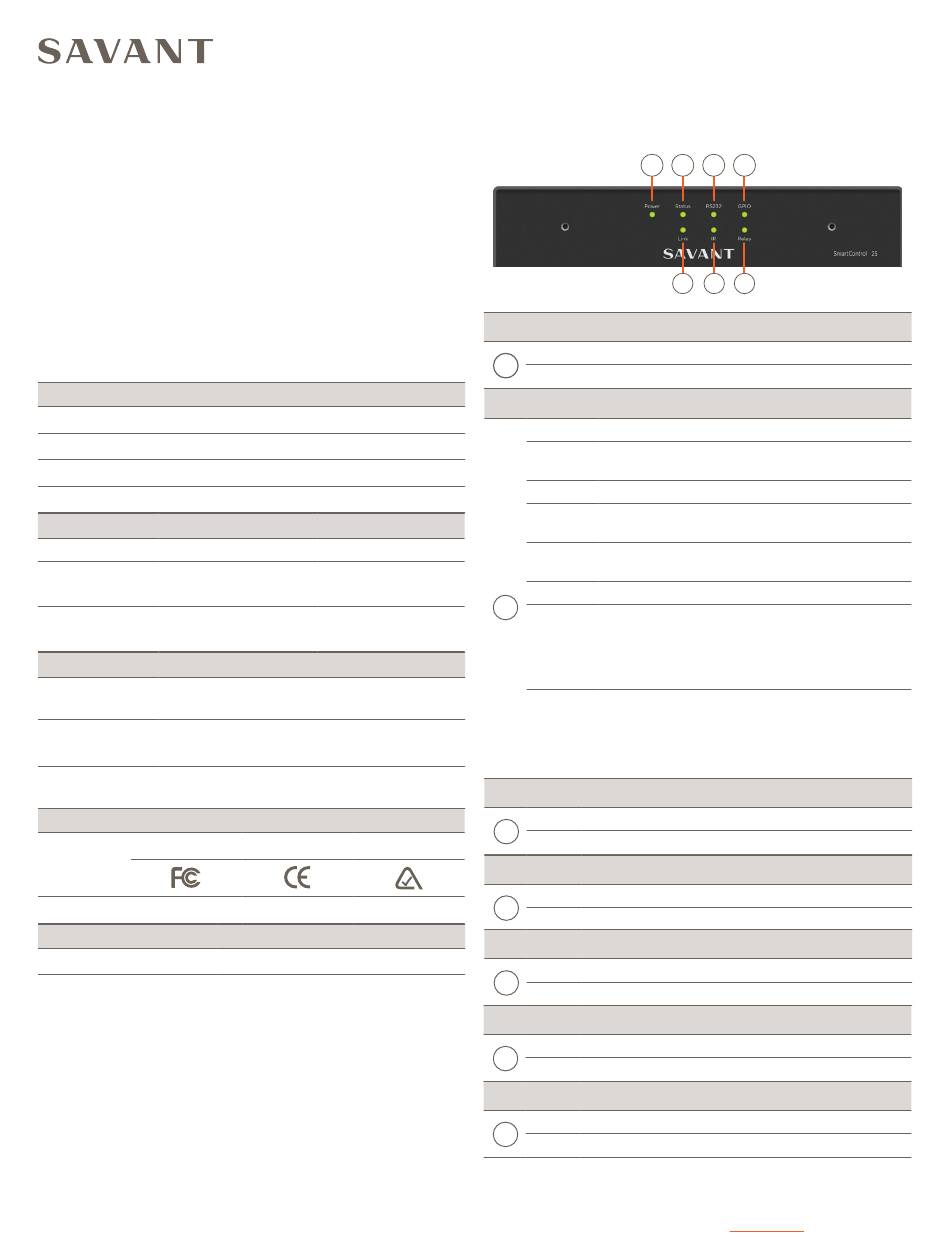

Front Panel Descriptions
Power LED
Green Has adequate power and is operating normally
A
Off Not receiving power
Status LED
Green Controller is operating normally
Green Controller was assigned an IP Address and is
Blinking trying to connect to the system Host.
Off
Controller is rebooting
A firmware update has failed and controller
Red
will reboot.
Red
No IP Address assigned to controller and con-
Blinking troller is trying to connect to a network.
Amber Firmware update in process
B
Controller has a link-local IP Address and is
connecting to the Host. This applies to con-
Amber
trollers that are not connected to an active
Blinking
router and may be connected directly to a
system Host.
HARDWARE FAILURE
The Status LED will flash red once every 3 seconds. For
example, if the LED is blinking green, when the failure oc-
curs, the LED will continue to blink green and every three
seconds flash red once.
RS-232 LED
Green Serial port activity - (RS-232/422/485)
C
Off No serial port activity
GPIO LED
Green GPIO port activity
D
Off No GPIO port activity
Link LED
Green Ethernet port activity
E
Off No Ethernet port activity
IR LED (infrared)
Green IR port signal activity
F
Off No IR port activity
Relay LED
Green Relay port activity
G
Off No Relay port activity
1 1 of of 4 4
A B C D
E F G
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
